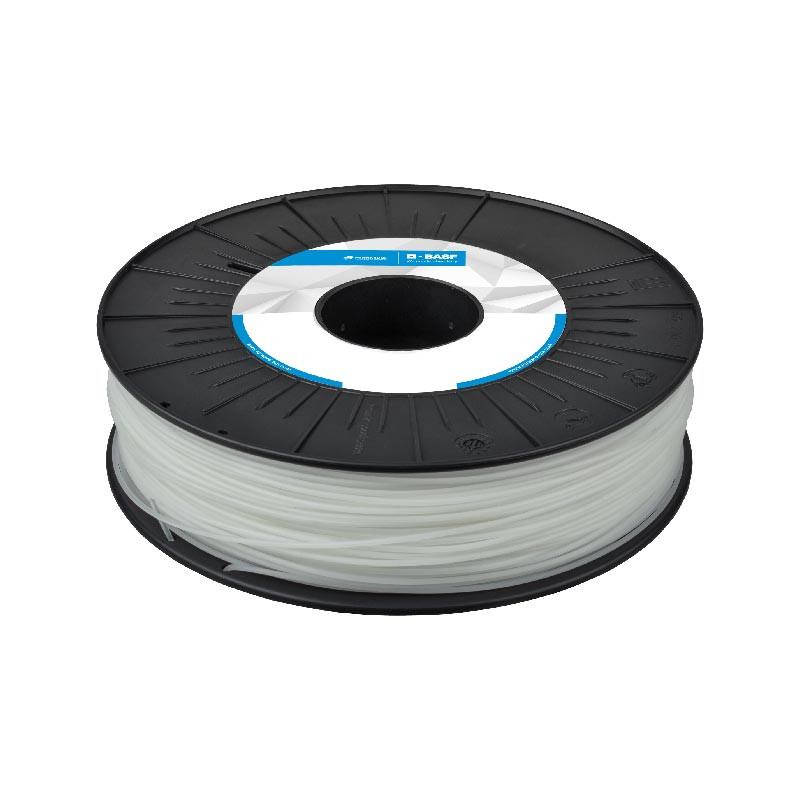

Ultrafuse PA BASF - 1.75mm - 750g - Natural
Ref. PA-4501a075
The Ultrafuse PA filament is a high-quality Nylon Copolyamide 6/66 developed by BASF from its Ultramid® range.
The Ultrafuse PA filament is a professional-grade Nylon that can be used in many demanding technical applications. It stands out for its high mechanical strength, rigidity, and thermal stability.
€49.90 excl. VAT
Our experts are at your service to answer your questions and provide advice at info@polyfab3d.com.
Delivery within 48/72 hours
Order before 1pm. Same day shipping
Free delivery
Free delivery near you from €69.90
Premium support
Our teams are on hand to answer all your questions
Over 3500 products
A wide choice of products from the biggest brands
Ultrafuse PA: a High-Quality Nylon 6/66
Ultrafuse PA filament is the result of BASF’s efforts to integrate Ultramid® into the world of 3D printing. It’s a blend of PA6 and PA66 with intermediate viscosity that offers excellent mechanical and thermal properties.
Ultrafuse PA provides greater impact and wear resistance compared to standard PA6 or PA66. It is ideal for manufacturing industrial parts in fields such as engineering, automotive, and aerospace.
Main Advantages of BASF Ultrafuse PA Filament
Mechanical Strength: Ultrafuse PA has excellent mechanical resistance and performs well against impact, wear, and deformation.
High-Rigidity Material: You can print semi-flexible or highly rigid parts depending on the thickness of the printed model.
Low melting temperature: Ultrafuse PA filament has a relatively low melting point, making it printable on many professional 3D printers.
Ultrafuse PA Printing Guidelines
Ultrafuse PA is a PA6/66 Nylon that is relatively easy to print. It requires a printer capable of extruding filament at 220–250°C and a heated bed that can reach 120°C. We recommend using an adhesive to enhance Ultrafuse PA’s bed adhesion during printing.
This filament is highly moisture-sensitive, so we recommend storing it in a dry box such as a Polybox and drying it thoroughly if needed.
- 🎯 We collaborate with businesses.
- 📦 Stock in Europe
- 🚚 Ships within 24 hours
- 🔐 Secure payments
- 🔙 14 days to change your deww
- 📱 Need advices ? Contact technical support
Specifications for Ultrafuse PA BASF - 1.75mm - 750g - Natural
Technology / Product
- Technology
- FDM
- Material
- PA
- Visual Appearance
- Opaque, Brilliant
- Diameter
- 1.75 mm
- Sensitivity to humidity
- Strong
- Application
- Prototyping, Functional part
- Odour
- Yes
- Harmful
- Yes
- Level of difficulty
- Expert
- Brand
- BASF
- Type of product
- 3D Filament
- Colour
- Natural
- Net weight
- 750 g
Technical values
- Glass transition temperature
- 49 °C
- Deflection temperature under load (0.45 MPa)
- 135 °C
- Deflection temperature under load (1.8 MPa)
- 65 °C
- Temperature VICAT
- 172 °C
- Izod
- 45 kJ/m² of energy
- Charpy
- 29 kJ/m² of energy
- Resistors
- Mechanical engineering, Wear and tear
- Tensile modulus
- 2419 Mpa
- Flexural modulus
- 2051 Mpa
- Tensile yield strength
- 62 MPa
- Maximum elongation at break
- 9.6 %
- Density
- 1.11 g/cm3
Extrusion
- Nozzle type
- Brass
- Type of consumable
- Non-proprietary filament (open system)
- Min. plateau temperature
- 90 °C
- Max. tray temperature
- 120 °C
- Min. extrusion temperature
- 220 °C
- Max. extrusion temperature
- 250 °C
- Min. speed
- 30 mm/s
- Max. speed
- 60 mm/s
- Minimum nozzle diameter
- 0.2 mm
- Bowden compatibility
- Yes
- Warping sensitivity
- Strong
- AMS compatible
- No
Specific equipment
- Closed printing enclosure
- Yes
- Filtration
- HEPA, Coal
Installation / Prerequisites
- Type
- Filament on spool
- Box supplied
- Yes
- Coil material
- Plastic
