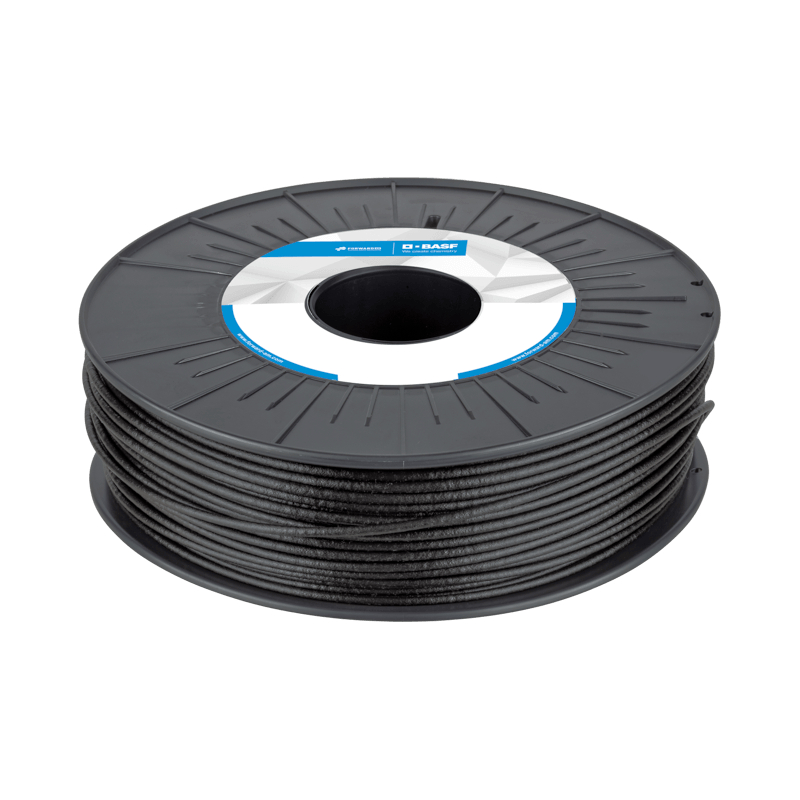

BASF Ultrafuse PA6 GF30 - 1.75mm - 700g

Name: BASF Ultrafuse PA6 GF30 - 1.75mm - 700g
Brand: BASF
SKU: PA6-4505a070
Price: 90.9 EUR
Availability: OutOfStock

Ref. PA6-4505a070

The BASF Ultrafuse PA6 GF30 is a technical filament based on Nylon (PA6) reinforced with 30% glass fibers. Designed for demanding applications, it stands out for its increased rigidity, excellent heat resistance, and great dimensional stability.

This material is particularly suited for the manufacture of structural parts, mechanical supports, or elements subjected to thermal stress. Good control of the printing process is required, with a heated bed and a closed chamber recommended to fully exploit the material's potential.

Loaded with 30% glass fiber
High mechanical rigidity
High thermal resistance
Resistance to UV rays
Chemical resistance

€75.75 ^{excl. VAT}

Out of stock Free shipping

From 2, only €73.48 / unit. 3%

From 5, only €71.96 / unit. 5%

From 10, only €69.69 / unit. 8%

Quantity

Forward AM BASF Ultrafuse PA6 GF30

The BASF Ultrafuse PA6 GF30 is a Nylon filament reinforced with glass fibers, developed to meet the requirements of industrial environments. The base polymer, PA6, is recognized for its strength and wear resistance. The addition of 30% glass fibers significantly improves rigidity and dimensional stability, while reducing deformation during cooling. This material is used for the production of functional components, robust tools, or technical replacement parts.

Its printing behavior remains stable, but it requires precise adjustments to take advantage of its optimal mechanical properties. The filament is compatible with most 3D printers equipped with a heated bed and a hardened nozzle.

High Mechanical Rigidity

Thanks to its glass fiber load, the PA6 GF30 has superior mechanical resistance compared to standard Nylon. Its internal structure allows it to withstand high stresses without significant deformation. Printed parts maintain their shape and performance even under prolonged load conditions. This level of rigidity makes it a preferred material for structural elements, mechanical supports, or fastening parts subjected to significant efforts. Its slightly matte texture also enhances the professional appearance of finished parts.

Remarkable Thermal Resistance

The PA6 GF30 maintains its properties up to 150 °C continuously, with minimal deformation. This thermal stability allows its use in high heat environments, such as engine compartments, production tools, or jigs subjected to friction. The combination of polyamide and glass fibers limits thermal creep and improves long-term resistance. The material also resists many chemical agents, further expanding its industrial application field.

Long-lasting Dimensional Stability

The presence of glass fibers ensures excellent dimensional stability, reducing shrinkage and warping phenomena commonly observed in pure polyamides. The parts obtained have constant precision, even for large volumes. This characteristic makes the PA6 GF30 from Forward AM particularly suitable for the manufacture of mechanical assemblies requiring precise adjustment or for the mass production of functional prototypes. The material's durability over time guarantees stable performance, even in humid environments.
