Elegoo OrangeStorm Giga

Ref. 50.201.019300

Elegoo Orangestorm Giga, a revolutionary large-format 3D printer offering precision and speed. Perfect for everyone, this colossus bridges the gap between leisure and professional use.

Large printing area 80 x 80 x 100 cm
Mobile touch LCD screen
Printing speed up to 300 mm/s
Easy to use

Exclusive: For any purchase of this printer on our website, we offer a two-year warranty with premium support.

€2,083.33 ^{excl. VAT} €2,604.16 ^{excl. VAT} - 20%

Out of stock

More options

Quantity

Elegoo OrangeStorm Giga

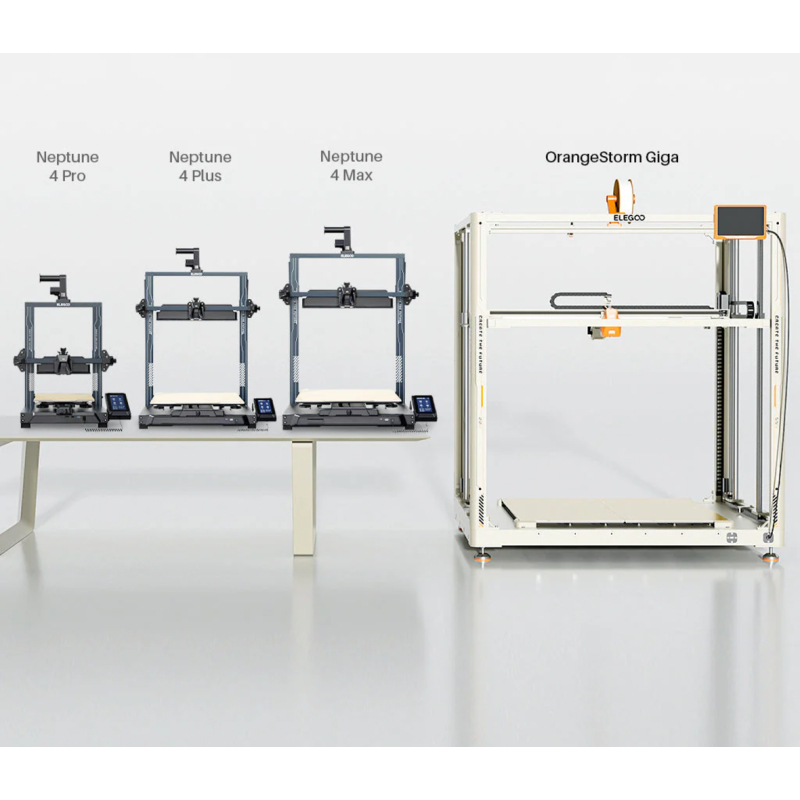

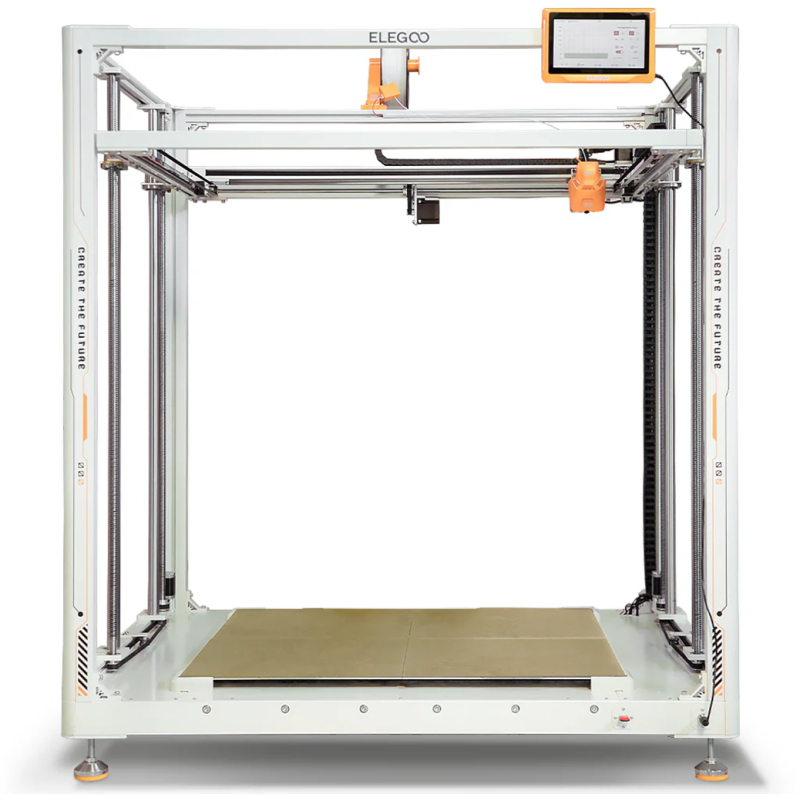

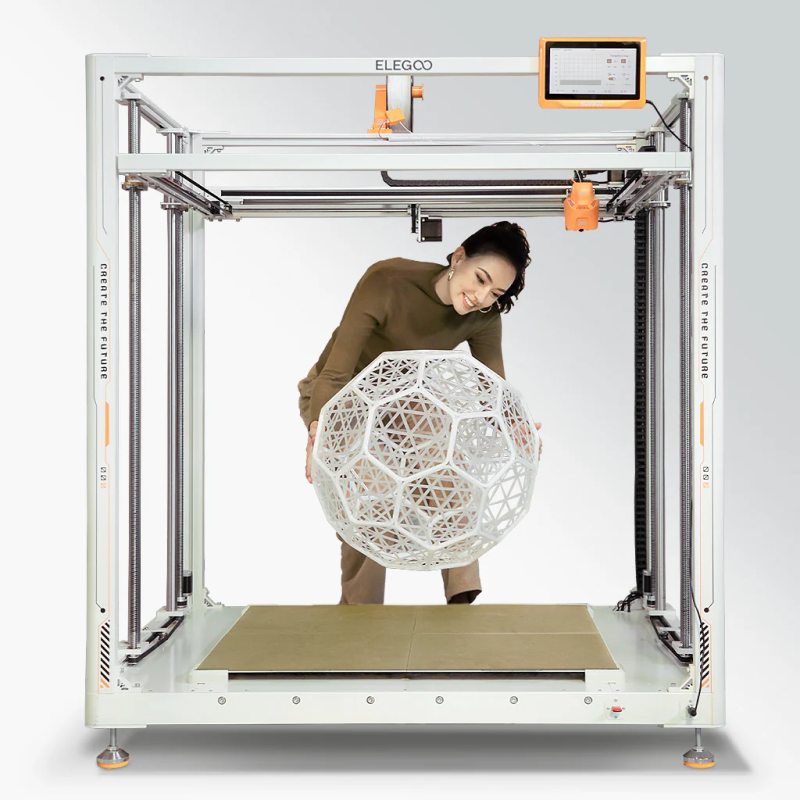

The Elegoo OrangeStorm Giga is not just a 3D printer, it redefines market standards. With an exceptional print size of 800mm x 800mm x 1000mm, it far surpasses the dimensions of traditional 3D printers for consumers. This true giant is suitable for both enthusiasts and professionals, offering exceptional production capabilities. Thanks to its impressive print volume, the OrangeStorm Giga allows for the creation of large projects in one piece, without the need to cut models into sections, making it an ideal solution for demanding users looking for very large formats.

The strengths of the Elegoo OrangeStorm Giga

Huge printing volume

With a print volume of 800 mm x 800 mm x 1000 mm, this printer FDM It not only meets the printing needs of oversized models, but also avoids the need to cut models into smaller sections for smoother printing.

Four hot plates

The heated bed is composed of four independent PEI magnetic platforms (410*410mm), capable of reaching a maximum temperature of 100°C. The four platforms can heat simultaneously to reach 100°C across the entire surface in 17 minutes (ambient temperature: 25°C). Additionally, the platform on which the model is positioned can be automatically detected and heated independently, or controlled manually, optimizing energy efficiency.

High printing speed

Equipped with a high-performance quad-core processor running at 1.5 GHz (RK3328 SOC), this printer provides sufficient computing power to achieve a maximum printing speed of 300 mm/s (recommended 150 mm/s), making it one of the fastest printers in its category.

Important repeatability

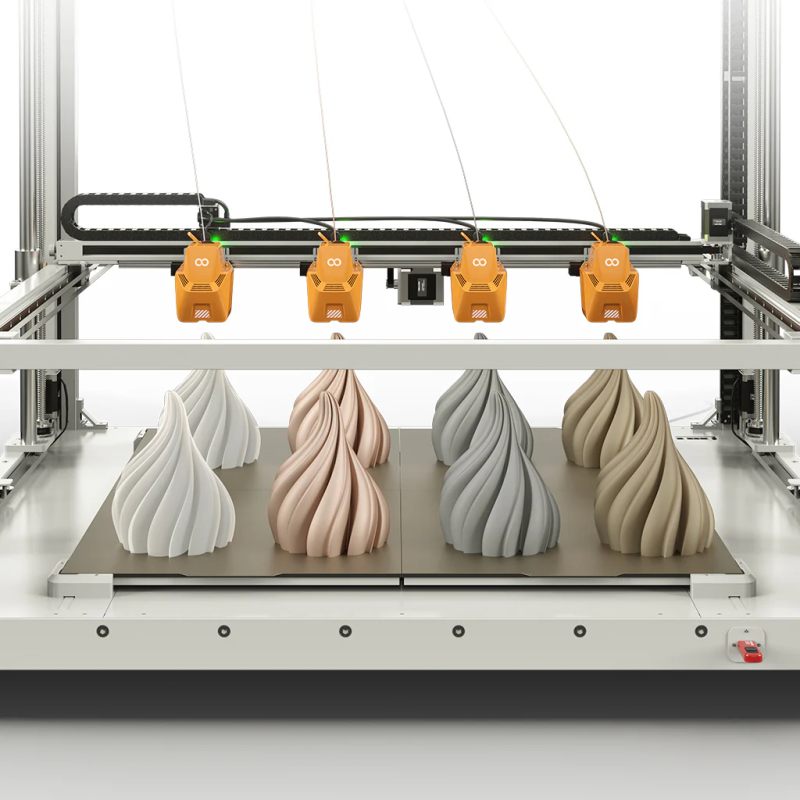

It is possible to add up to three additional print heads on the X-axis, allowing for simultaneous printing with four nozzles. Each nozzle can be loaded with filaments of the same material but different colors, enabling the production of four identical models in a single print.

Powerful cooling

Dual-sided cooling fans significantly improve print quality. Additionally, these fans feature an intelligent control function that automatically stops them at the end of the print, saving energy, reducing noise, and extending their lifespan.

Quality manufacturing

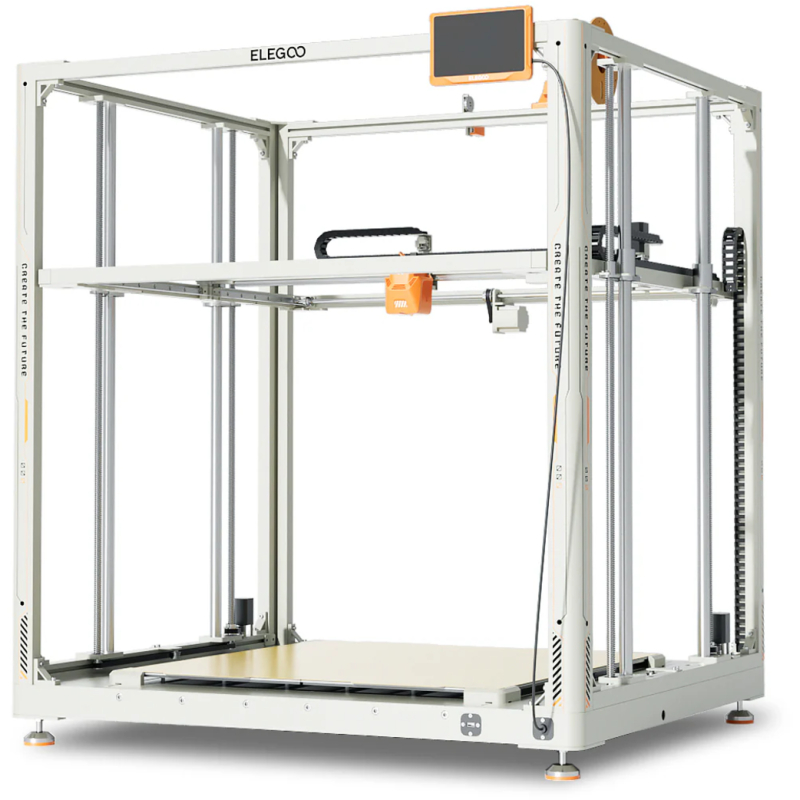

Integrated design combining elegance and robustness. The X and Y axes are equipped with linear guides, which improve printing stability and extend the printer's lifespan. The Z-axis features an upgraded version of the Z-rod for smooth operation and optimal leveling precision. The machine supports have a round base made of carbon steel and a non-slip rubber pad for enhanced stability.

Improved nozzle and temperatures

The high-temperature nozzle, capable of reaching up to 300°C, features a dual-gear extrusion structure and a thermal tube made of titanium alloy. It has been enhanced with chromium-zirconium copper and a 60W ceramic heating pad, ensuring smoother and more consistent extrusion, thus optimizing printing precision.

Furthermore, the nozzle's PID auto-calibration function allows for more precise temperature control, while the integrated acceleration sensor automatically adjusts resonance compensation parameters to ensure optimal printing quality and enhance your printing experience.

Nozzle diameter (included): 0.6 mm
Nozzle diameter (optional): 0.4 mm / 0.8 mm / 1 mm
