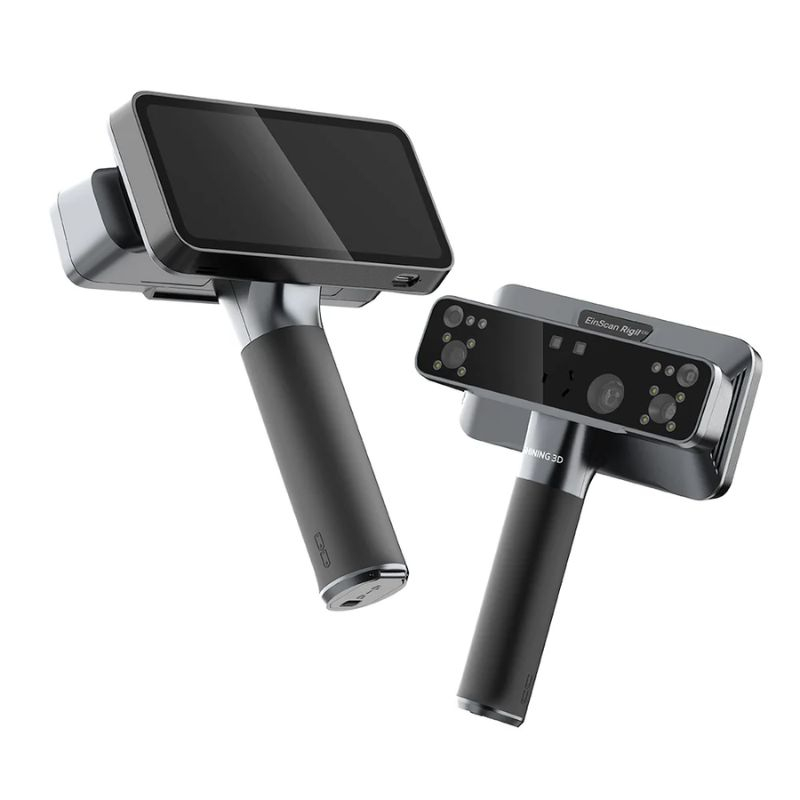

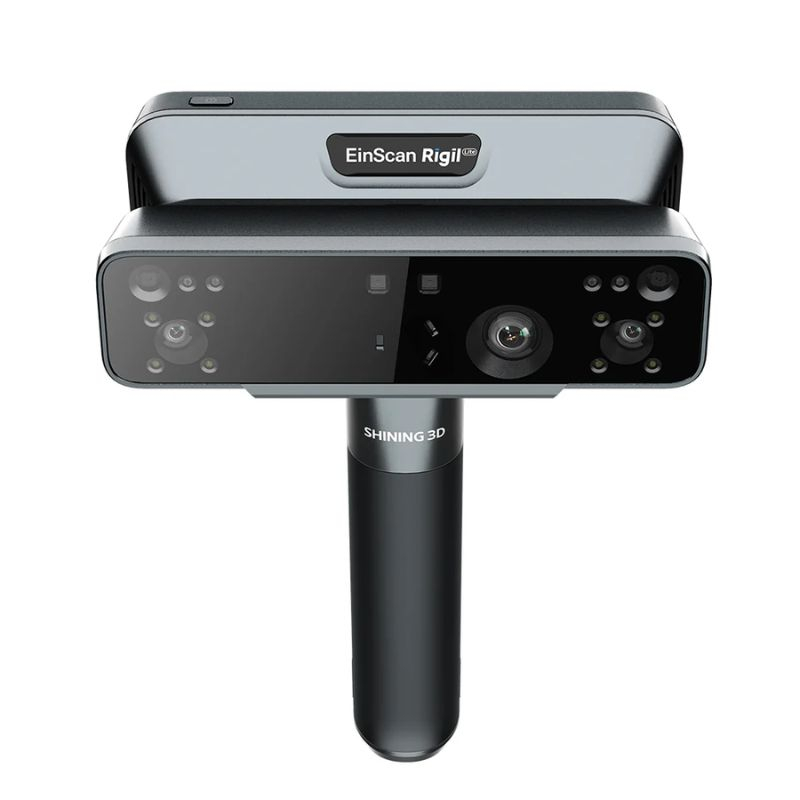

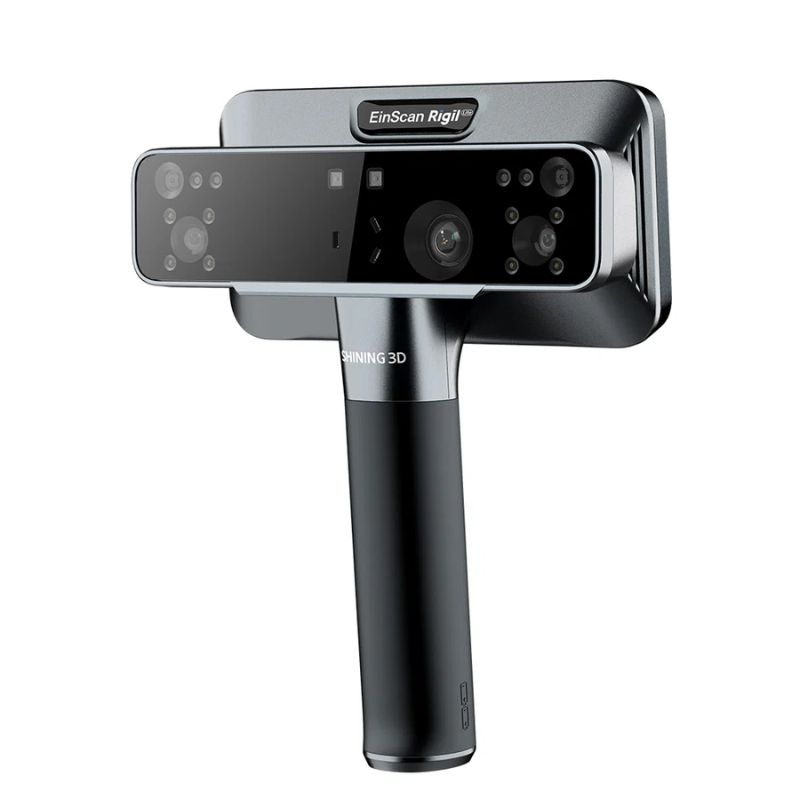

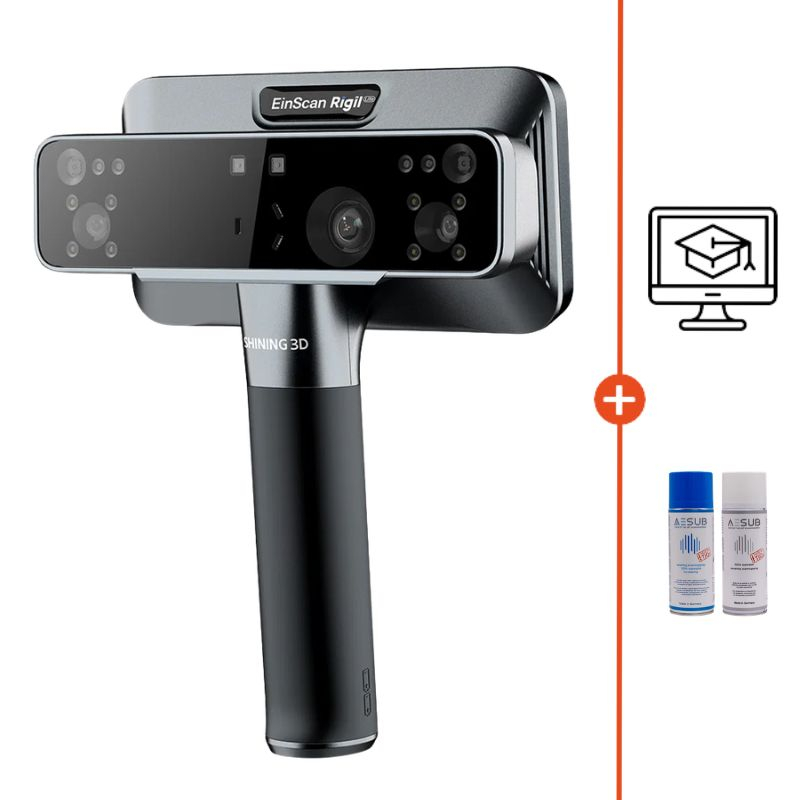

Shining 3D EinScan Rigil Lite

17+17 crossed laser lines: speed and coverage

The 17+17 crossed laser line system is designed to maximize capture speed (2,940,000 points/s) and tracking stability. It enables fast coverage of large surfaces while maintaining reliable tracking, even on complex geometries. This mode is ideal for high-productivity full-object scans.

7 parallel laser lines: fine detail capture

With its 7 parallel laser lines, the Rigil Lite focuses on fine details and sharp edges. This mode is ideal for technical areas requiring higher resolution. Switching between modes is instant, allowing real-time adaptation to the required level of precision.

IR VCSEL: fast, marker-free scanning

The IR VCSEL technology enables fast and wide-area scanning, ideal for large objects or outdoor environments. It also supports marker-free operation and eye-safe scanning, including portrait capture. This mode delivers strong flexibility in the field with speeds up to 16,000,000 points/s.

Precision and resolution for professional use

The EinScan Rigil Lite offers scan resolution ranging from 0.05 mm to 10 mm in HD Laser mode and 0.2 mm to 10 mm in IR mode, making it suitable for both fine details and larger volumes.

This resolution range provides a strong balance between precision and speed, particularly for reverse engineering, prototyping, and technical documentation.

Marker-free laser scanning

The marker-free laser mode significantly simplifies object preparation.

It enables fast scanning, especially on feature-rich surfaces, reducing setup constraints and accelerating field workflows.

Three operating modes: full flexibility

The EinScan Rigil Lite offers three working modes. The Standalone mode enables full scanning and processing directly on the device, ideal for mobility.

The Wireless PC mode via integrated WiFi 6 provides additional computing power for complex projects. The Wired PC mode (USB-C) ensures maximum stability in constrained environments.

Advanced hybrid tracking

The system combines features, textures, markers, and global markers to ensure stable tracking in all conditions. This hybrid approach improves reliability even on complex or low-texture parts.

Fully autonomous workflow

Thanks to its onboard computing, the scanner allows scanning, processing, and exporting directly without a PC.

This provides real freedom of use, especially in field or workshop environments.

Interchangeable battery system

The replaceable battery allows continuous scanning without interruption. With up to 3 hours of runtime, the Rigil Lite supports long scanning sessions.

5MP color and texture capture

The 5 MP camera delivers realistic and accurate textures.

This improves model quality, especially for visualization and presentation use cases.

Dark surface scanning without spray

The adaptive mode allows scanning of dark or reflective surfaces without any preparation. This reduces handling and increases productivity.

Optimized outdoor mode

The outdoor preset ensures stable scanning even in bright environments. It helps capture large structures directly on site.

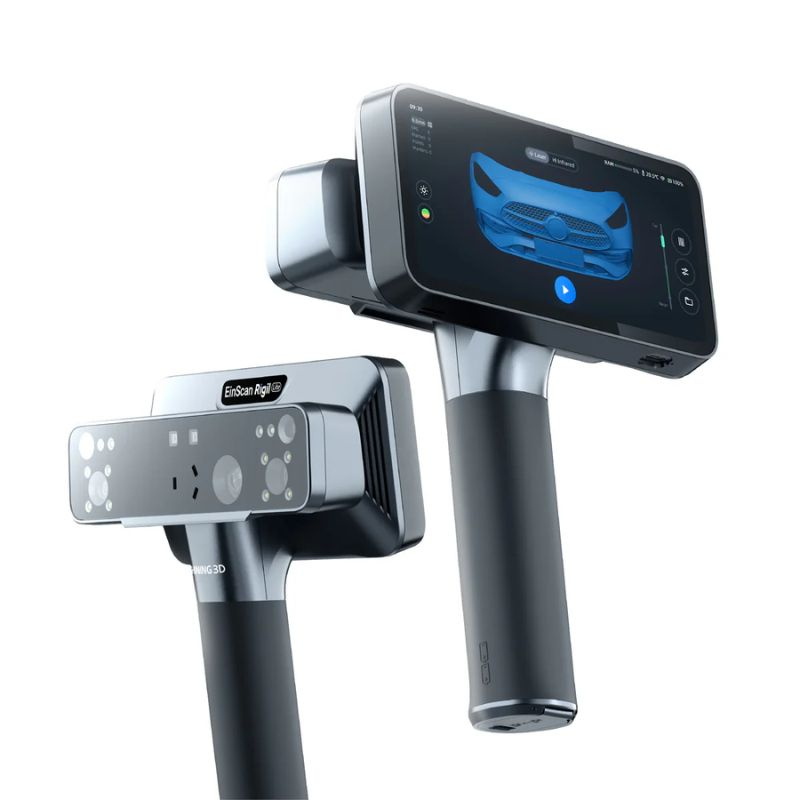

Integrated 2K touchscreen

The 6.4-inch 2K display allows full control of all operations directly on the device. Navigation, validation, and editing are done without external hardware on the EinScan Rigil Lite.

High onboard storage

With 512 GB + 64 GB eMMC, the Rigil Lite can store many projects. This reduces data transfers and improves workflow autonomy.

Integrated WiFi 6

WiFi 6 connectivity enables smooth wireless operation.

Ideal for connecting to a PC or transferring data quickly.
