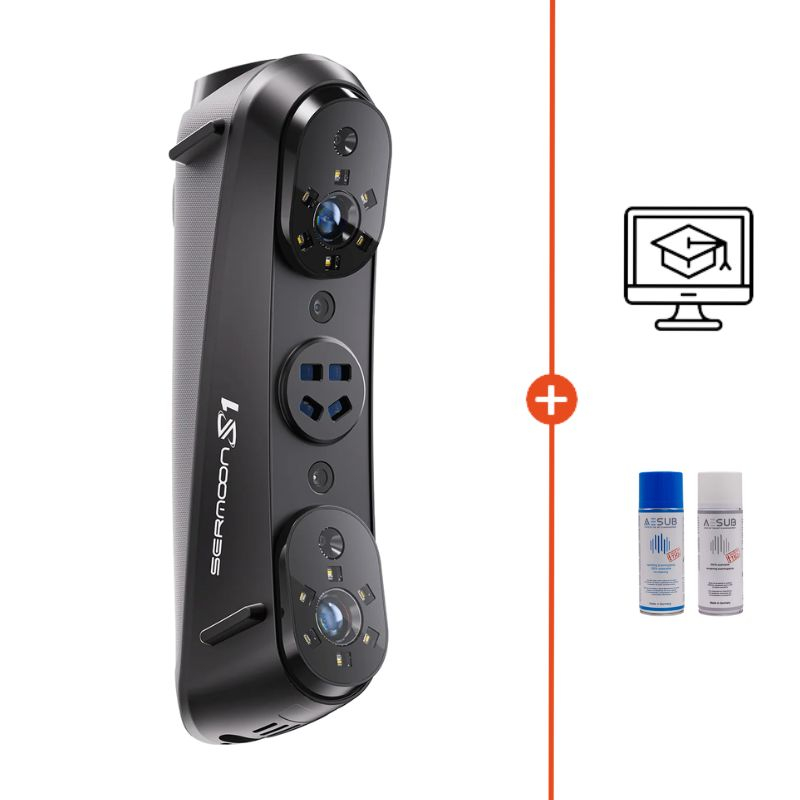

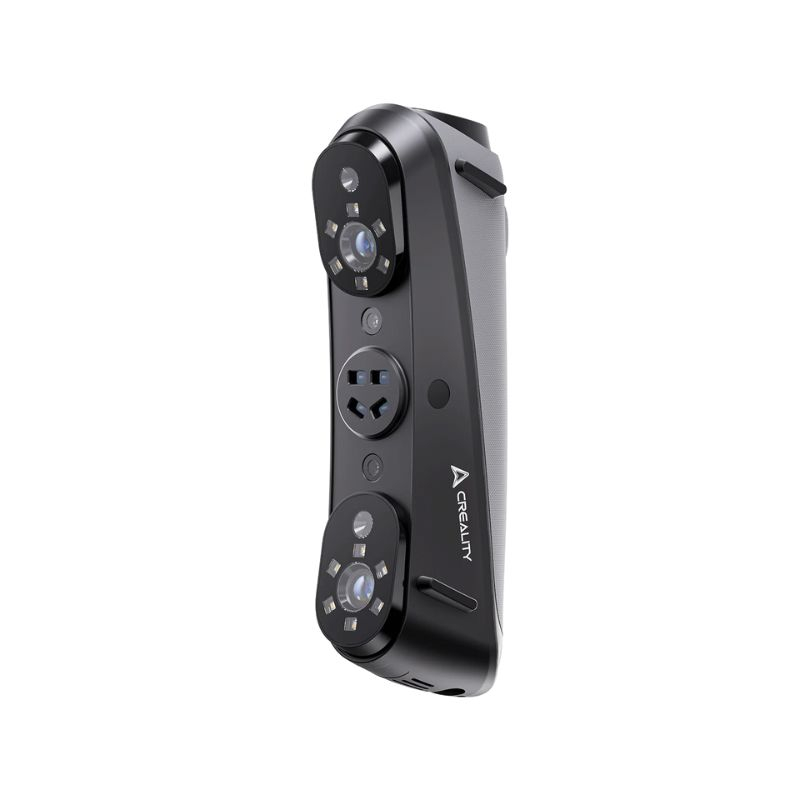

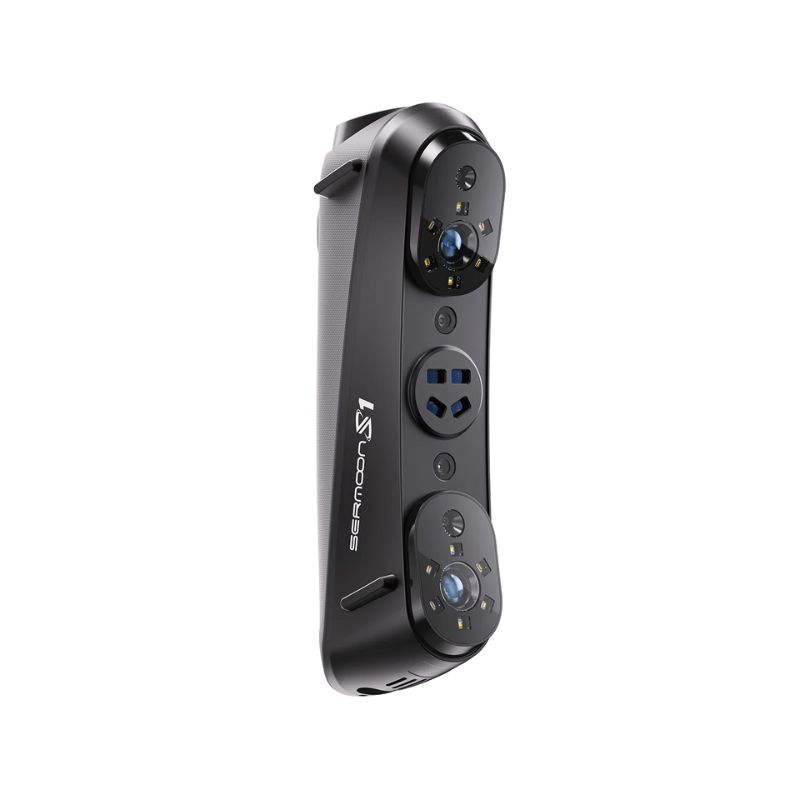

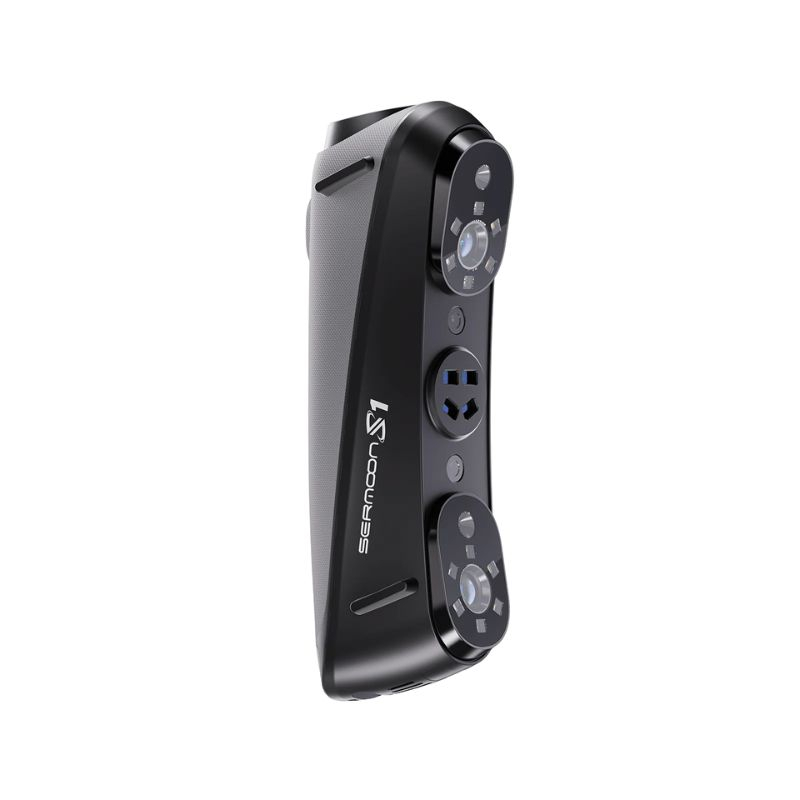

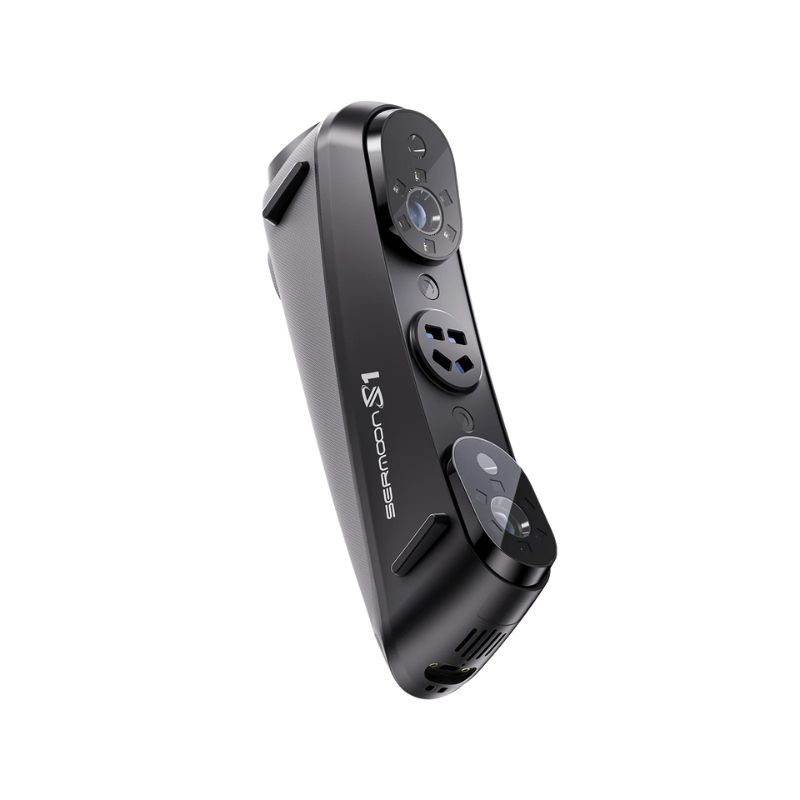

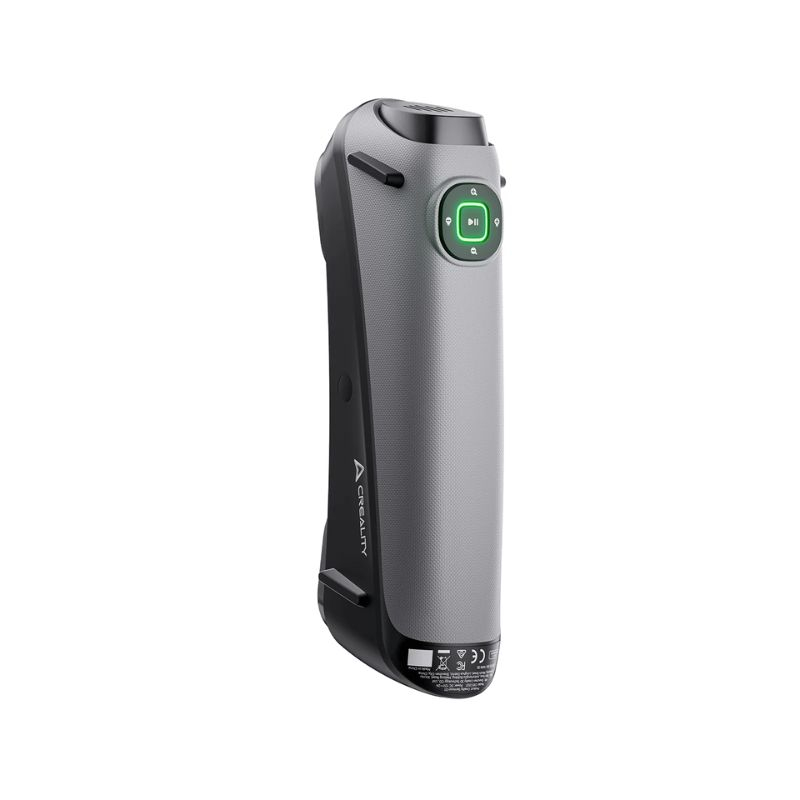

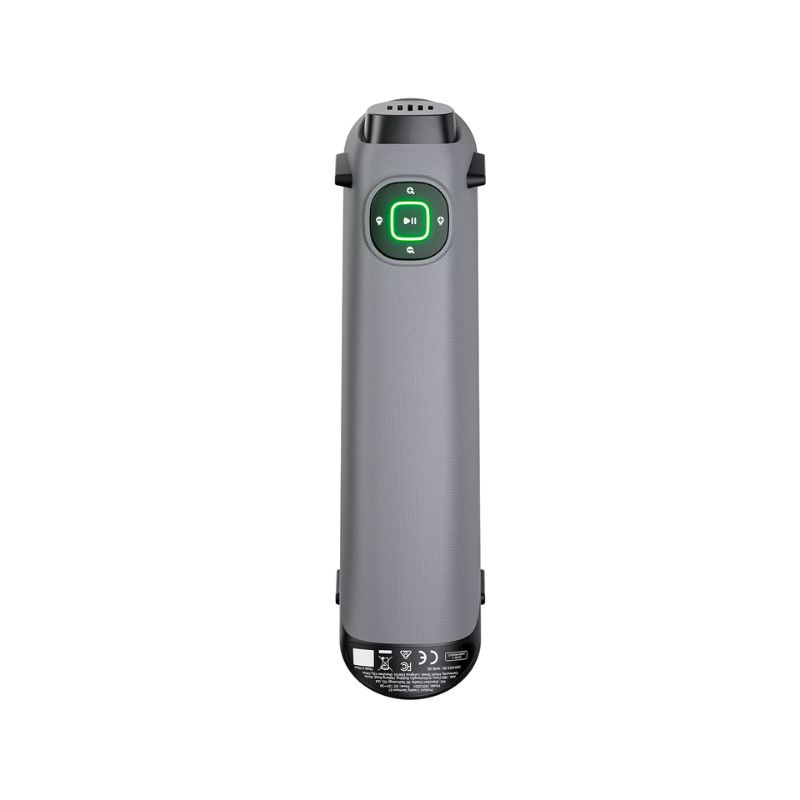

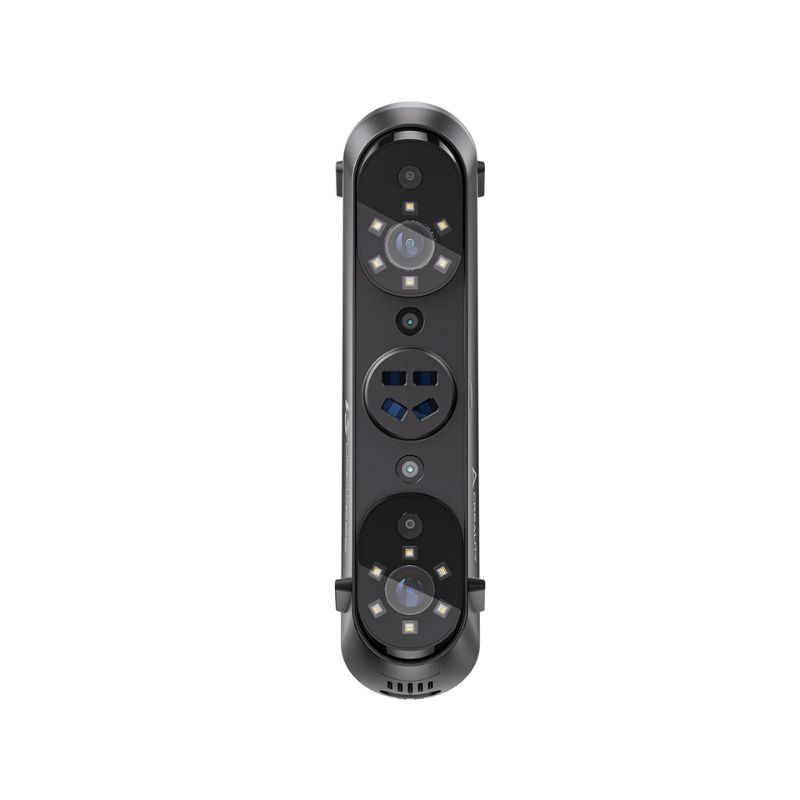

Creality Sermoon S1

Creality Sermoon S1

The Creality Sermoon S1 is a versatile and fast 3D scanner, capable of handling a wide range of objects, from the smallest to the largest, without requiring any special preparation. Its different laser modes ensure high precision and adaptability for every type of part.

It captures every detail accurately and is ideal for design, engineering, product development, and even historical preservation.

Key Advantages of the Creality Sermoon S1 Scanner

The Creality Sermoon S1 stands out for its many features: a 0.02 mm precision for detailed models, high scanning speed up to 90 FPS, and an extended scanning range from 5 mm³ up to 4 m³.

Its various laser technologies make it easy to scan black or metallic surfaces as well as objects outdoors under strong lighting. Combined with Creality Scan 4.0 software, it provides a simple, fast, and reliable workflow.

Creality Sermoon S1: Versatility and Precision

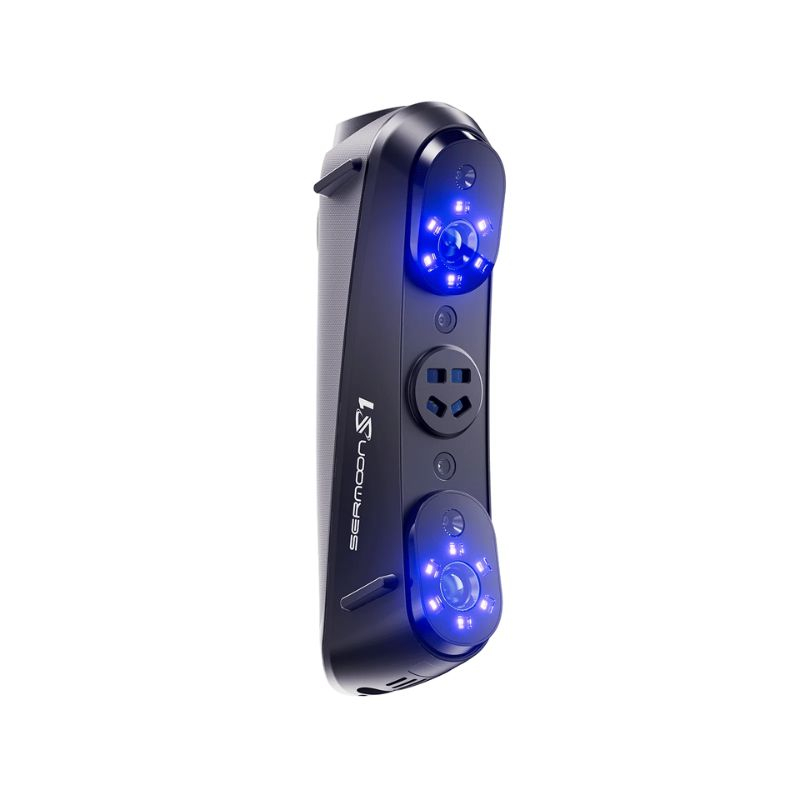

Single-Line Blue Laser

The Sermoon S1 uses a single-line blue laser specially designed to reach hard-to-access areas. Thanks to its optimized optical system, it can scan with high precision deep cavities and very fine gaps.

This technology ensures faithful reproduction of the smallest details, even on parts with complex design and geometry.

7 Parallel Blue Laser Lines

Using the 7-parallel-line blue laser mode, the Creality Sermoon S1 allows fast and detailed capture of somewhat complex surfaces. It records up to 756,000 points per second, with a resolution of up to 0.1mm.

Usable at a distance of 150 to 400 mm, it ensures efficient scanning of objects with fine and varied shapes.

34 Crossed Blue Laser Lines

The 34-crossed-line blue laser mode of the Sermoon S1 is designed for rapid scanning of medium to large objects. It greatly optimizes productivity by providing high-quality scans in a short time.

This mode achieves an acquisition speed of 1,428,000 points per second at a distance of 200 to 600 mm. Perfect for efficiently scanning large volumes without losing precision.

NIR Structured Light

In NIR structured light mode, the Sermoon S1 performs fast and markerless scanning, ideal for large objects or face and human body scanning.

Its short and long-range infrared technology allows an exceptional scan rate of up to 4,600,000 points per second, ensuring precise and smooth results.

High-Precision Scanner

Scan Accuracy 0.02 mm

The Sermoon S1 offers a scan accuracy of 0.02 mm, meeting the requirements of metrology applications. This precision allows capturing the smallest details with remarkable accuracy.

It ensures the creation of reliable digital models perfectly suited for applications requiring high precision in engineering and industry.

Volumetric Accuracy 0.02 mm + 0.08mm/m

With a volumetric accuracy of 0.02 mm + 0.08 mm/m, the Creality Sermoon S1 ensures measurement consistency and reliability across objects of different sizes.

This scanner is ideal for professional use and guarantees that overall measurements remain reliable, even on large objects.

Sermoon S1: Designed for Speed and Efficiency

High Scan Speed up to 90 FPS

The Sermoon S1 stands out with a high scan speed, reaching up to 90 frames per second in single-line or parallel-line modes (70 FPS in cross-line modes).

With the capability to capture up to 1,428,000 points per second, it combines speed and precision, efficiently accelerating workflow.

4-Lens NIR Structured Light

The NIR mode of the Sermoon S1 relies on 4 lenses to adapt to all needs. Its standard stereo lenses ensure high-precision scanning, while its ultra-wide field lenses allow rapid scanning of large objects or the human body without markers.

The process of capturing complex surfaces is simplified and accelerated.

Large-Scale Scan Quality

The Creality Sermoon S1 provides high-performance scanning over large surfaces thanks to its wide field of view. This setup minimizes marker usage, stabilizes tracking, and accelerates the scanning process.

In laser mode, the maximum surface scanned up to 600 mm is 506 x 433 mm. Infrared mode allows capturing a human body in under a minute with precision and smoothness.

Ease of Use and Project Versatility

Scanner from 5 mm³ to 4000 mm³

The Sermoon S1 covers a wide scanning range from 5 x 5 x 5 mm to 4000 x 4000 x 4000 mm thanks to its hybrid system combining blue laser lines and NIR structured light.

This versatility allows capturing both very small detailed parts (components, figurines, screws...) and larger objects such as vehicles.

High Performance Indoors and Outdoors

This scanner delivers excellent performance during indoor and outdoor scanning sessions under strong lighting. Its advanced laser technology ensures reliable results regardless of lighting conditions.

Single or cross-line laser operates up to 100,000 lux and 7-line laser up to 50,000 lux, ensuring precision and stability.

Scanning Dark or Metallic Objects with Ease

The Sermoon S1 can easily and accurately scan black or metallic/reflective objects without requiring matting sprays.

This capability simplifies the workflow by avoiding manual pre-treatment. Scans are faster, and quality remains high.

Smart Stabilization for Guaranteed Results

The Creality Sermoon S1 integrates a temperature compensation algorithm using AI along with a thermal management system to ensure stable scans.

Its One-Shot 3D imaging technology provides high stability by minimizing misalignments caused by manual movements.

CrealityScan 4.0 Scanning Software

The CrealityScan software, version 4.0, provides professional and efficient scanning tools. Its intuitive and simple design does not prevent fast and effective processing of images and point clouds. Additionally, numerous tutorials and user feedback are available for this widely adopted software.

CrealityScan 4.0 is faster thanks to GPU acceleration, allowing scanning up to 90 FPS and 2x more efficient laser line fusion. 3D animations and integrated interactive tools make the software simple and accessible to use.

The software’s power allows you to capture fine details, including global marker tracking and smooth alignment of scan points. Integrated AI helps repair and enhance your scans to obtain precise and clean images.

Integration with Design Software

Your scans can be used and imported into major design, reverse engineering, and engineering software such as QuickSurface or Geomagic Design X.

The combination of a high-performance scanner and powerful software ensures perfect integration into your workflow.

Our Opinion on the Creality Sermoon S1

The Creality Sermoon S1 stands out as a reference 3D scanner for demanding professionals. Combining speed, precision, and versatility, it reliably captures objects from fine details to large surfaces without complex preparation. Its multi-laser technology and NIR structured light allow fast and accurate scanning, even for complex shapes or hard-to-reach surfaces.

Smart software, high-speed acquisition, modes adapted to all object sizes: everything is designed to simplify workflow and ensure metrological-quality results. The Sermoon S1 confirms its place as an essential tool for engineering, design, and industrial inspection.
