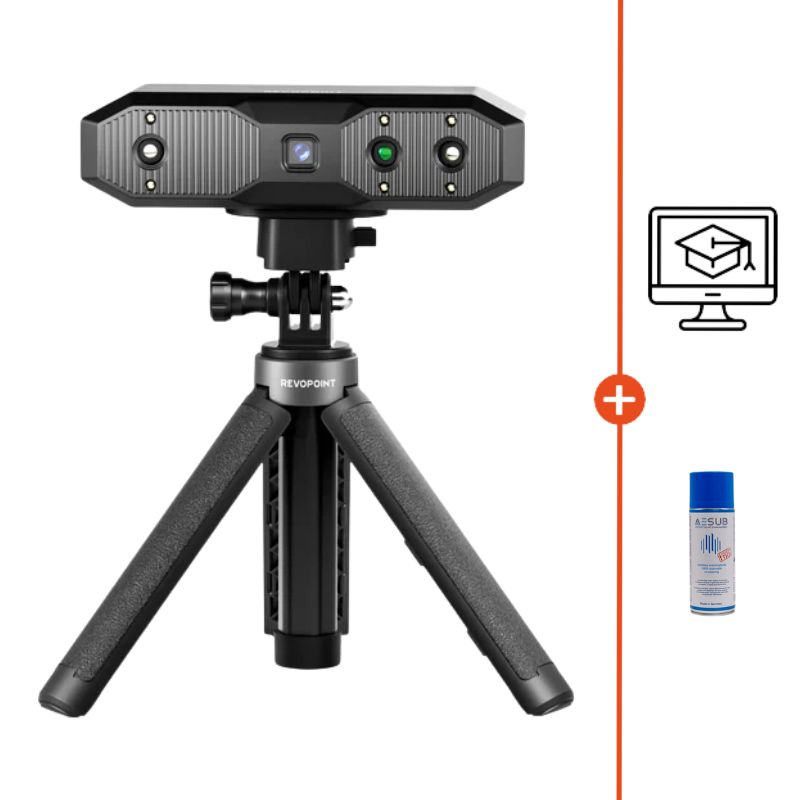

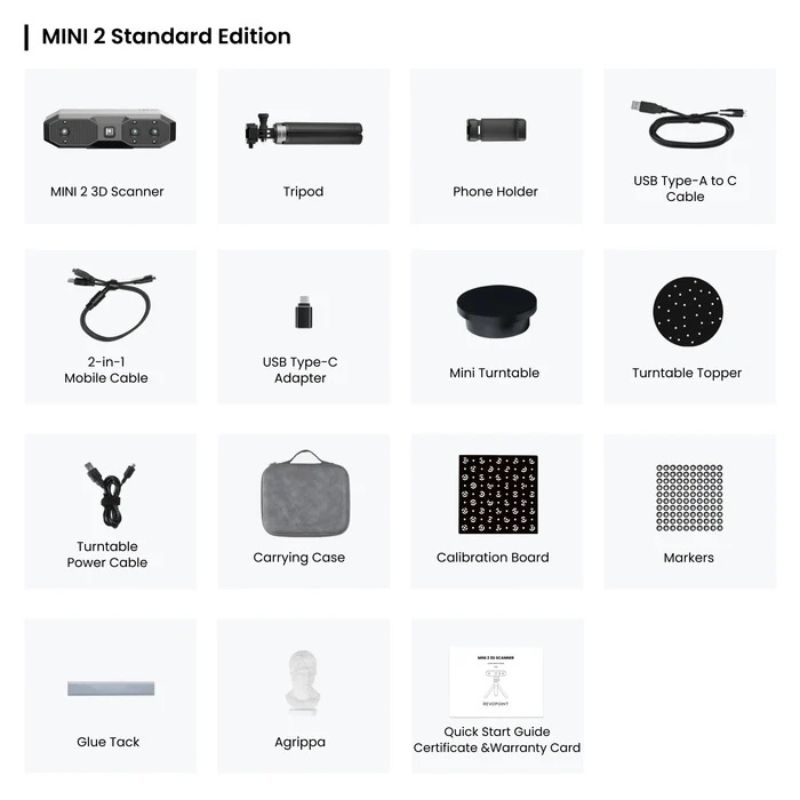

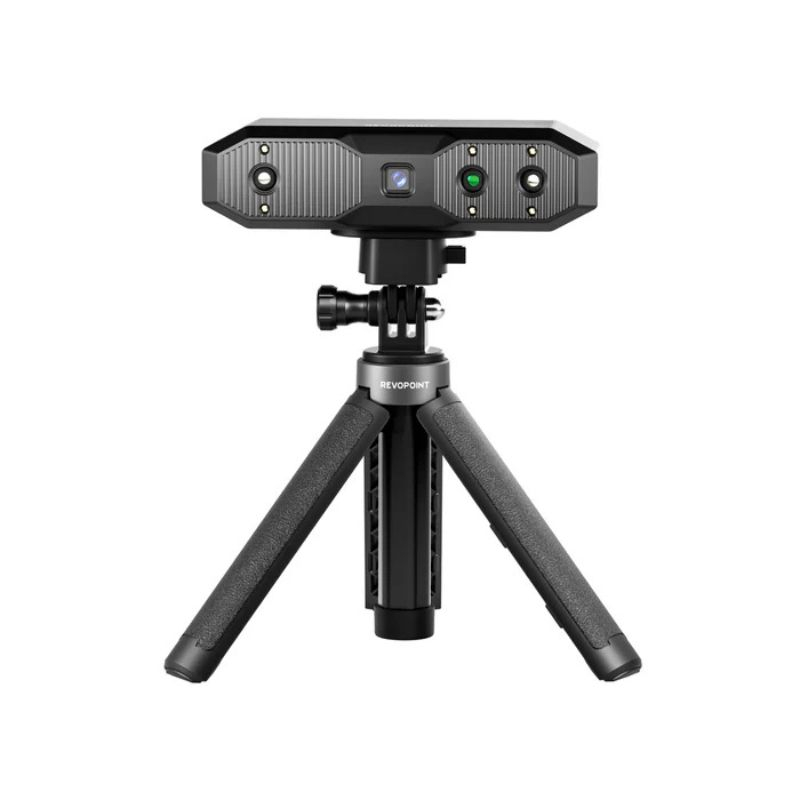

Revopoint MINI 2 Standard Edition

Revopoint MINI 2: a high-precision 3D scanner for micro-details

The Revopoint MINI 2 clearly belongs to the category of 3D scanners dedicated to small objects where precision is critical. It is based on blue structured light technology, designed to capture fine surfaces, complex textures, and highly detailed geometries without loss of information.

With an accuracy of up to 0.02 mm, it is positioned for demanding applications such as fine engineering, dental work, or reverse engineering of small parts. The unit is compact, lightweight, and designed for both desktop and controlled mobile use.

What stands out in practice is the stability of the scanning flow and the MINI 2’s ability to maintain mesh consistency even on complex or slightly reflective objects when properly prepared. This is a serious tool, clearly focused on precision rather than broad large-format versatility.

Revopoint MINI 2: scanning technology, precision and capture modes

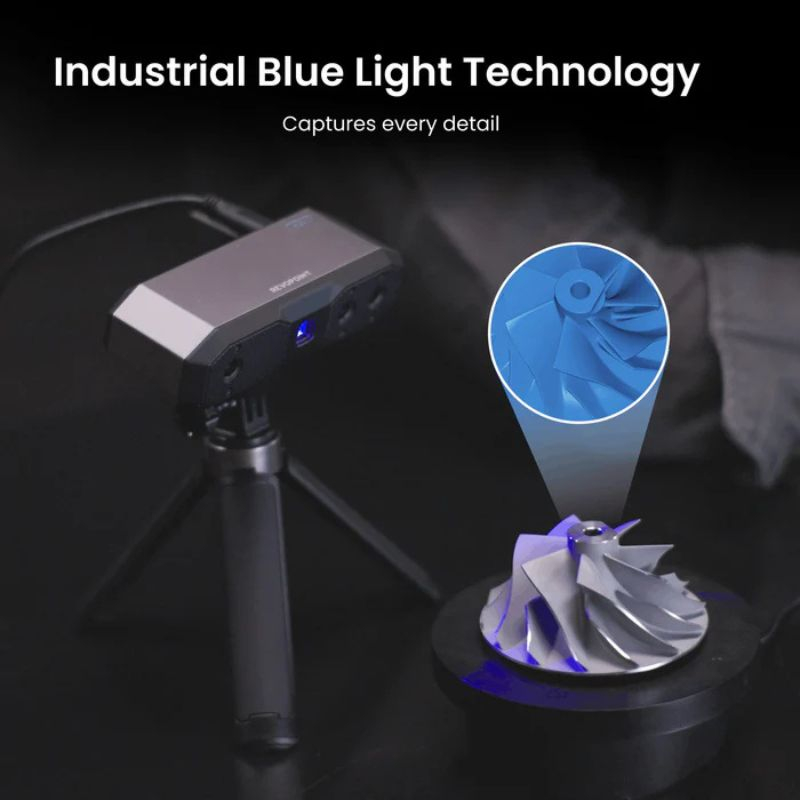

High-resolution blue structured light

The MINI 2 relies on blue structured light technology which improves the capture of micro-reliefs and complex surfaces. This approach provides better stability on fine details compared to standard light systems.

The scanner combines precise projection with dual-camera sensors to reconstruct dense and coherent point clouds, even on small objects.

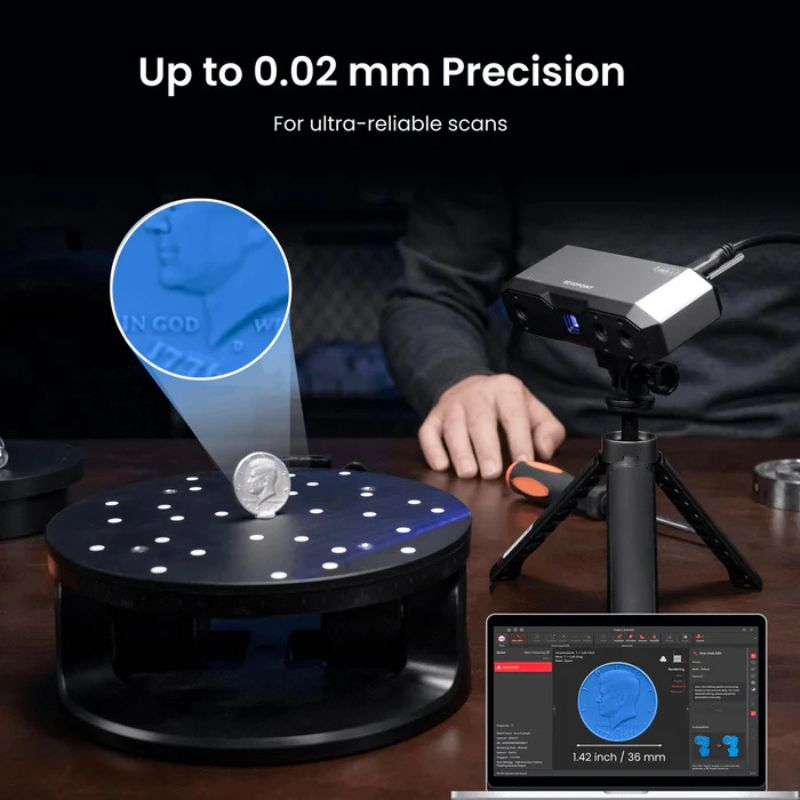

Up to 0.02 mm precision

The main strength of the MINI 2 is its exceptional accuracy of up to 0.02 mm. This places it in the light metrology and fine reverse engineering segment.

In practice, it allows sharp edges, mechanical textures, and complex organic surfaces to be captured with a level of fidelity difficult to achieve with consumer-grade scanners.

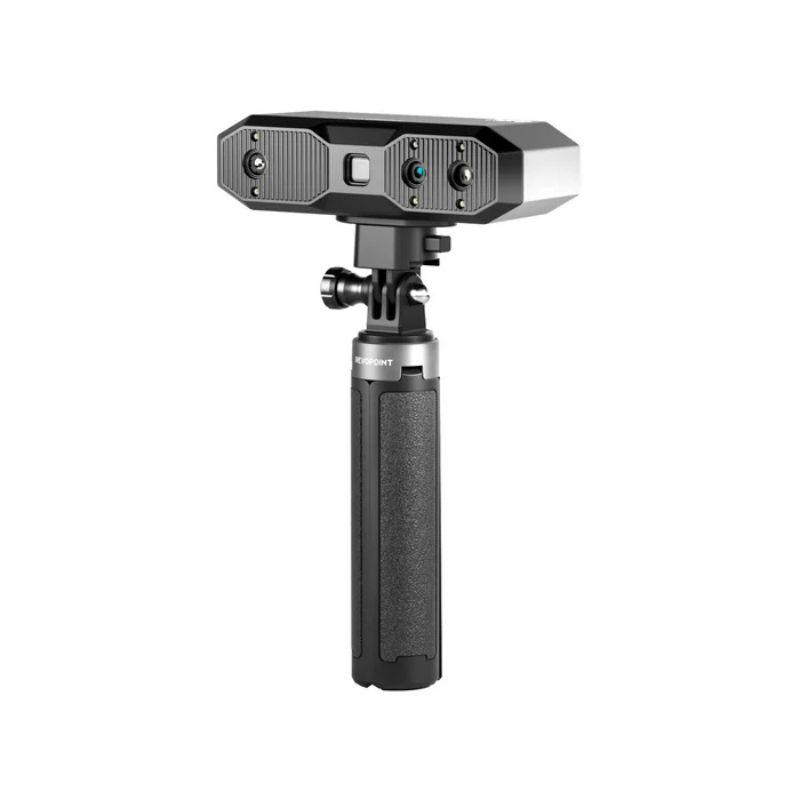

Smart tracking with 9-axis IMU

The integration of a 9-axis IMU significantly improves scanning stability. The system analyzes motion in real time to reduce tracking loss.

This results in fewer artifacts, less manual realignment, and smoother frame fusion—especially useful for handheld scanning of small or complex parts.

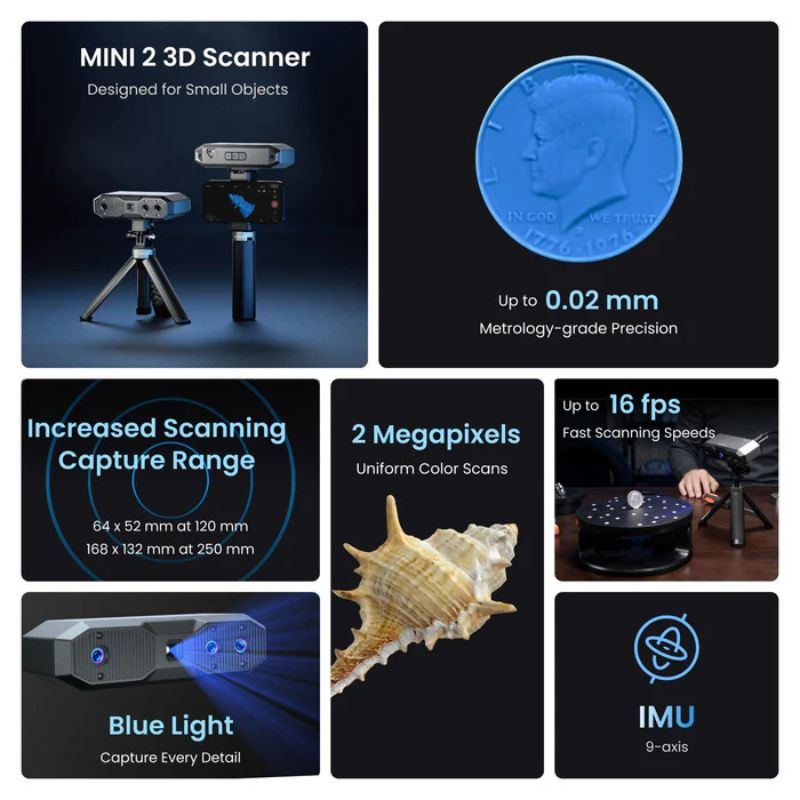

Revopoint MINI 2: key technical specifications

Optimized scanning range

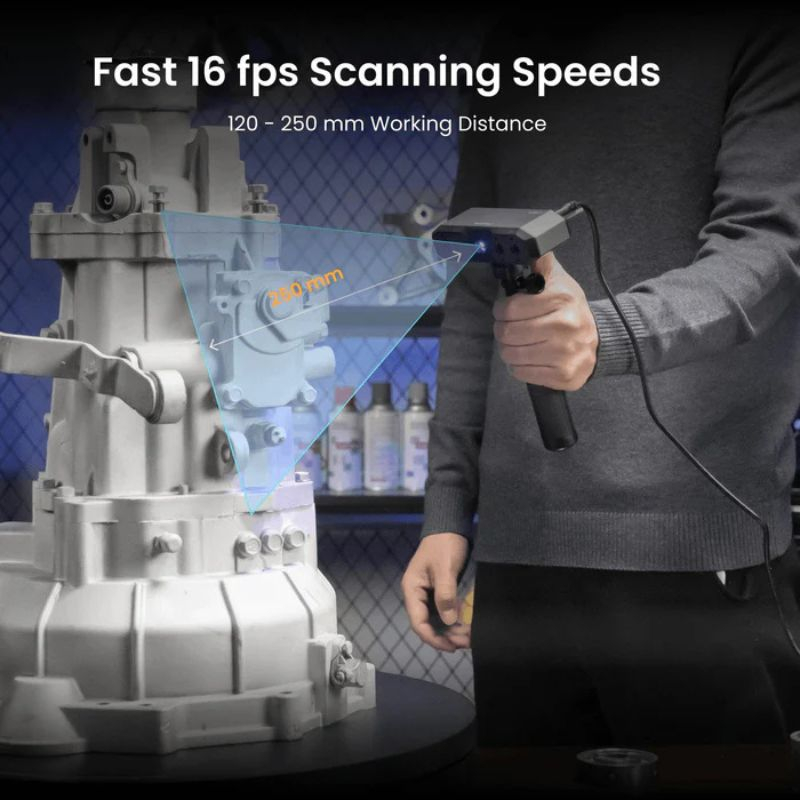

The 120 to 250 mm working range of the Revopoint MINI 2 is suited for small parts requiring precision and stability.

It ensures smooth tracking while maintaining good point density, ideal for micro-components, technical objects, or detailed mechanical parts in controlled environments.

Up to 16 fps scanning

With speeds of up to 16 frames per second, the MINI 2 delivers smooth and stable scanning. This reduces tracking loss during movement and improves data continuity.

The result is cleaner meshes that are easier to process for post-production or 3D printing.

Compatible with very small objects

The MINI 2 can scan objects as small as 10 × 10 × 10 mm, making it ideal for micro parts. This capability is essential for jewelry, electronics, and fine mechanical components.

Details remain precise even on extremely small volumes.

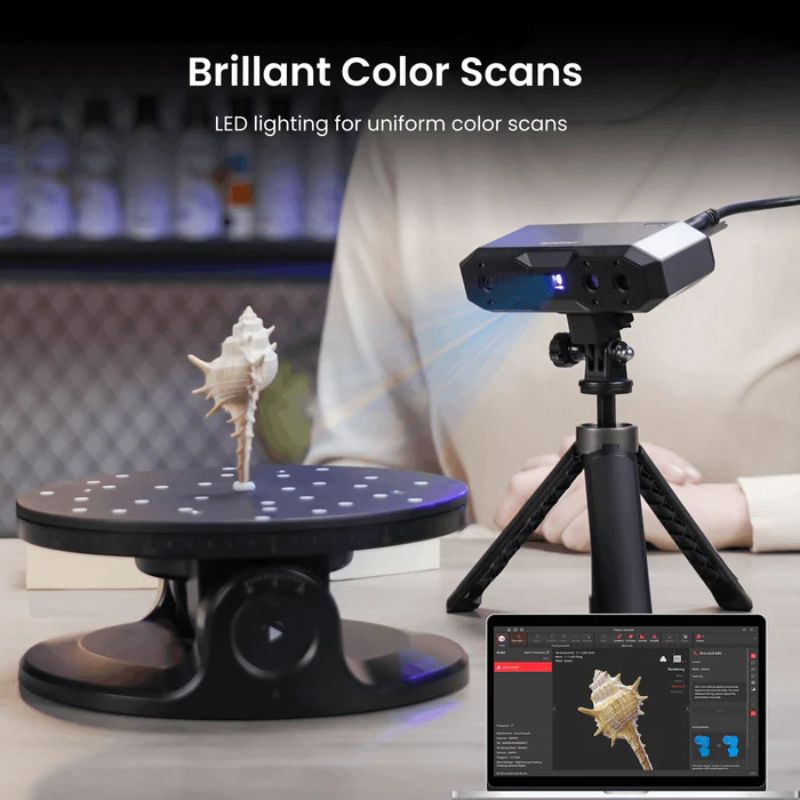

Enhanced color capture

The 2 MP RGB camera combined with flash LEDs enables more uniform color capture. Lighting reduces shadows and improves texture reproduction.

This results in more readable 3D models, useful for visualization, documentation, and realistic rendering projects.

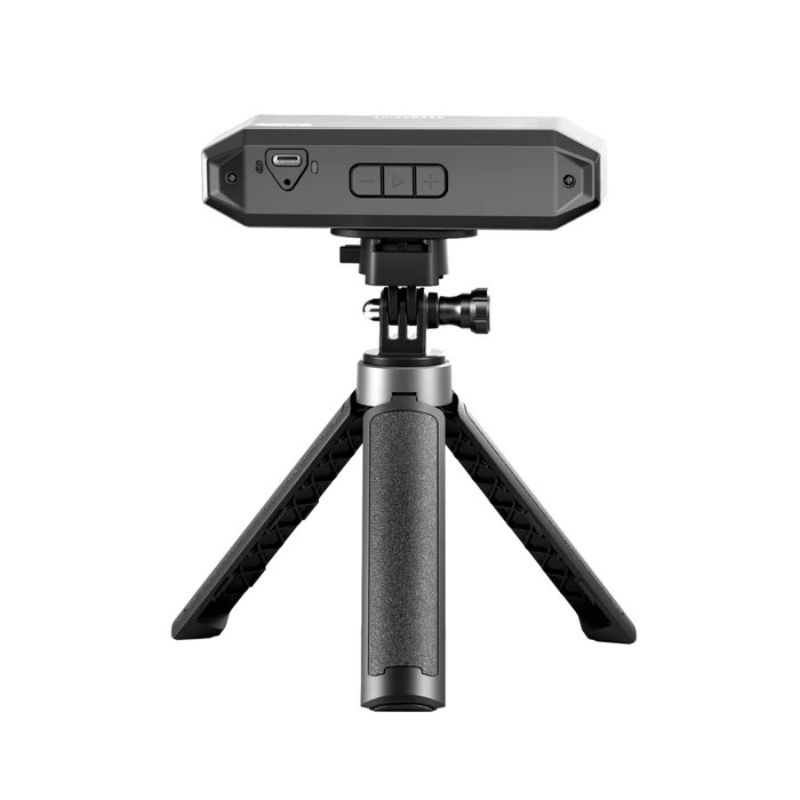

Modern connectivity

The MINI 2 integrates Wi-Fi 6 and USB-C for flexible usage. Wi-Fi enables cable-free mobile scanning, while USB ensures stable wired connections.

This dual approach adapts workflows depending on precision or mobility needs.

Complete software ecosystem

Revo Scan 5 centralizes scanning, editing, and alignment. It enables a smooth workflow without switching software.

Compatible with Windows, macOS, iOS, and Android, it simplifies scan management and export to CAD or 3D printing software.

Revopoint MINI 2 and Revo Scan 5: a complete software environment

The Revopoint MINI 2 reaches its full potential with Revo Scan 5, which acts as a central environment for capture and processing. It integrates acquisition, alignment, cleanup, and merging without requiring external tools.

What stands out is the multi-alignment management and the stability of the processing pipeline, even for heavy scans. The software is also designed for a multi-platform ecosystem (Windows, macOS, iOS, Android), making hybrid workflows easier. Export to standard formats such as STL, OBJ, or FBX ensures direct integration into CAD, 3D printing, or animation pipelines.

Revopoint MINI 2: expert 3D scanning review

In real-world use, the MINI 2 is clearly a precision-oriented scanner rather than a general-purpose device. It excels on small technical parts, jewelry, dental applications, and fine mechanical objects. Its main limitation is its restricted working volume, but this is not a weakness in its category—it is a deliberate design choice.

The combination of blue light + 9-axis IMU + high resolution makes it a highly coherent tool for precise reverse engineering. It is not a “consumer all-rounder” but a stable, repeatable, fine-detail capture system—exactly what technical workflows require.
