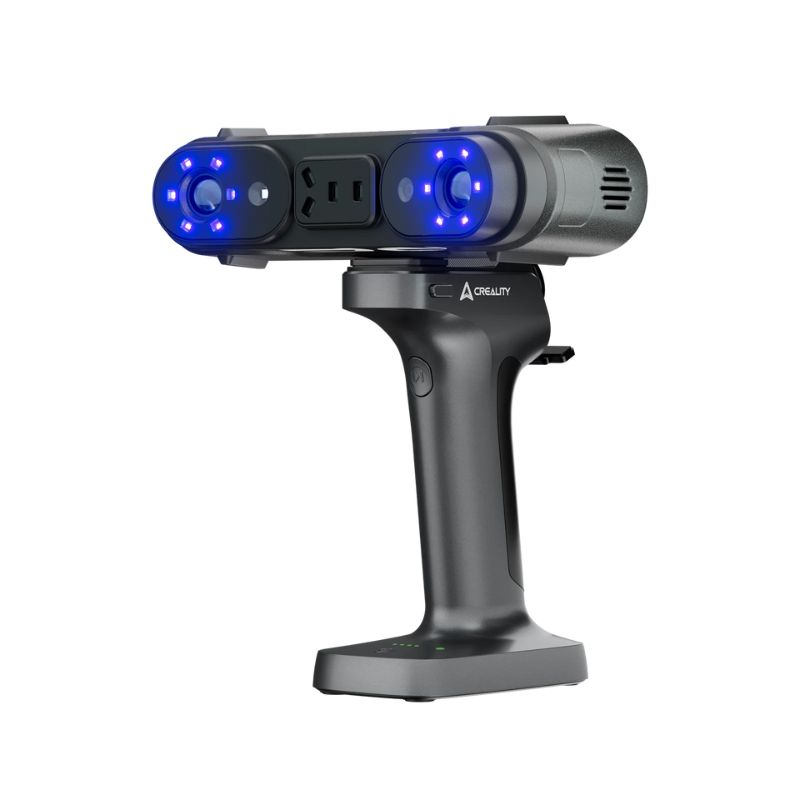

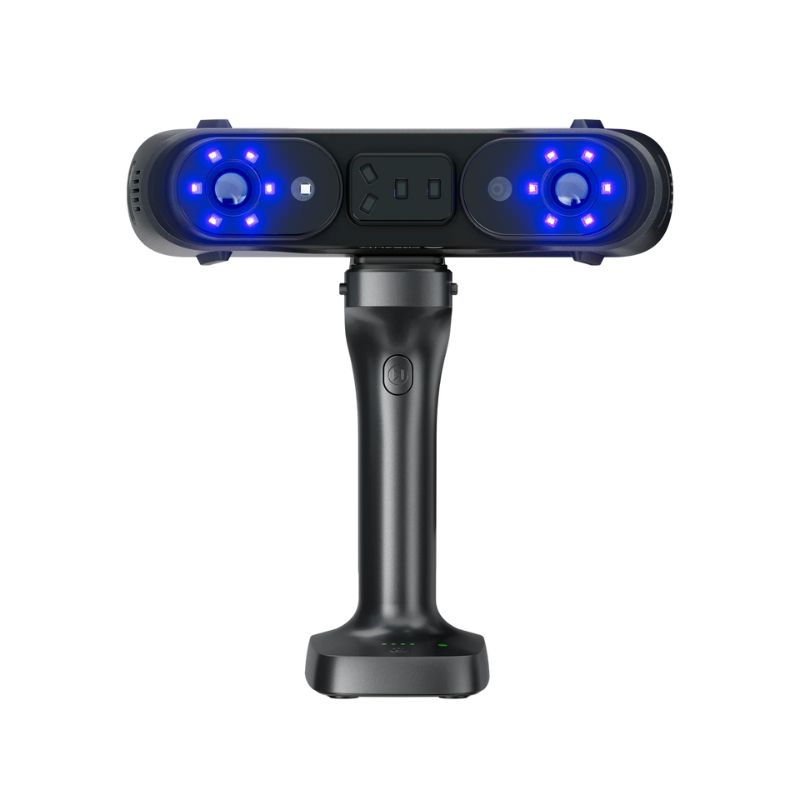

Creality Sermoon X1

Single-Line Laser Mode

The single-line laser mode provides optimal precision for deep or hard-to-reach areas.

This mode is ideal for scanning cavities, complex mechanical parts, or internal zones where traditional structured light loses effectiveness.

7-Blue-Lines Laser Mode

This mode accelerates scanning while maintaining excellent detail.

The seven parallel lines allow rapid capture of irregular shapes and technical surfaces with an excellent precision/speed ratio.

34-Crossed-Lines Mode

Designed for large objects or fast scanning of large surfaces, the 34-line mode reduces the number of repositionings needed.

It ensures smooth and homogeneous capture, even on large parts.

NIR Structured Light Mode

The NIR structured light mode (near-infrared) allows scanning of medium to large objects without markers.

Particularly useful for sensitive or hard-to-mark surfaces, it simplifies capture while ensuring high accuracy.

Metrological Accuracy 0.02 mm

The Sermoon X1 offers an accuracy of 0.02 mm + 0.04mm/m, meeting the needs of industrial and engineering applications.

This performance ensures faithful geometric reproduction, essential for part inspection and custom manufacturing.

Built-in Photogrammetry and Scale Bars

The Sermoon X1 is equipped with dual scale bars, allowing the scanner to automatically correct dimensional accuracy during reconstruction.

This feature ensures volumetric accuracy of 0.02 mm + 0.03 mm/m, ideal for applications where precision is critical, such as engineering, restoration, or technical part inspection.

Ultra-Fast 90 FPS Scanning

With a high-speed processor and optimized algorithm, the Sermoon X1 captures up to 1.73 million points per second.

Single or parallel lines reach 90 frames per second and crossed lines 70 fps, offering remarkable measurement efficiency, even for large objects or demanding conditions.

All-Metal Industrial Structure

Its CNC-machined aluminum frame ensures perfect sensor stability, avoiding drift during capture.

This robustness guarantees durability and consistent results, even in production environments.

Extended Scan Field

With a field of view up to 1300 × 935 mm, the Sermoon X1 can scan large mechanical components and objects.

This flexibility allows it to cover a wide range of applications.

High-Fidelity Color Capture

Equipped with a dedicated color camera, the scanner can record object textures and hues realistically.

This feature is appreciated for artistic, heritage, or product design applications.

Wireless Connectivity and Mobility

The Sermoon X1 also operates in wireless mode with extended autonomy, facilitating on-site surveys or industrial environments where cables are limiting.
