Modular Fixture (Flexible Fixture) Creality: adaptable holding system for laser engraving complex parts

The Creality Modular Fixture (Flexible Fixture) is a holding system designed to secure irregularly shaped objects during laser engraving operations. Developed for both production workshops and advanced users, it is based on an adaptive pin structure capable of conforming to different geometries: flat, curved, or fully asymmetric surfaces.

This system allows fast stabilization of parts without complex adjustments, while ensuring the repeatability required for batch production. Its modular approach also makes it possible to combine multiple units for long or oversized workpieces.

Key features of the Creality Modular Fixture (Flexible Fixture)

Automatic adaptation to complex shapes

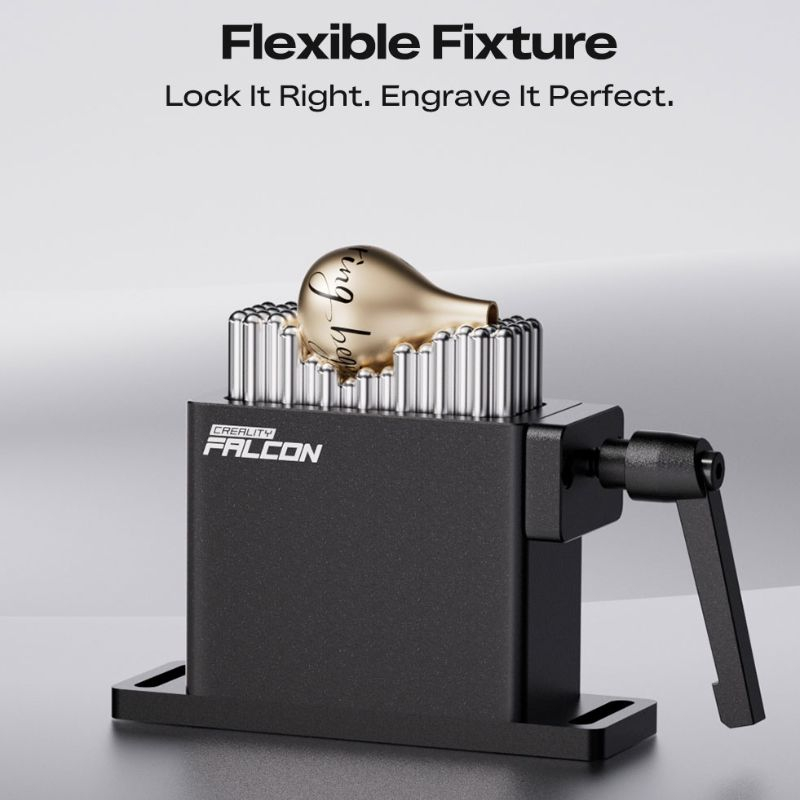

The system is based on a structure of movable pins that automatically adjust to the geometry of the part.

Whether cylindrical, spherical, or irregularly shaped objects, the holding is achieved quickly. This adaptability reduces preparation time and improves overall stability during engraving.

Fast and repeatable clamping for batch production

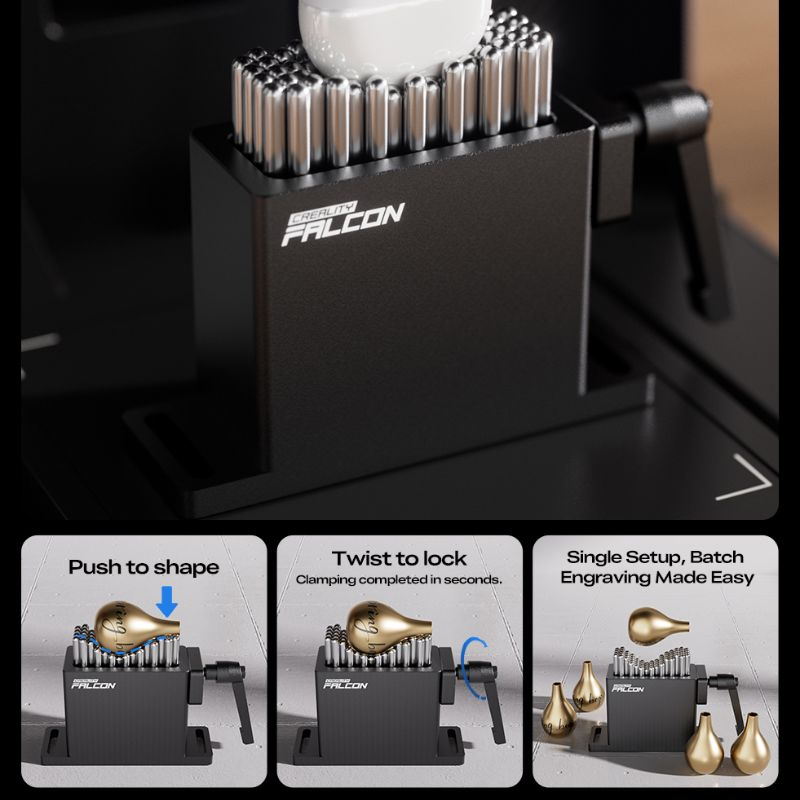

The push and twist mechanism allows quick setup of the fixture. In just a few seconds, the part is secured and ready for engraving.

Once configured, it can be reused for batch production without further adjustments, significantly optimizing manufacturing cycles.

Modular system for large or oversized parts

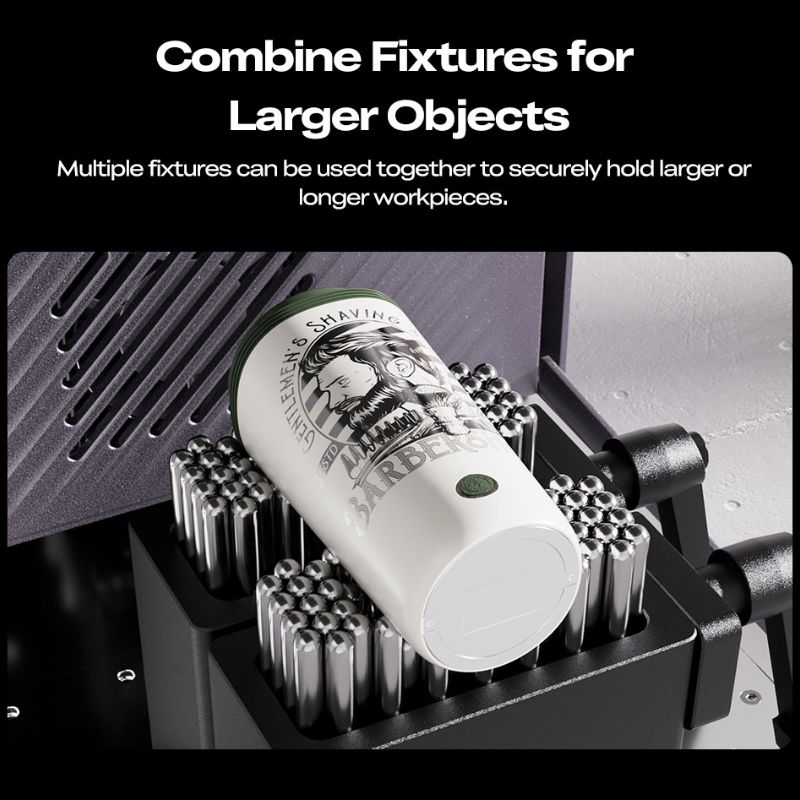

Multiple units can be combined to extend the holding surface. This modularity makes it possible to work on long or large objects while maintaining uniform stability.

Assembly remains simple and adapts to production constraints without modifying the workflow.

Technical advantages of the Creality Modular Fixture (Flexible Fixture) for laser engraving

High-precision adaptive pin structure

The fixture is based on a set of independent pins capable of adapting to the contours of the workpiece. This architecture allows secure holding of flat, curved, or irregular surfaces without requiring custom jigs. Contact is evenly distributed, which improves stability during engraving. This design also reduces vibrations and ensures consistent positioning even during long or repetitive production runs.

All-metal construction for intensive use

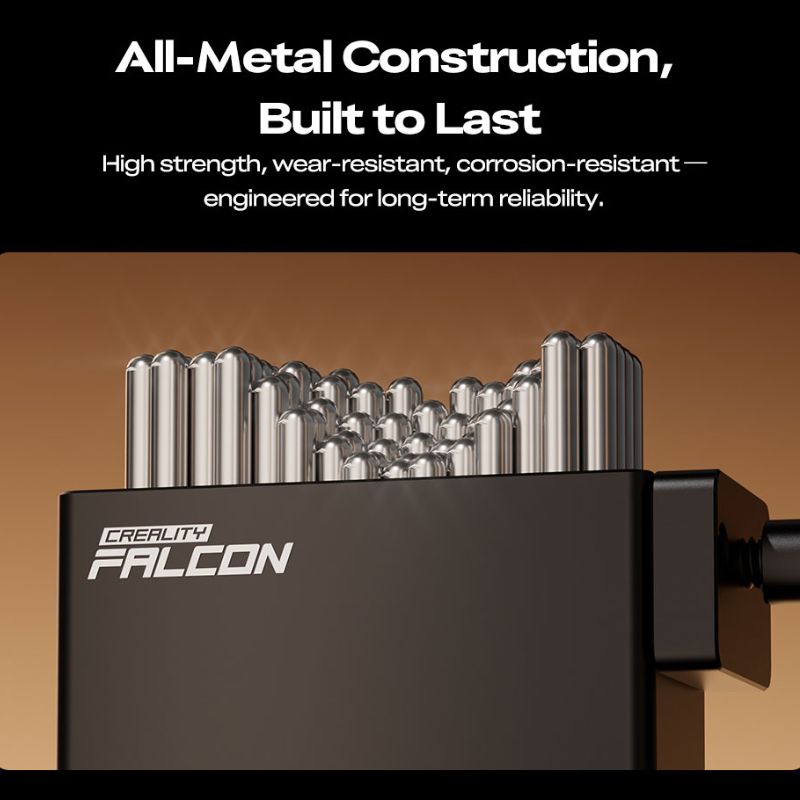

Fully made of metal, the modular fixture offers excellent mechanical strength and durability suited for production environments. It withstands repeated clamping cycles without loss of precision or rapid wear. Its corrosion-resistant structure allows long-term use in professional workshops. This robustness makes it a reliable accessory for users seeking a stable and durable solution for laser engraving operations.

Wide compatibility with laser engravers

The fixture is compatible with the majority of laser engravers on the market, provided the machine’s working height is respected. In some cases, a riser base may be required to ensure proper integration. It is fully compatible with the Creality Falcon T1, making it a flexible solution for various production environments and technical setups.

Optimized batch production workflow

Once the initial setup is completed, the fixture enables fast processing of multiple parts without reconfiguration. This repeatability is particularly valuable for batch production, where consistent positioning is essential. The time savings translate into improved overall efficiency, especially in personalization workshops and industrial environments requiring high-volume output.

Our opinion on the Creality Modular Fixture (Flexible Fixture)

The Creality Modular Fixture (Flexible Fixture) stands out for its ability to simplify the holding of complex parts without compromising stability. Its adaptive pin system provides real added value for engraving irregular objects, which are often difficult to secure with conventional solutions.

The possibility of combining multiple modules increases its relevance in production settings, particularly for long parts or large batches. Its robust design and ease of use make it a relevant accessory for users looking to optimize their laser engraving workflow.
