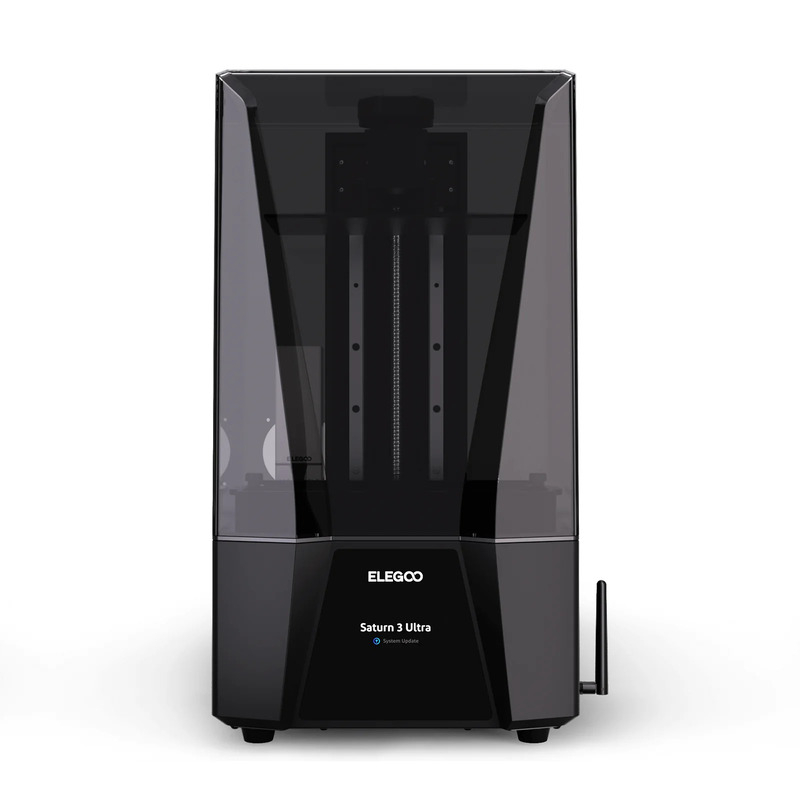

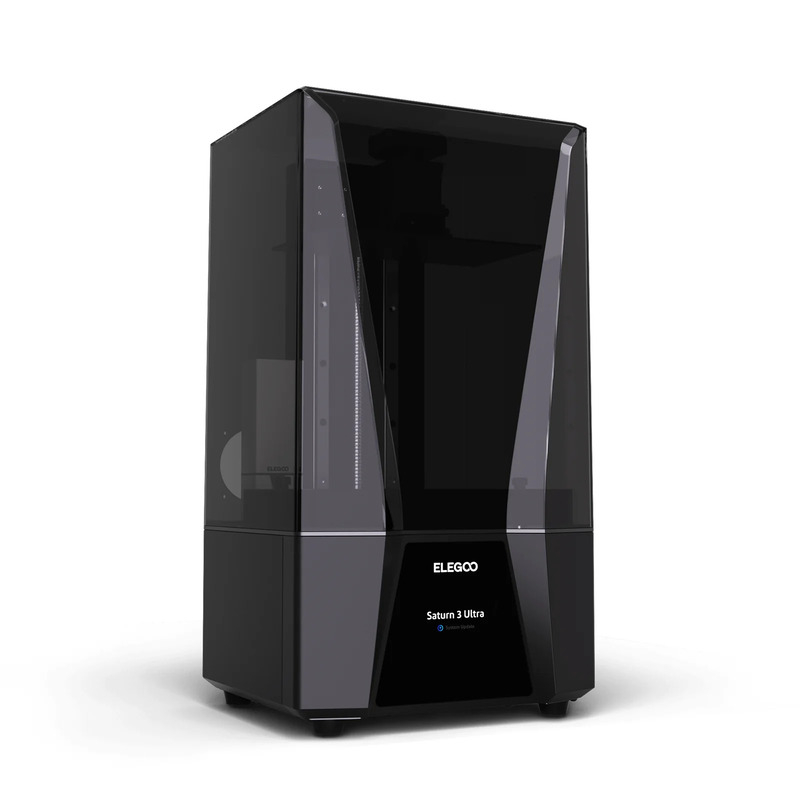

Starter Pack Elegoo Saturn 3 Ultra

Elegoo Saturn 3 Ultra - Ultimate speed and precision

The Elegoo Saturn 3 Ultra is the latest, improved version of the Saturn and Saturn 2, offering enhanced precision and advanced functionality. It features a 10-inch LCD monochrome screen with 12K resolution, which is an improvement on the 8K screen of the Saturn 2. This higher resolution allows for larger and more accurate prints.

What's more, the Saturn 3 Ultra offers an extended print volume, providing ample space for large prints.As anMSLA 3D printer, it combines precision with large-format printing capacity.

The 2 main differences with the Saturn 3 are that the Saturn 3 Ultra has a speed of 150 mm/h and a WIFI connection.

In addition to USB, the Saturn 3 Ultra offers Wi-Fi connectivity, supporting 2.4G and 5G networks. This enables files to be transferred at speeds of between 6 and 10 M/s from a smartphone or PC. What's more, the printer has a detachable antenna on the right-hand side.

Benefits of the Elegoo Saturn 3 Ultra

The ELEGOO Saturn 3 Ultra is a high-speed resin 3D printer that offers a quality introduction to professional resin 3D printing. Let's take a closer look at the features of this printer to get a better idea of its capabilities.

10-inch 12K monochrome screen LCD

Thanks to its LCD monochrome 10" 12K screen, the Saturn 3 Ultra allows high print speeds without compromising detail, even for high print volumes. Its resolution of 11520 x 5120 makes all the subtle details of the 3D object perfectly visible. What's more, the sophisticated cooling system ensures extended screen life LCD, while a pre-installed hardened protective film (9H) offers additional protection against impact.

Large print volume

With a generous print volume of 219 x 123 x 260 mm and a large 10-inch monochrome LCD screen, the ELEGOO Saturn 3 Ultra offers the ability to print larger prototypes and achieve higher curing efficiency. This allows you to produce larger models or several smaller models in a single print session, improving your productivity and expanding your creative possibilities.

High stability

The Saturn 3 Ultra is equipped with two linear guides along the Z axis, ensuring high stability and smooth movement of the print platen. This design ensures high precision and reliability when printing. What's more, this MSLA 3D printer offers impressive Z-axis resolution of up to 0.00125 mm. This high precision means you can create objects with fine detail and a high-quality finish.

Collimating Fresnel light source

The Saturn 3 Ultra is equipped with a Fresnel collimating light source consisting of 64 highly integrated UV LEDs. These LEDs work in synchronisation with the Fresnel lens of the FCL system to produce a uniform beam of light at a wavelength of 405 nm. This configuration ensures exceptional print accuracy and a smoother surface finish on printed models. Thanks to this advanced feature, the most delicate details of your designs will be perfectly reproduced with great accuracy.

Odour-free printing environment

The Saturn 3 Ultra is equipped with an air filtration system that includes an activated carbon filter. This filter is designed to absorb most of the resin odours generated during the printing process. Thanks to this feature, the printer provides a fresh, odour-free printing environment, improving your comfort and allowing you to work in a pleasant space. This is particularly important when using the printer in enclosed or shared environments.

Screen protection with tempered glass

The Saturn 3 Ultra is equipped with scratch-resistant tempered glass with a hardness of 9H, which is replaceable. This glass adapts perfectly to the printer's screen, offering effective protection against potential scratches. Not only does it protect the screen from damage, it also preserves print detail by ensuring a smooth, transparent surface. If the glass becomes worn or scratched, it can be easily replaced, extending the life of your printer and maintaining optimum print quality.

A metal tray with PFA film

PFA (Polymer Film Assist) technology makes it easy to remove printed models from the ELEGOO Saturn 3 Ultra, while reducing release tension. This technology makes it easier for the models to detach from the printing plate, simplifying the post-processing process. Reducing the release tension helps to minimise the risk of distortion or damage when removing the templates, ensuring more reliable results and better print quality.

Resins compatible with Elegoo Saturn 3 Ultra

We recommendusing 8K resins from Elegoo or Forshape. For example, the Grey 8K resin from Forshape is very high quality and very affordable, and will produce prints with a very high level of detail.

You can still use a standard resin, but you won't be able to obtain the highest level of detail.

Our opinion of the Elegoo Saturn 3 Ultra

If you're looking for a resin 3D printer that combines high speed with 12K resolution, the Elegoo Saturn 3 Ultra is an excellent choice.

In addition to its advanced features, it offers quality support and availability of spare parts. This means you can enjoy reliable after-sales service and easily find the spare parts you need. With these additional benefits, the Elegoo Saturn 3 Ultra guarantees a complete and satisfying user experience.

Polyfab3D , as an official retailer of the Elegoo brand in France, is there to support you every day!
