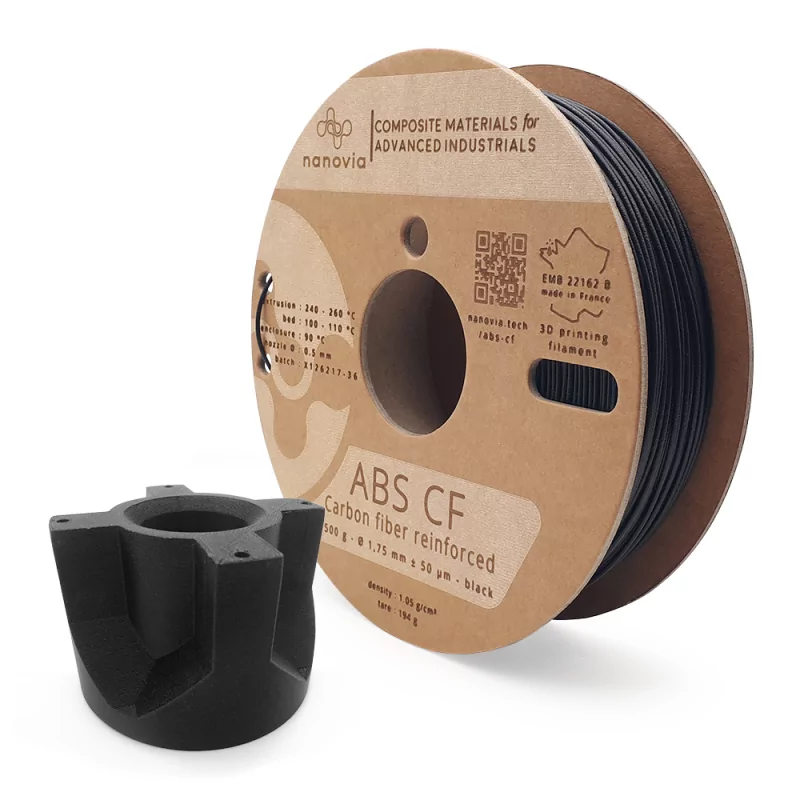

ABS CF Nanovia (reinforced with carbon fiber) - 2.85mm - 500g
Ref. naabscf2050bk
Nanovia ABS-CF filament is a blend of ABS and carbon fibers.

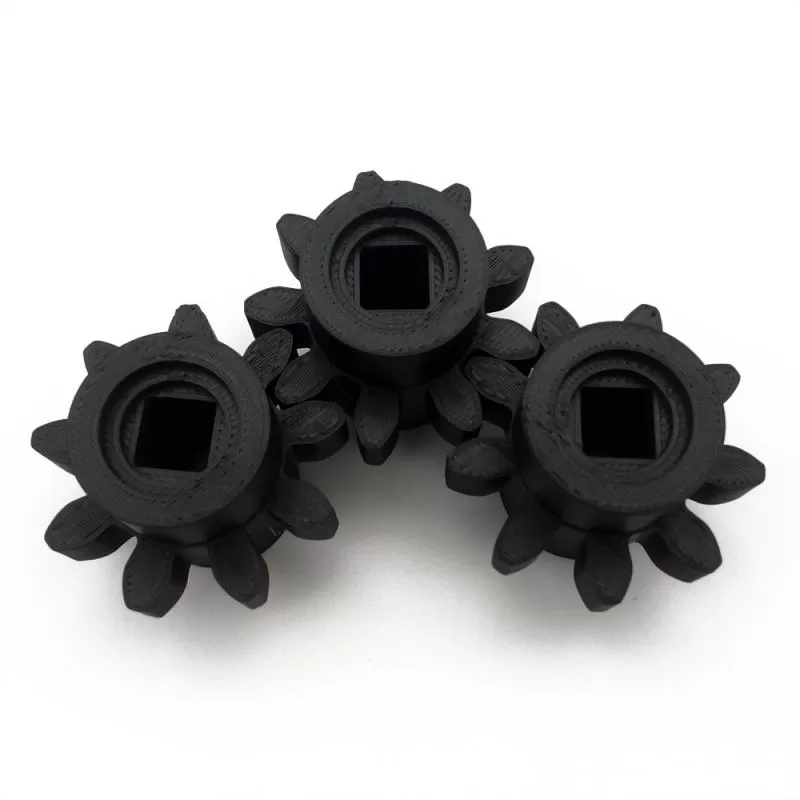

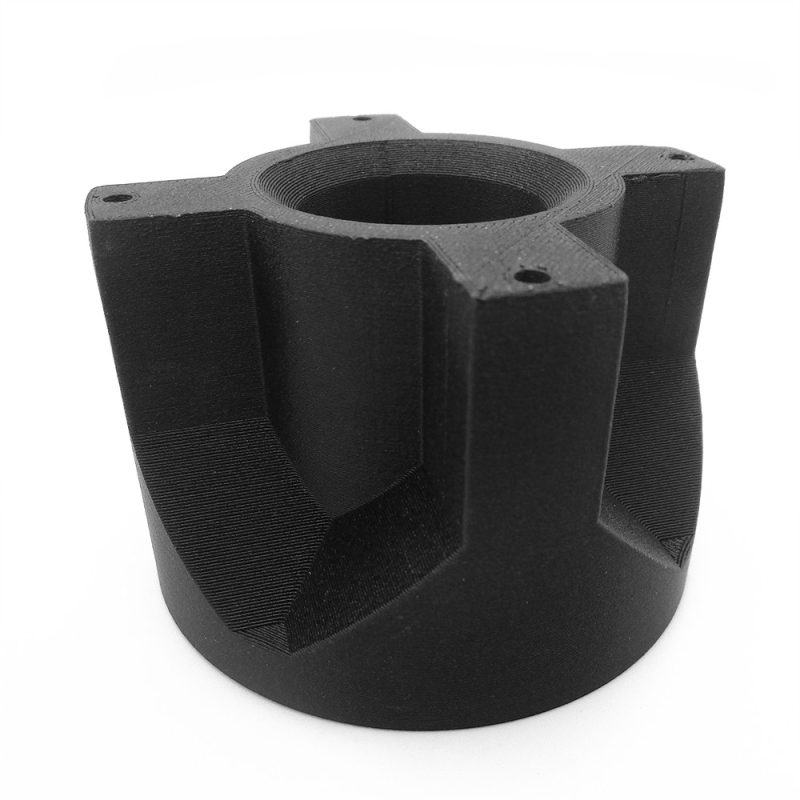

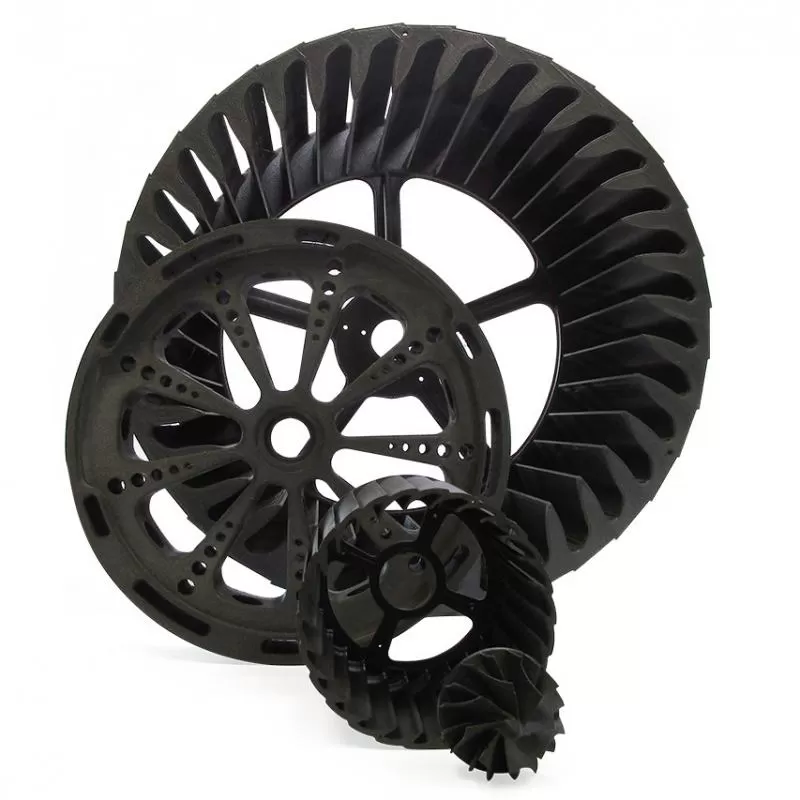

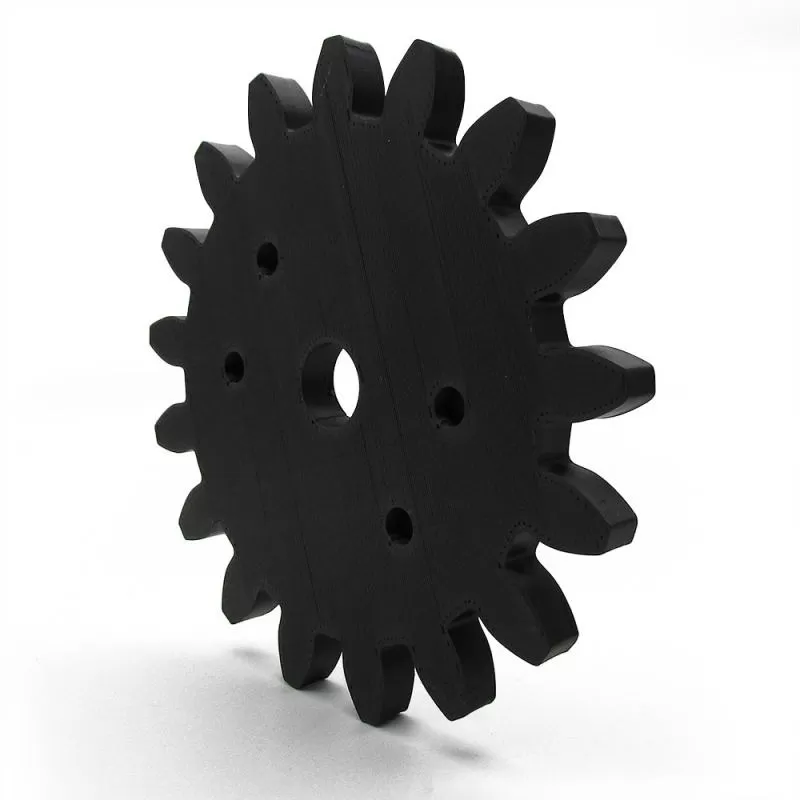

The carbon fibers enhance the mechanical properties of ABS and make printing easier by reducing warping and bed detachment. Nanovia ABS-CF filament is ideal for printing functional parts, mechanical components, or tooling.
€46.50 excl. VAT
Our experts are at your service to answer your questions and provide advice at info@polyfab3d.com.
Delivery within 48/72 hours
Order before 1pm. Same day shipping
Free delivery
Free delivery near you from €69.90
Premium support
Our teams are on hand to answer all your questions
Over 3500 products
A wide choice of products from the biggest brands
ABS-CF Nanovia: a professional technical filament
The Nanovia ABS-CF filament is a 3D printing material made of ABS and carbon fibers. ABS is widely used in the industry for producing parts requiring strong mechanical and thermal properties.
This Nanovia ABS-CF 3D printer filament retains all the advantages of standard ABS. The carbon fibers enhance the material, providing even greater mechanical resistance and reducing warping during printing.
Key strengths of ABS-CF Nanovia:
Superior mechanical strength compared to native ABS: Reinforced with carbon fibers, Nanovia's ABS-CF offers outstanding mechanical resistance.
Excellent bed adhesion: The carbon fiber composition greatly reduces the warping commonly seen with standard ABS.
Thermal resistance: With a heat resistance of around 100°C, ABS-CF Nanovia is significantly more thermally resistant than PLA or PETG.
Usage tips for Nanovia ABS-CF filament:
Like traditional ABS, this material requires careful printing conditions. However, it is less prone to warping, even without a heated chamber.
We recommend using appropriate adhesive, a closed printing chamber, a bed temperature above 90°C, and a hardened steel nozzle to fully utilize the potential of this carbon-reinforced ABS.
- 🎯 We collaborate with businesses.
- 📦 Stock in Europe
- 🚚 Ships within 24 hours
- 🔐 Secure payments
- 🔙 14 days to change your deww
- 📱 Need advices ? Contact technical support
Specifications for ABS CF Nanovia (reinforced with carbon fiber) - 2.85mm - 500g
Technology / Product
- Technology
- FDM
- Material
- ABS
- Visual Appearance
- Opaque, Smooth alcohol, Mat Carbone
- Made in France
- Yes
- Diameter
- 2.85 mm
- Sensitivity to humidity
- Strong
- Application
- Production, Functional part
- Odour
- Yes
- Harmful
- Yes
- Level of difficulty
- Intermediate
- Brand
- Nanovia
- Type of product
- 3D Filament
- Colour
- Black
- Net weight
- 500 g
Technical values
- Glass transition temperature
- 101 °C
- Deflection temperature under load (1.8 MPa)
- 90 °C
- Charpy
- 5.18 kJ/m² of energy
- Resistors
- Mechanical engineering
- Composite
- Carbon
- Tensile modulus
- 2700 Mpa
- Maximum elongation at break
- 10 %
- Density
- 0.94 g/cm3
Extrusion
- Nozzle type
- Tempered steel, Ruby
- Type of consumable
- Non-proprietary filament (open system)
- Min. plateau temperature
- 90 °C
- Max. tray temperature
- 120 °C
- Min. extrusion temperature
- 240 °C
- Max. extrusion temperature
- 260 °C
- Min. speed
- 20 mm/s
- Max. speed
- 60 mm/s
- Minimum nozzle diameter
- 0.5 mm
- Bowden compatibility
- Yes
- Warping sensitivity
- Low
- AMS compatible
- No
Specific equipment
- Closed printing enclosure
- Yes
- Filtration
- HEPA, Coal
Installation / Prerequisites
- Type
- Filament on spool
- Box supplied
- Yes
- Coil material
- Plastic
