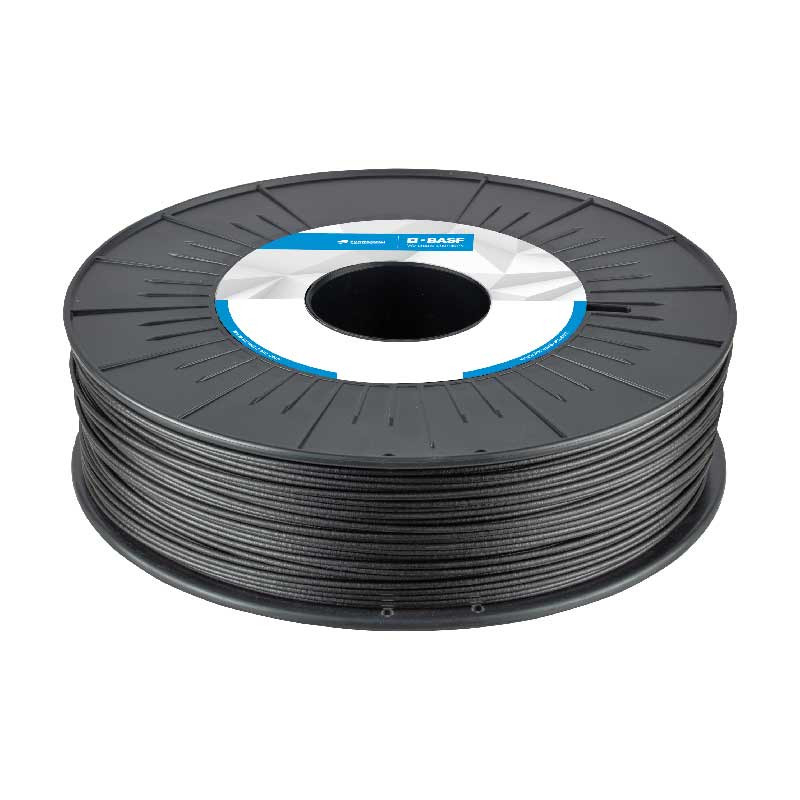

Ultrafuse PAHT CF15 BASF - 1.75 mm - 750g
Ref. PAHT-4500a075
Ultrafuse® PAHT CF15 is a filament loaded with 15% carbon fiber and combines high temperature and chemical resistance with exceptional mechanical strength. Thanks to its excellent dimensional stability, your printed part will exhibit low shrinkage during printing, ensuring an easy printing experience. The nature of the fibers ensures that parts remain very strong and very rigid.
€74.90 excl. VAT
Our experts are at your service to answer your questions and provide advice at info@polyfab3d.com.
Delivery within 48/72 hours
Order before 1pm. Same day shipping
Free delivery
Free delivery near you from €69.90
Premium support
Our teams are on hand to answer all your questions
Over 3500 products
A wide choice of products from the biggest brands
Usage of Ultrafuse PAHT CF15 Filament
Ultrafuse PAHT CF15 is a high-performance 3D printing filament that opens new fields of application in FFF printing. Alongside its advanced mechanical properties, dimensional stability, and chemical resistance, it offers very good processability.
It works on any filament 3D printer equipped with a hardened nozzle.
Furthermore, Ultrafuse PAHT CF15 is compatible with BVOH soluble support material and HIPS, allowing the printing of complex geometries in demanding environments.
Ultrafuse PAHT CF15: Key Features
- Chemical resistance superior to most PA grades
- High temperature resistance up to 150°C
- Strong and rigid parts
- Excellent dimensional stability
- Easy processing
- Low moisture absorption
Our Recommendations for BASF Ultrafuse PA-HT CF15
Printing Ultrafuse PA-HT CF15 from BASF is straightforward. A 3D printer capable of extruding the filament between 260 and 280°C at a speed range of 30 to 80 mm/s is required. The heated bed should be set between 100 and 120°C. BASF recommends using a light layer of adhesive to protect the bed during printing.
The Magigoo PRO PA adhesive is perfectly suited for this. Another point to consider is the high abrasion caused by this filament on most extrusion systems. The high glass fiber content in this PAHT CF15 requires using a reinforced nozzle with a minimum diameter of 0.5 mm.
- 🎯 We collaborate with businesses.
- 📦 Stock in Europe
- 🚚 Ships within 24 hours
- 🔐 Secure payments
- 🔙 14 days to change your deww
- 📱 Need advices ? Contact technical support
Specifications for Ultrafuse PAHT CF15 BASF - 1.75 mm - 750g
Technology / Product
- Technology
- FDM
- Material
- PA
- Visual Appearance
- Opaque, Mat, Carbon
- Diameter
- 1.75 mm
- Sensitivity to humidity
- Strong
- Application
- Prototyping, Functional part
- Odour
- Yes
- Harmful
- Yes
- Level of difficulty
- Intermediate
- Brand
- BASF
- Type of product
- 3D Filament
- Net weight
- 750 g
Technical values
- Deflection temperature under load (0.45 MPa)
- 145 °C
- Deflection temperature under load (1.8 MPa)
- 92 °C
- Charpy
- 19.3 kJ/m² of energy
- Resistors
- Mechanical engineering, Wear and tear
- Composite
- Carbon
- Percentage of fibre
- 15 %
- Tensile modulus
- 8250 Mpa
- Flexural modulus
- 8260 Mpa
- Tensile yield strength
- 103 MPa
- Tensile strength
- 160 MPa
- Maximum elongation at break
- 1.8 %
- Density
- 1.23 g/cm3
Extrusion
- Nozzle type
- Tempered steel, Ruby
- Type of consumable
- Non-proprietary filament (open system)
- Min. plateau temperature
- 100 °C
- Max. tray temperature
- 120 °C
- Min. extrusion temperature
- 260 °C
- Max. extrusion temperature
- 280 °C
- Min. speed
- 30 mm/s
- Max. speed
- 80 mm/s
- Minimum nozzle diameter
- 0.5 mm
- Bowden compatibility
- Yes
- Warping sensitivity
- Average
- AMS compatible
- No
Specific equipment
- Closed printing enclosure
- Yes
- Filtration
- HEPA, Coal
Installation / Prerequisites
- Type
- Filament on spool
- Box supplied
- Yes
- Coil material
- Plastic
