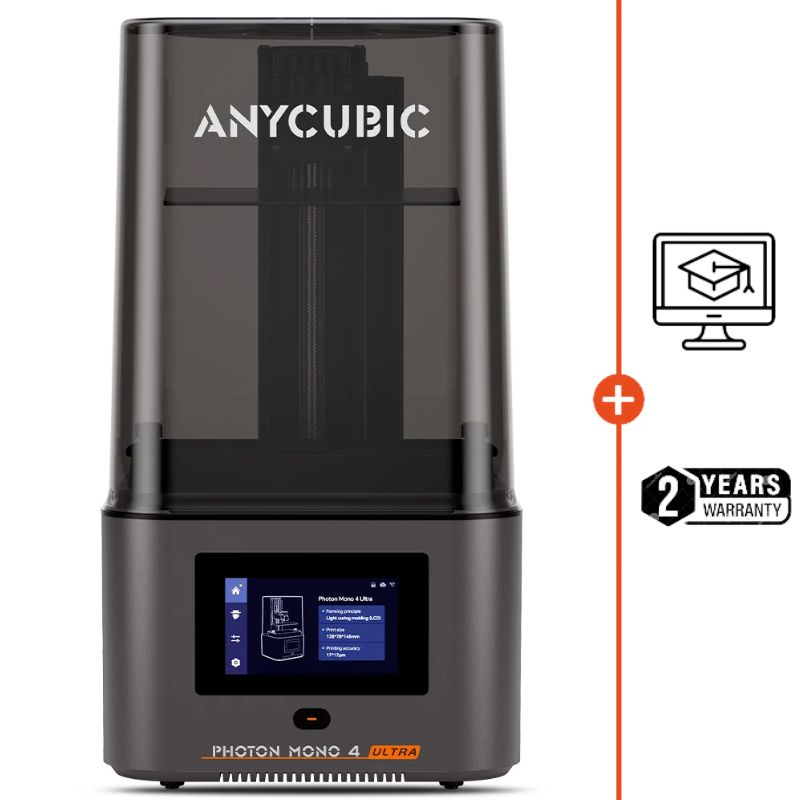

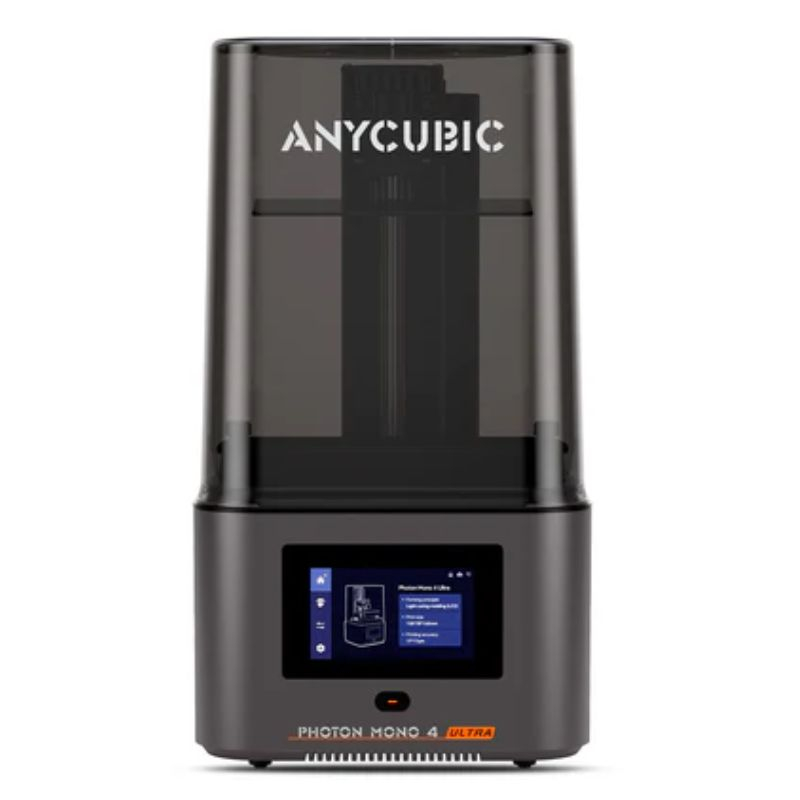

Anycubic Photon Mono 4 Ultra

Anycubic Photon Mono 4 Ultra: advanced resin performance made accessible

The Anycubic Photon Mono 4 Ultra is a machine offering excellent precision and speed while remaining accessible to a wide range of users. Equipped with a 7″ 10K monochrome screen (9024 × 5120 px), it achieves an XY resolution of 17 × 17 µm for fine details and perfectly smooth surfaces.

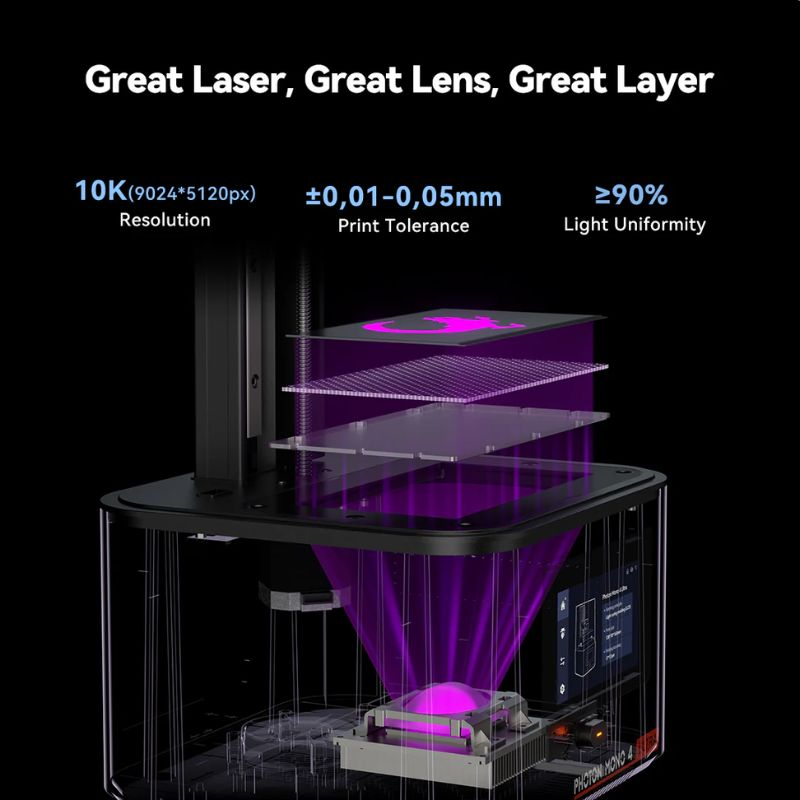

Its COB light source, combined with a Fresnel lens and a uniformity algorithm, ensures consistent exposure across the entire build area, minimizing optical artifacts.

With speeds of up to 120 mm/h and a build volume of about 2.2 L, the Mono 4 Ultra combines speed, precision, and efficiency for miniatures, prototypes, and complex technical parts.

Why choose the Anycubic Photon Mono 4 Ultra – 3 key benefits

10K optical precision

The 7″ 10K monochrome screen with 17 µm pixels produces extremely detailed parts, faithful to CAD models. Ideal for miniatures, jewelry, or complex mechanical pieces.

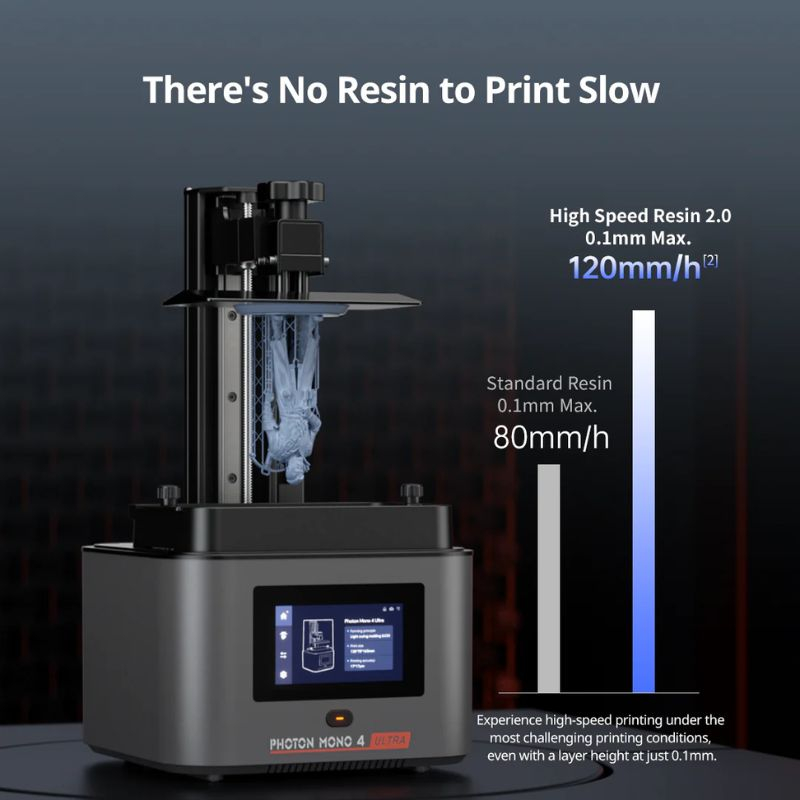

Optimized printing speed

Capable of reaching up to 120 mm/h with high-speed resin, this printer reduces production time while maintaining excellent surface quality.

Uniform and controlled light

The combination of COB light source and Fresnel lens with uniformity algorithm ensures even exposure and minimizes light gradients, guaranteeing flawless finishes.

Photon Mono 4 Ultra: advantages and technical features

ACF release film

The ACF film facilitates part removal, extends the vat’s lifespan, and reduces defects caused by excessive adhesion.

Light uniformity ≥ 90 %

The uniformity algorithm ensures consistent exposure across the build plate, guaranteeing dimensional accuracy and smooth surfaces.

2.2 L build volume

Build volume of 153.4 × 87 × 165 mm to accommodate medium-sized parts or multiple objects simultaneously, ideal for series or complex projects.

Laser-engraved build plate

The engraved aluminum plate ensures better adhesion of first layers, reducing early print failures.

Z-axis precision of 20 µm

The linear Z-axis guide ensures optimal layer consistency, essential for complex or tall prints.

Smart monitoring

Integrated sensors monitor resin level and residues, alerting users for proactive maintenance and fewer failed prints.

4.3″ ergonomic touchscreen

The touchscreen interface allows simple, direct machine control even without a PC, ensuring smooth daily use.

Compatible software and 3D printing benefits

The Photon Mono 4 Ultra works with Photon Workshop, a slicer optimized to exploit the machine’s full potential. It allows automated support management, precise exposure adjustments, and quick print preparation. Compatible with STL/OBJ files and easily transferable via USB, it suits both beginners and advanced users.

The machine can also integrate into a modern workflow via Wi‑Fi or LAN, offering maximum flexibility for detailed projects and technical prototypes.

Expert review of the Anycubic Photon Mono 4 Ultra

The Photon Mono 4 Ultra stands out for its rare combination of 10K precision and high printing speed. The 10K monochrome screen and COB light source with Fresnel lens reduce light gradients and ensure optimal quality on every layer. Advanced monitoring features, engraved plate, and linear Z-guide guarantee reliable and repeatable prints.

Capable of producing extremely detailed miniatures or complex technical prototypes quickly, this printer is an excellent choice for makers seeking a perfect balance of speed and precision.
