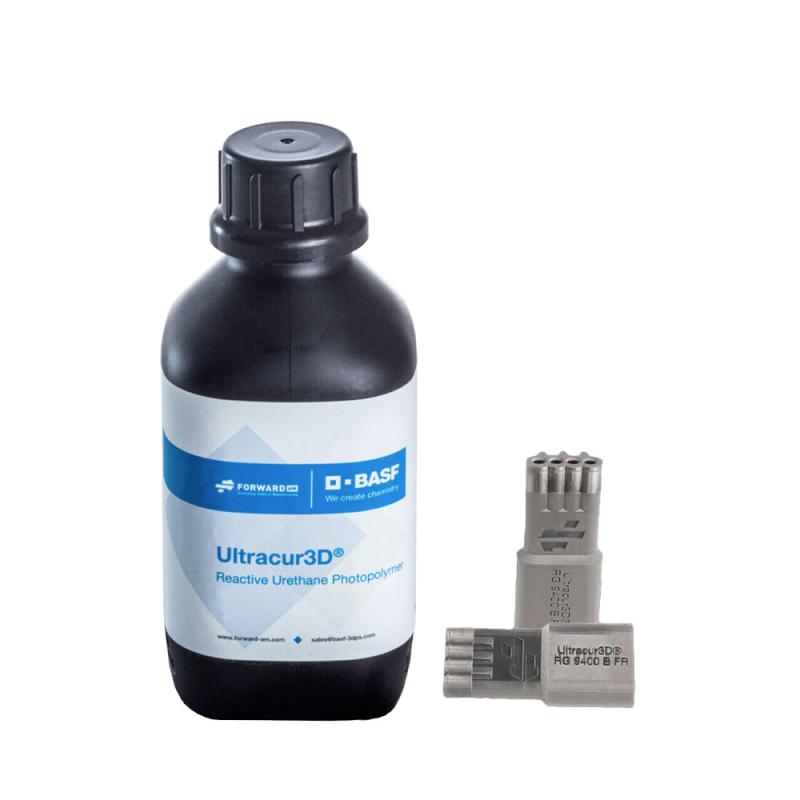

Ultracur3D® RG 9400 B FR - 1 kg

Ref. 300393

The Ultracur3D® RG 9400 B FR distinguishes itself from other flame retardant materials through its low viscosity and ease of handling and printing.

Available in black
Flame retardant (UL 94 V-0 to 2 mm)
Very high temperature resistance (HDT B > 250°C)
Young's modulus: 3,900 MPa

€210.00 ^{excl. VAT}

In Stock Free shipping

💰 Your purchases with 0% tax!

From 2, only €203.70 / unit. 3%

From 5, only €199.50 / unit. 5%

From 10, only €193.20 / unit. 8%

Quantity

Ultracur3D RG 9400B EN

RG 9400 B FR is a flame-retardant resin with UL 94 V-0 classification and superior HDT. Ultracur3D® RG 9400 B FR is a rigid, flame-retardant material that can be used for production parts requiring UL 94 V-0 classification. The material is halogen-free and, in addition to its flame-retardant properties, has a very high HDT, making it ideal for demanding applications in electronics, custom jigs and fixtures and spare parts for industrial environments.

Flame-retardant and self-extinguishing

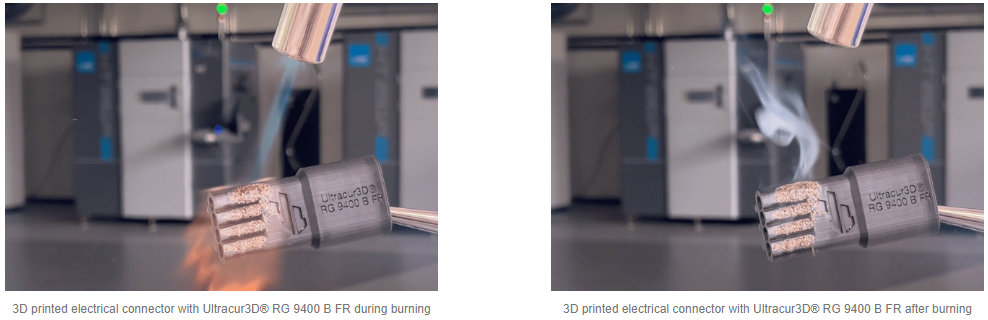

Flame-retardant materials will stop burning once the flame source is removed. This feature ofUltracur3D® RG 9400 B FR makes it ideal for demanding electronics applications such as cable trays, electrical connectors, battery boxes and high power electrical applications. The material is also suitable for custom jigs and fixtures as well as replacement parts for industrial environments with high ignition and HDT sources.

RG 9400B FR highlights

Flame retardant (UL 94 V-0 to 2 mm)
Very high temperature resistance (HDT B > 250°C)
Young's modulus: 3,900 MPa

🎯 We collaborate with businesses.
📦 Stock in Europe
🚚 Ships within 24 hours
🔐 Secure payments
🔙 14 days to change your deww
📱 Need advices ? Contact technical support

Fiche technique - RG 9400 B FR 7.2M

Guide - RG 9400 B FR 706.8k

SDS - Ultracur3D RG 9400 B FR 410.88k

Specifications for Ultracur3D® RG 9400 B FR - 1 kg

Technology / Product

Technology: DLP
Material: Resin Tough
Visual Appearance: Mat
Application: Production, Functional part
Odour: Yes
Harmful: Yes
Level of difficulty: Novice
Brand: BASF
Type of product: 3D resin
Colour: Black, Transparent
Net weight: 1 kg

Technical values

Deflection temperature under load (0.45 MPa): 238 °C
Resistors: Mechanical engineering, Wear and tear
Tensile yield strength: 76 MPa
Tensile strength: 111 MPa
Maximum elongation at break: 3.15 %
Density: 1.2 g/cm3

Polymerization / Resin

Wavelength: 405 nm
Cleaning: Alcohol (IPA)

Specific equipment

Filtration: HEPA, Coal
