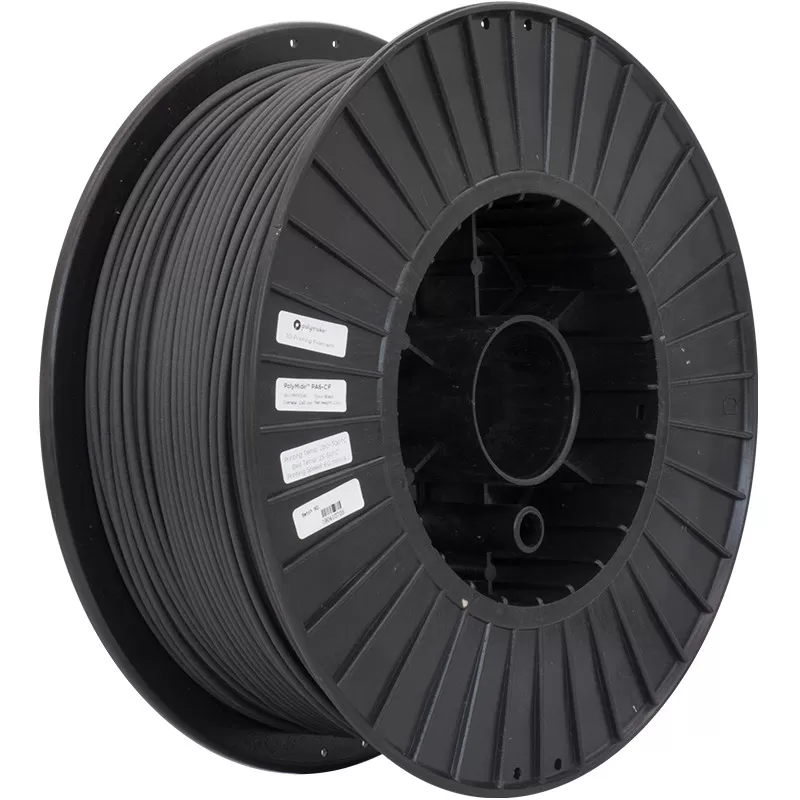

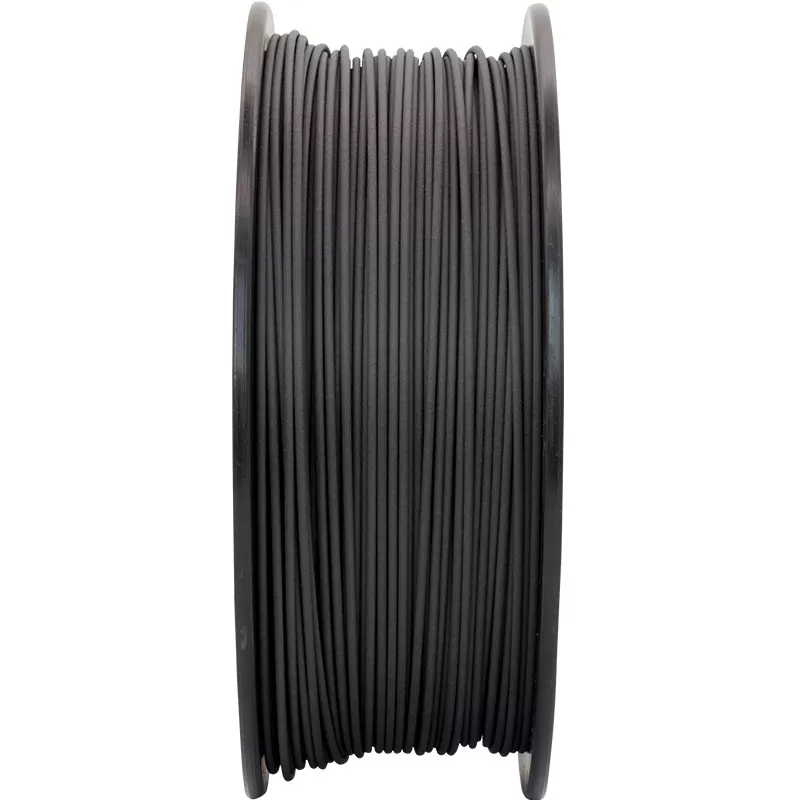

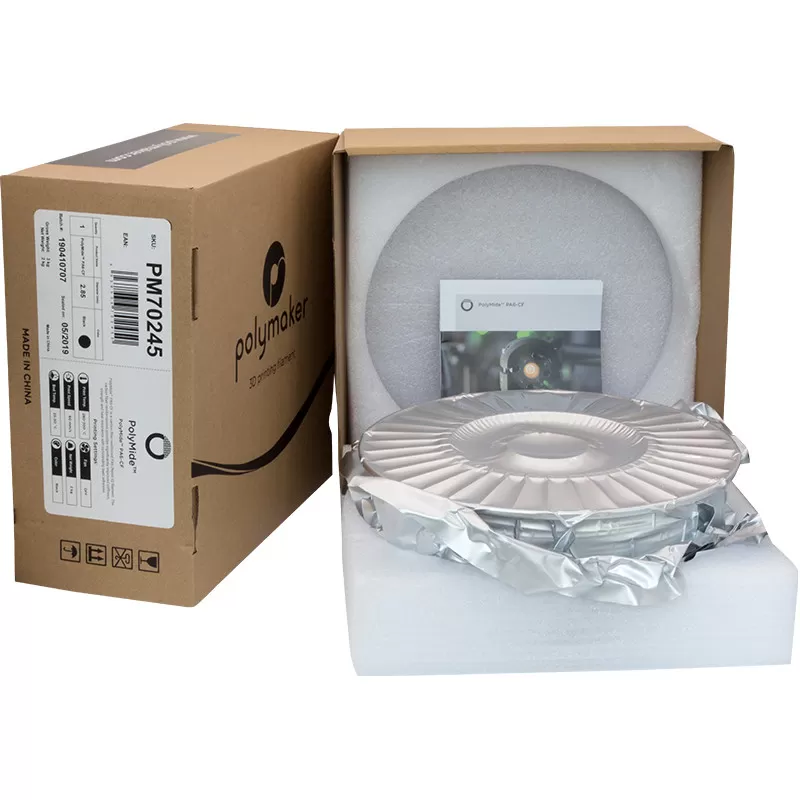

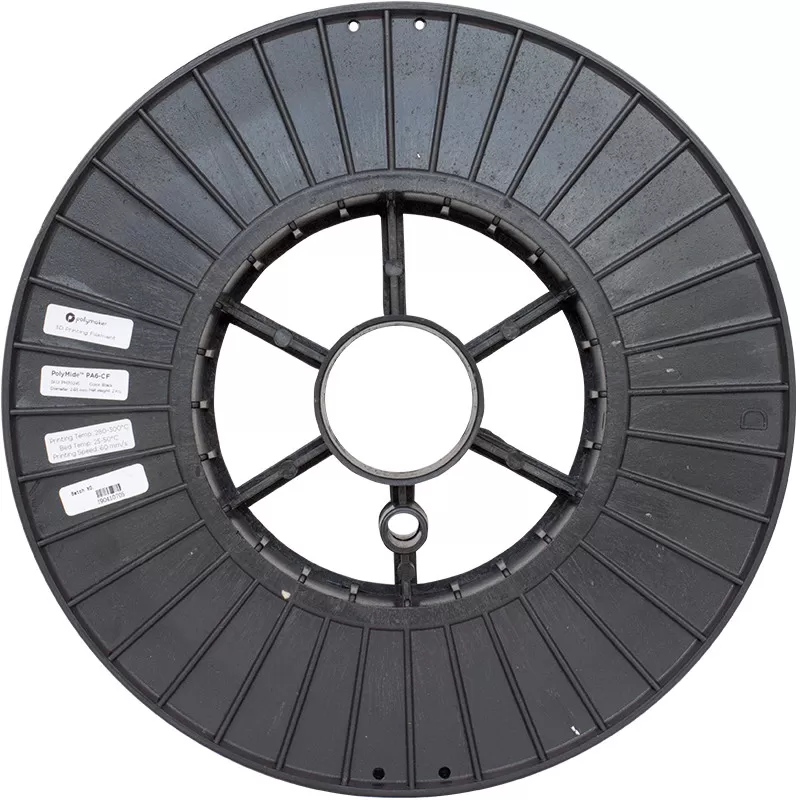

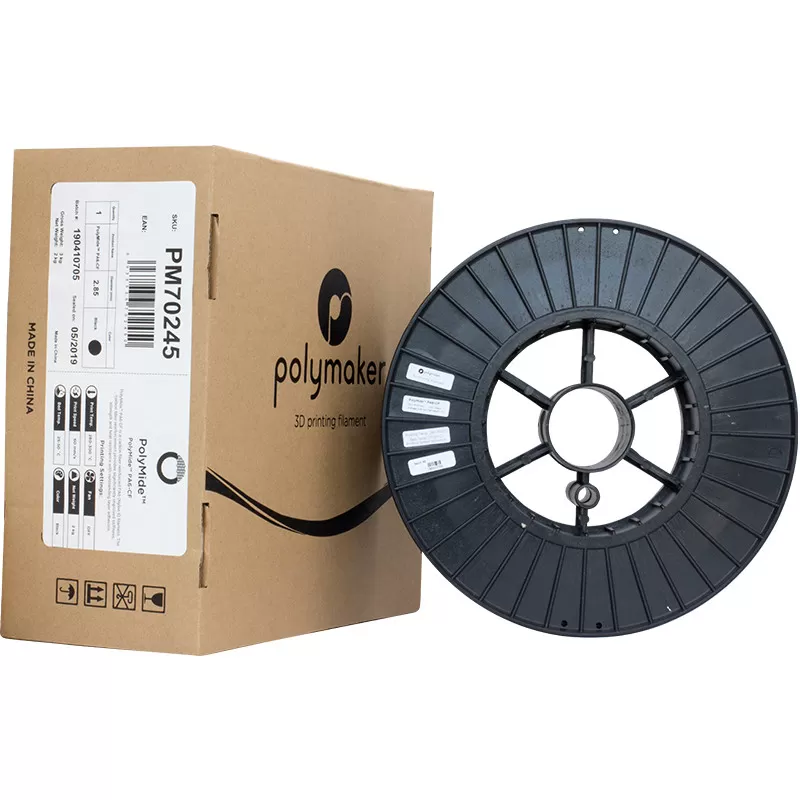

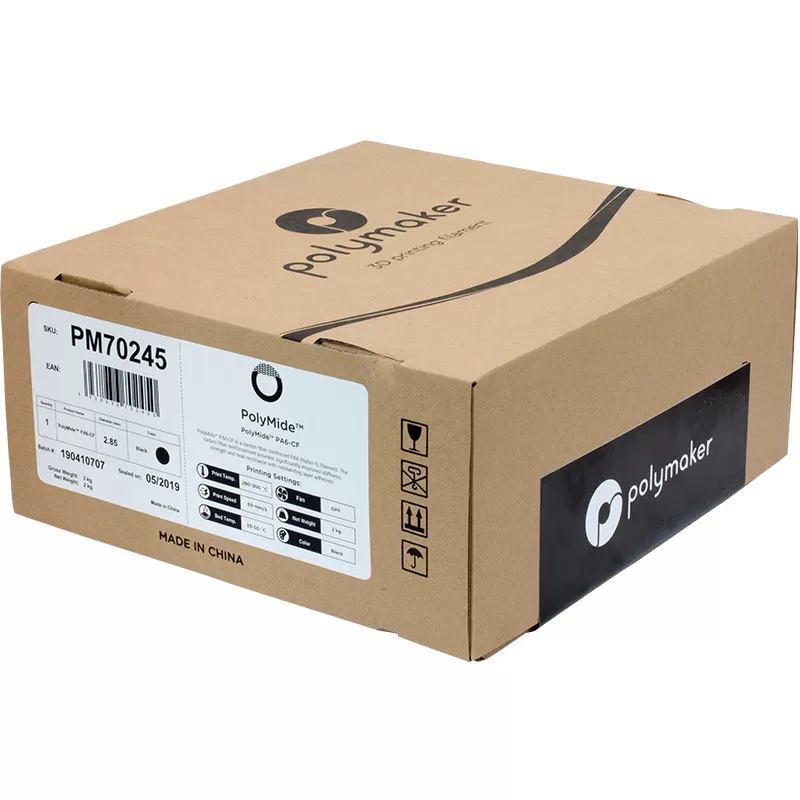

Polymide PA6-CF Black - 2.85mm - 2 kg

Ref. PG03004

The PolyMide PA6-CF is a PA6 (nylon 6) filament reinforced with carbon fiber. This material has excellent thermal and mechanical properties, without affecting the layer adhesion.

Sold out

The product is no longer available on our website.

However ✨, here is a new arrival and the product we recommend:

View this product

Polymide PA6-CF Noir - 2.85mm - 500 g

Questions des clients

Question de raphael C.

hello, what is the size (length) of carbon fibers? Thank you, cordially.

Réponse de Polyfab3D

Hello Sir, Unfortunately Polymaker does not provide information on the length of the fibres in this filament. On the safety sheet available for download on this product page, the only information available is the percentage of fiber, which is around 20 to 30%. We remain at your disposal. Well cordially,

Vous ne trouvez pas la réponse à votre question ?

Regular price €53.94 Price €43.15

Delivery within 48/72 hours

Order before 1pm. Same day shipping

Free delivery

Free delivery near you from €69.90

Premium support

Our teams are on hand to answer all your questions

Over 3500 products

A wide choice of products from the biggest brands

Use of PolyMide PA6-CF

The PolyMide PA6-CF filament, with its static resistance and resistance to thermal deflection, is an ideal material for printing jigs and electronic assemblies.

PolyMide PA6-CF: Key Features

Good layer adhesion: The PolyMide PA6-CF Black filament provides excellent layer adhesion.

Antistatic: The PolyMide PA6-CF Black from Polymaker is a material that prevents the formation of static electricity.

Thermal resistance: The PolyMide PA6-CF is a material capable of withstanding high temperatures.

Our usage recommendations

3D printing with the PolyMide PA6-CF Black filament should be done at an extrusion temperature of 280 to 300°C and a print speed of 60 to 70mm/s. It is recommended to use a heated bed with a temperature of 25 to 50°C (maximum).

The use of an abrasion-resistant nozzle is also recommended.

  • 🎯 We collaborate with businesses.
  • 📦 Stock in Europe
  • 🚚 Ships within 24 hours
  • 🔐 Secure payments
  • 🔙 14-day returns
  • 📱 Need advices ? Contact technical support

A question? Need help? Contact us, it's a pleasure to help you.

✉️ Contact us

Our team is available from Monday to Friday, from 10 am to 12 pm and from 2 pm to 5 pm.

Specifications for Polymide PA6-CF Black - 2.85mm - 2 kg

Technology / Product

Technology
FDM
Material
PA
Visual Appearance
Opaque, Mat, Carbon
Diameter
2.85 mm
Sensitivity to humidity
Strong
Application
Prototyping, Functional part
Odour
Yes
Harmful
Yes
Level of difficulty
Intermediate
Type of product
3D Filament
Colour
Black
Net weight
2 kg

Technical values

Glass transition temperature
74 °C, 2 °C
Deflection temperature under load (0.45 MPa)
215 °C
Deflection temperature under load (1.8 MPa)
196 °C
Charpy
20 kJ/m² of energy
Resistors
Mechanical engineering, Wear and tear
Composite
Carbon
Percentage of fibre
20 %
Tensile modulus
6500 Mpa
Flexural modulus
7350 MPa
Tensile yield strength
93 MPa
Tensile strength
160 MPa
Density
1.17 g/cm3

Extrusion

Nozzle type
Tempered steel, Ruby
Type of consumable
Non-proprietary filament (open system)
Min. plateau temperature
25 °C
Max. tray temperature
50 °C
Min. extrusion temperature
280 °C
Max. extrusion temperature
300 °C
Min. speed
60 mm/s
Max. speed
60 mm/s
Minimum nozzle diameter
0.5 mm
Bowden compatibility
Yes
Warping sensitivity
Average
Material Loader
Bambu Lab AMS, Anycubic ACE, Creality CFS, Ultimaker Air Manager, Bambu Lab AMS HT, Bambu Lab AMS Lite, Bambu Lab AMS 2 Pro, Anycubic ACE 2 Pro

Specific equipment

Closed printing enclosure
Yes
Filtration
HEPA, Coal

Installation / Prerequisites

Type
Filament on spool
Box supplied
Yes
Coil material
Plastic
