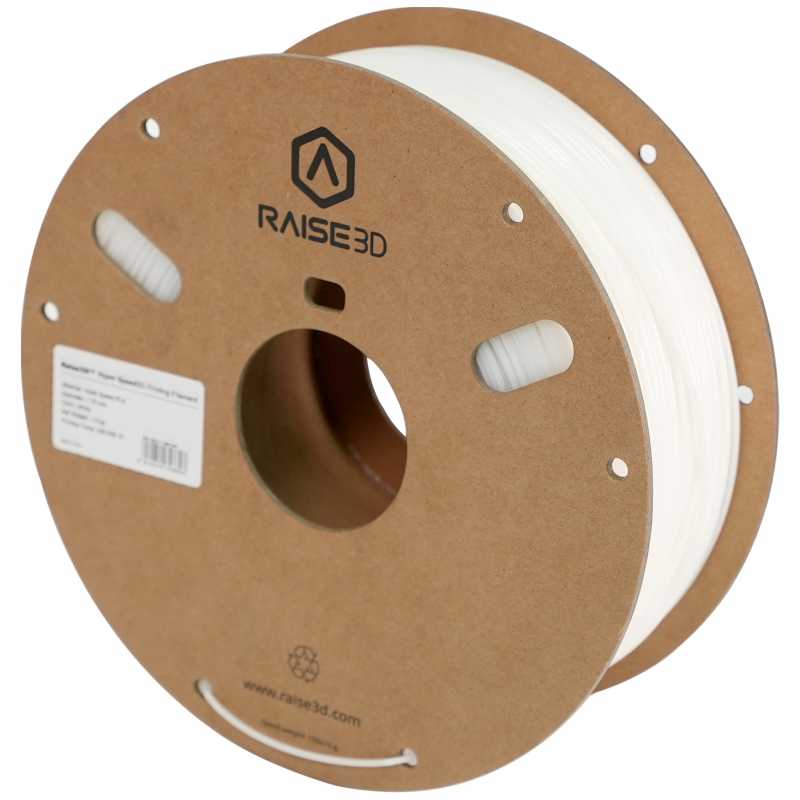

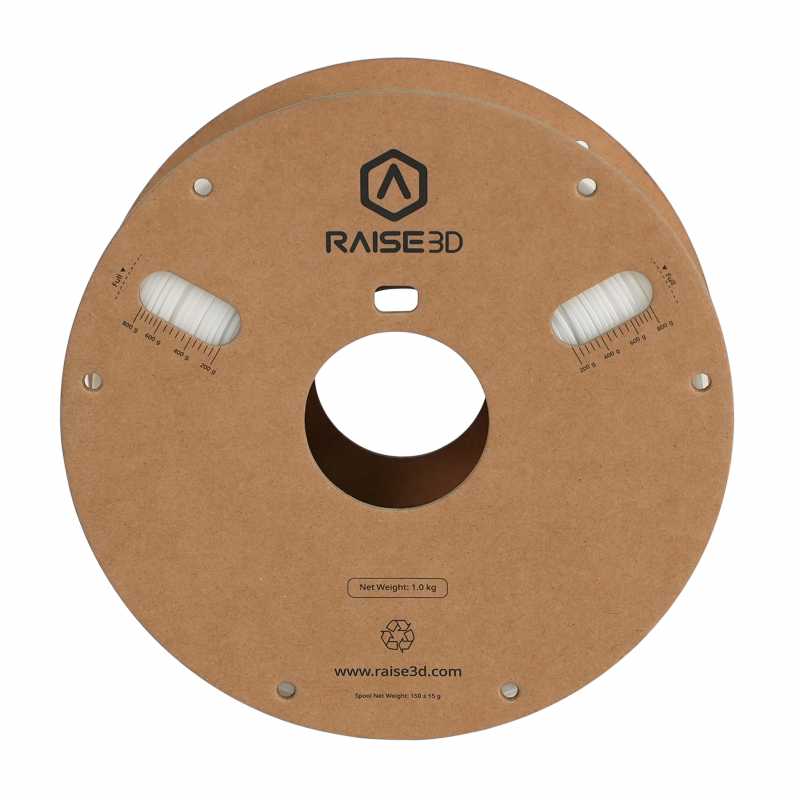

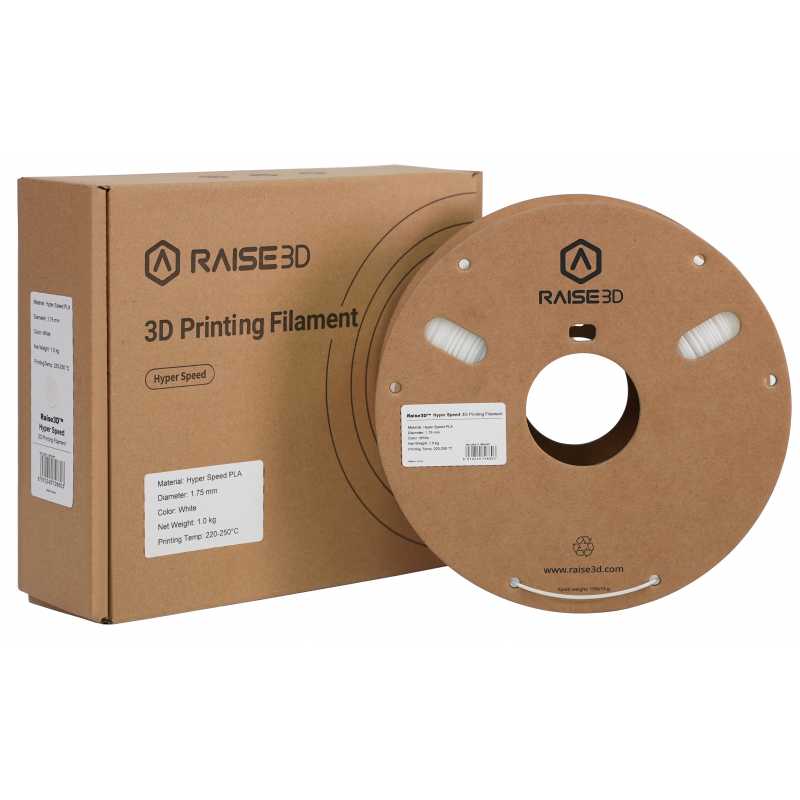

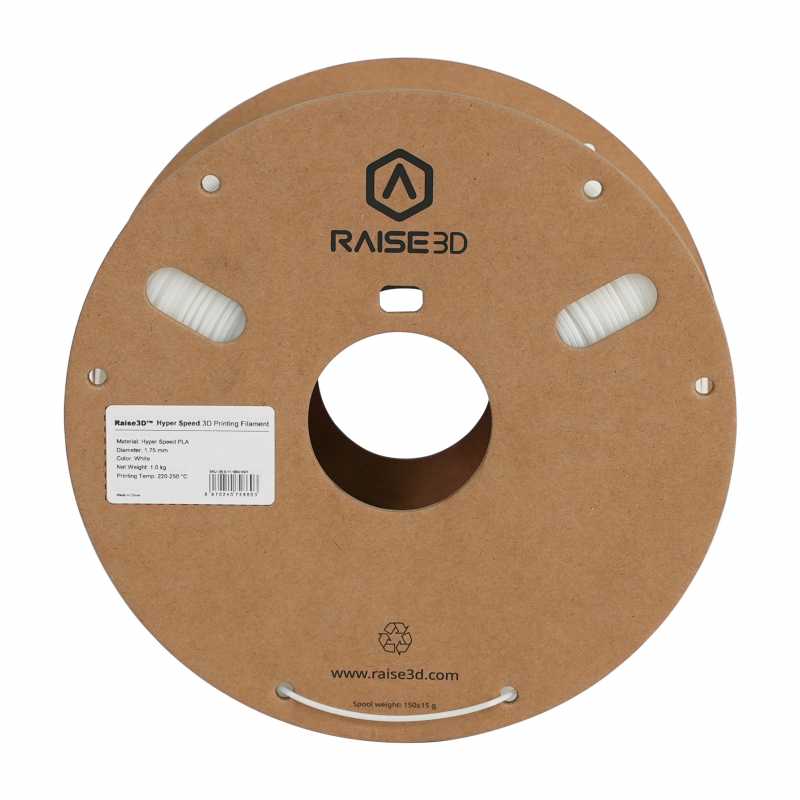

ABS Hyper Speed Natural Raise3D - 1.75mm - 1kg

Ref. [S]5.11.19039A01

The ABS Hyper Speed Natural filament is a material specially developed for high-speed printing compatible with the Hyper Speed upgrade kit. This filament is specially developed to bond a material with good thermal and mechanical resistance with Hyper FFF printing. This material is sensitive to deformation and delamination during high-speed printing.

€36.00 excl. VAT
Out of stock Free shipping

Our experts are at your service to answer your questions and provide advice at info@polyfab3d.com.

Delivery within 48/72 hours

Order before 1pm. Same day shipping

Free delivery

Free delivery near you from €69.90

Premium support

Our teams are on hand to answer all your questions

Over 3500 products

A wide choice of products from the biggest brands

ABS Hyper Speed Raise3D Natural

With its optimised chemical formula and adjusted fluidity (Melt Flow Index 55g/10 min), Raise3D 'sABS Hyper Speed is capable of achieving rapid melting in the hotend and much faster cooling after the material has been extruded. Thanks to its composition, this material is less prone to deformation and has improved adhesion between layers.ABS Hyper Speed is also ideally suited to many functional prototyping parts, tools and accessories, with numerous post-processing possibilities.

Raise3D ABS Hyper Speed Natural: key strengths

  • Designed for high-speed printing
  • High fluidity
  • Deformation-free parts
  • Better dimensional stability
  • Excellent impact resistance
  • Improved bonding between layers

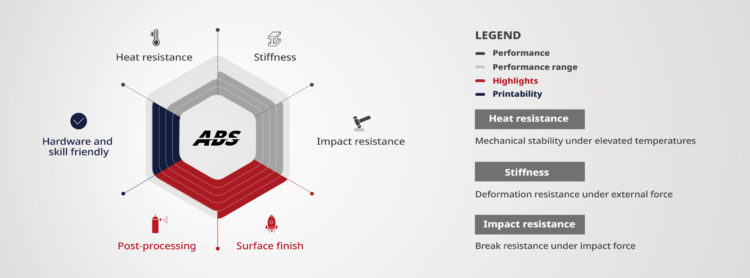

raise3d abs hyperspeed

Our recommendations for use with ABS Hyper Speed filament

Raise3D ABS Hyper Speed Natural is compatible with all open 3D machines on the market in diameter 1.75mm. This filament is compatible with PVA+ from Raise3D. To make the most of this high-speed material, it has been developed and designed to integrate perfectly with the brand's Pro3 and Pro3 Plus series thanks to the upgrade kit.

We recommend that you set your printer to an extrusion temperature of between 210 and 260°C to print Raise3D ABS Hyper Speed Naturel in optimum conditions. A print speed of between 25 and 300mm/s and the use of a heated ABSteau between 55 and 65°C are also recommended. In addition,ABS can be subject to deformation and delamination of the printed part when printing at high speed without a heated chamber.

  • 🎯 We collaborate with businesses.
  • 📦 Stock in Europe
  • 🚚 Ships within 24 hours
  • 🔐 Secure payments
  • 🔙 14 days to change your deww
  • 📱 Need advices ? Contact technical support

Specifications for ABS Hyper Speed Natural Raise3D - 1.75mm - 1kg

Technology / Product

Technology
FDM
Material
ABS
Bio-based
No
Diameter
1.75 mm
Sensitivity to humidity
Low
Application
Aesthetics, Prototyping, Production, Large format
Odour
Yes
Harmful
Yes
Level of difficulty
Intermediate
Type of product
3D Filament
Colour
Natural
Net weight
1 kg

Technical values

Deflection temperature under load (0.45 MPa)
73 °C
Charpy
7 kJ/m² of energy
Tensile modulus
2600
Flexural modulus
1990 Mpa
Maximum elongation at break
47 %
Density
1.08 g/cm3

Extrusion

Nozzle type
Brass
Type of consumable
Non-proprietary filament (open system)
Min. plateau temperature
50 °C
Max. tray temperature
60 °C
Min. extrusion temperature
210 °C
Max. extrusion temperature
260 °C
Min. speed
30 mm/s
Max. speed
300 mm/s
Minimum nozzle diameter
0.2 mm
Bowden compatibility
Yes

Specific equipment

Closed printing enclosure
No
Filtration
Without

Installation / Prerequisites

Packaging size
230 x 210 x 80 mm
Packaging weight
1.4 Kg
Type
Filament on spool
Box supplied
Yes
Coil material
Cardboard
