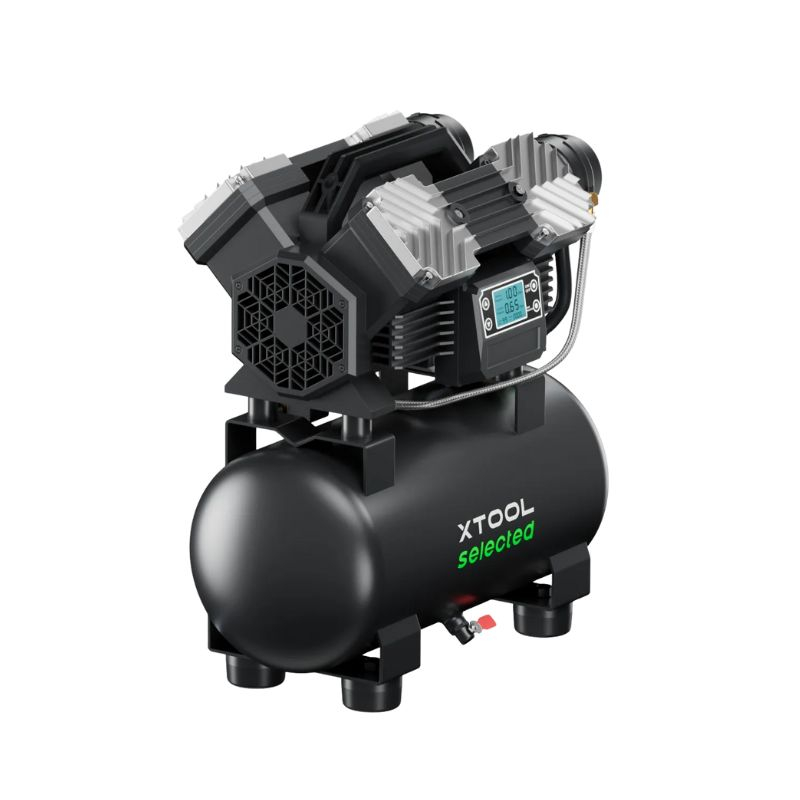

xTool Air Compressor

Ref. P1030703

The xTool MetalFab Air Compressor is designed to provide a steady air flow, essential for high-precision metal cutting. When paired with the air dryer and xTool SaveGas™ nozzle, it allows compressed air to replace nitrogen or argon, reducing costs while maintaining optimal cutting quality.

Precise cutting up to 4 mm stainless steel
Save over €20,000/year compared to gas bottles
Compact design suitable for small workshops

€739.00 ^{excl. VAT}

Out of stock Free shipping

Quantity

xTool MetalFab Air Compressor

The xTool MetalFab Air Compressor is an essential tool for laser cutting professionals seeking both cost-efficiency and precision. When used with the air dryer and xTool SaveGas™ nozzle, it enables the use of compressed air instead of nitrogen or argon.

With a working pressure of 6 bars, it delivers clean and precise cuts on stainless steel and aluminum up to 4 mm, and on brass up to 3 mm. It provides a consistent and stable air flow, ensuring clean edges and a reliable cutting process.

Air Compressor Technical Specifications:

Max air pressure: 10 bar (1.0 MPa / 145 PSI)
Working air pressure: 6 bar ~ 7.9 bar (0.6 MPa ~ 0.79 MPa / 87 PSI ~ 114 PSI)
Max air flow: 350 L/min (12.4 SCFM) / 200 L/min @ 6 bar (7 SCFM @ 87 PSI)
Tank capacity: 20 L
Rated power: 2,200 W (3.0 HP)
Recovery time: 45 s from 0 to 10 bar
Dimensions: 460 × 530 × 270 mm
Weight: 16 kg
Operating voltage: 220 V
Hose diameter: 10 mm
Operating temperature: -10°C~40°C
