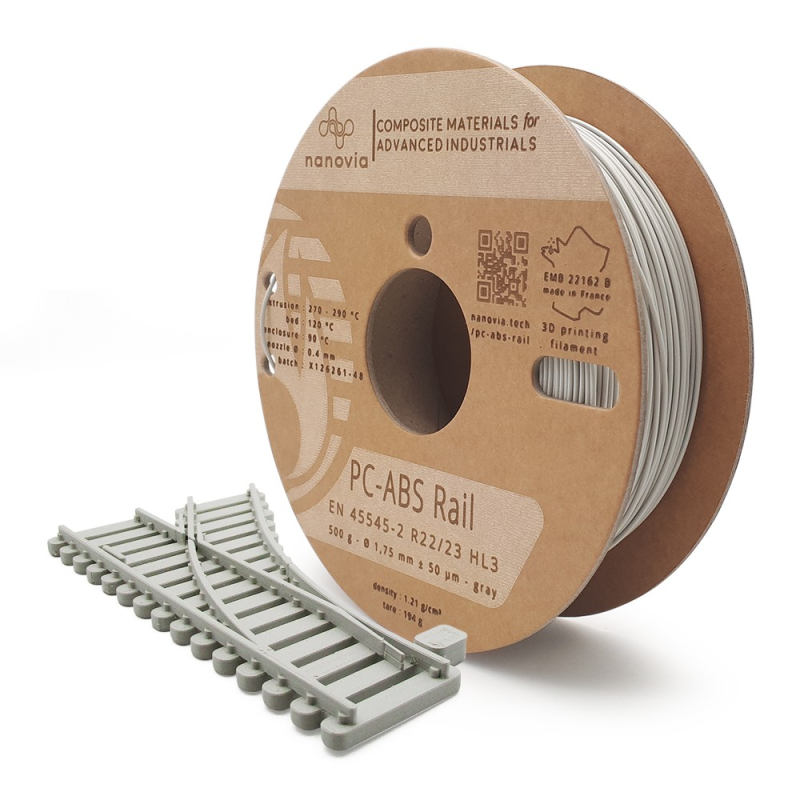

Nanovia PC-ABS Rail (EN 45545-2) - 1.75mm - 500 g
PC-ABS Rail Nanovia (EN 45545-2) - 1.75mm - 500 g
PC-ABS Rail Nanovia (EN 45545-2) - 1.75mm - 500 g
Nanovia PC-ABS Rail (EN 45545-2) - 1.75mm - 500 g
PC-ABS Rail Nanovia (EN 45545-2) - 1.75mm - 500 g
PC-ABS Rail Nanovia (EN 45545-2) - 1.75mm - 500 g

Nanovia PC-ABS Rail (EN 45545-2) - 1.75mm - 500 g

Ref. napbsrl1050gy

Nanovia PC-ABS Rail is an NF EN 45545-2 certified filament specifically designed for the railway sector, meeting flame-retardant and low-smoke emission standards.

This material is easier to print than traditional Polycarbonate.

€37.50 excl. VAT
Out of stock Free shipping

💰 Your purchases with 0% tax!

Get an instant quote

Our experts are at your service to answer your questions and provide advice at info@polyfab3d.com.

Delivery within 48/72 hours

Order before 1pm. Same day shipping

Free delivery

Free delivery near you from €69.90

Premium support

Our teams are on hand to answer all your questions

Over 3500 products

A wide choice of products from the biggest brands

Using Nanovia PC-ABS Rail

This material, specifically designed for high-end sectors such as railway, complies with the NF EN 45545-2 standard.

Made from certified materials, it ensures fire safety by preventing the spread of smoke and flames.

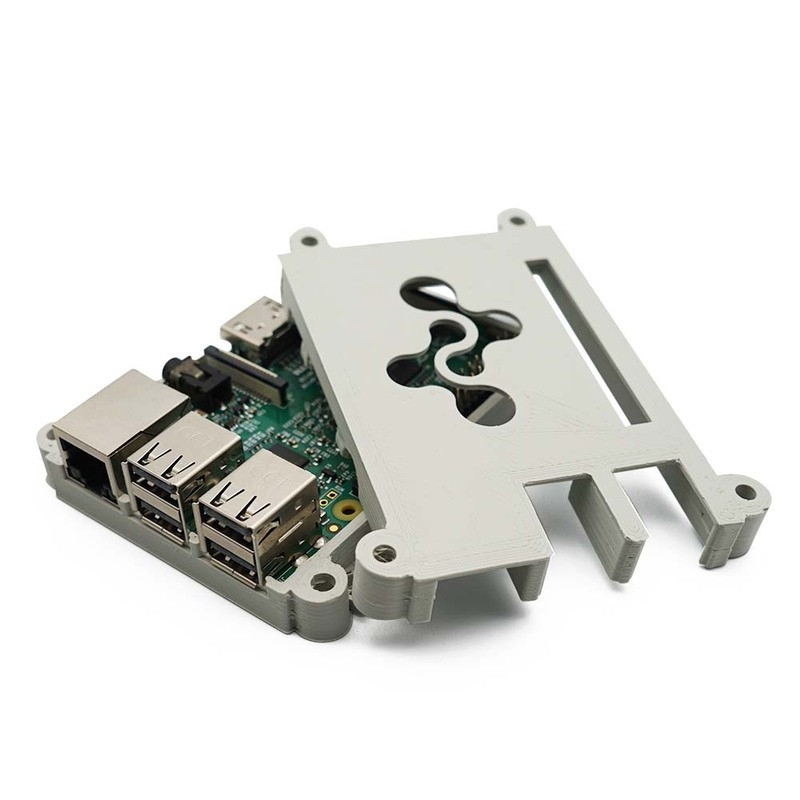

This PC-ABS Rail is used for functional parts such as electrical equipment controls, handles, buttons, armrests...

Nanovia PC-ABS Rail: key features

EN 45545-2:2013+A1:2015: PC-ABS Rail meets this essential standard for certain railway applications.

Flame-retardant: Made from certified materials, this filament is non-flammable.

Easier to print than PC: This ABS-reinforced polycarbonate is easier to print than raw PC.

Our recommendations for Nanovia PC-ABS Rail filament

The Nanovia PC-ABS Rail filament has an ideal extrusion temperature between 270 and 290°C and a printing speed of 40 to 60mm/s.

A heated bed at 120°C is recommended as well as an enclosure temperature of 90°C.

Since polycarbonate is moisture-sensitive, we recommend storing your spool in a dry environment with desiccant. If it has been exposed to moisture or open air, please dry your filament at 60°C for 4h or more.

Finally, we highly recommend using a printer with an air extraction system or a filtered enclosure.

  • 🎯 We collaborate with businesses.
  • 📦 Stock in Europe
  • 🚚 Ships within 24 hours
  • 🔐 Secure payments
  • 🔙 14 days to change your deww
  • 📱 Need advices ? Contact technical support

A question? Need help? Contact us, it's a pleasure to help you.

✉️ Contact us

Our team is available from Monday to Friday, from 10 am to 12 pm and from 2 pm to 5 pm.

Specifications for Nanovia PC-ABS Rail (EN 45545-2) - 1.75mm - 500 g

Technology / Product

Technology
FDM
Material
PC
Visual Appearance
Opaque
Standards
EN 45545-2
Sensitivity to humidity
Strong
Application
Functional part
Odour
Yes
Harmful
Yes
Level of difficulty
Expert
Brand
Nanovia
Type of product
3D Filament
Colour
Grey
Net weight
500 g

Technical values

Izod
20 kJ/m² (ISO 180/1A)
Charpy
45 kJ/m² (ISO 179/1eA)
Tensile modulus
2680 MPa (ISO 527)
Flexural modulus
2610 MPa (ISO 178)

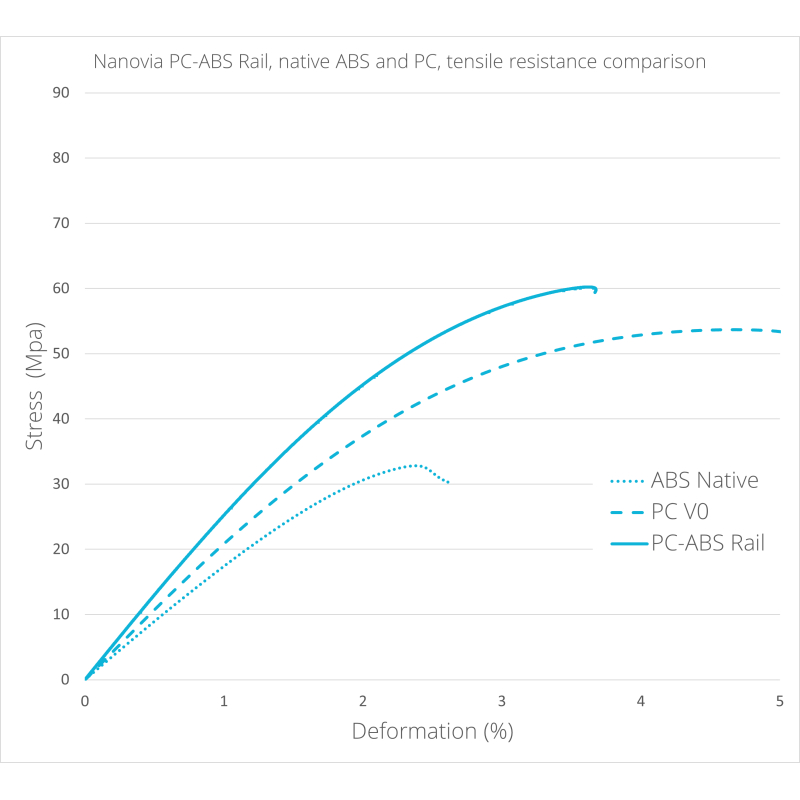

Tensile strength
50 MPa (ISO 527)
Density
1.21 g/cm3 (ISO 1183)

Extrusion

Filament diameter
1.75 mm
Nozzle type
Steel
Type of consumable
Non-proprietary filament (open system)
Nozzle diameter
0.4 mm
Min. plateau temperature
120 °C
Min. extrusion temperature
270 °C
Max. extrusion temperature
290 °C
Bowden compatibility
Yes
Warping sensitivity
Strong
Material Loader
No

Specific equipment

Closed printing enclosure
Yes
Filtration
HEPA, Coal

Installation / Prerequisites

Ambient temperature
90 °C

Customer reviews about Nanovia PC-ABS Rail (EN 45545-2) - 1.75mm - 500 g

Questions des clients

Question de Maxime C.

Hello, I'm working for a major railway equipment company. Can you provide a declaration of compliance with EN 45545-2:2013+A1:2015? Regards

Réponse de Polyfab3D

Hello Sir, We have just added the download certification to this page and to the following link: https://www.polyfab3d.fr/index.php?controller=attachment&id attachment=194 We remain at your disposal for any information about this material. Well cordially,
