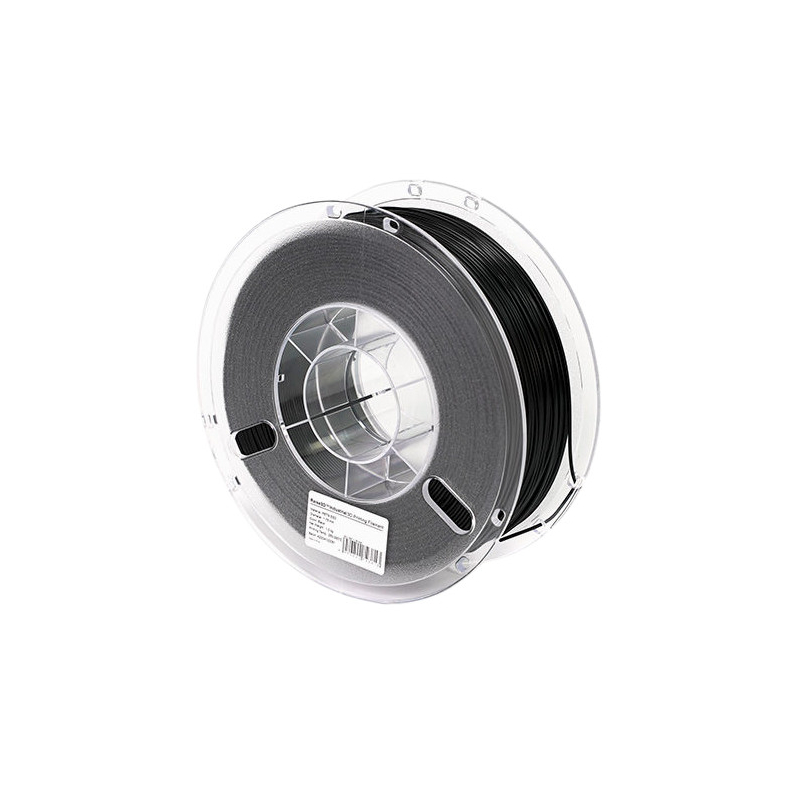

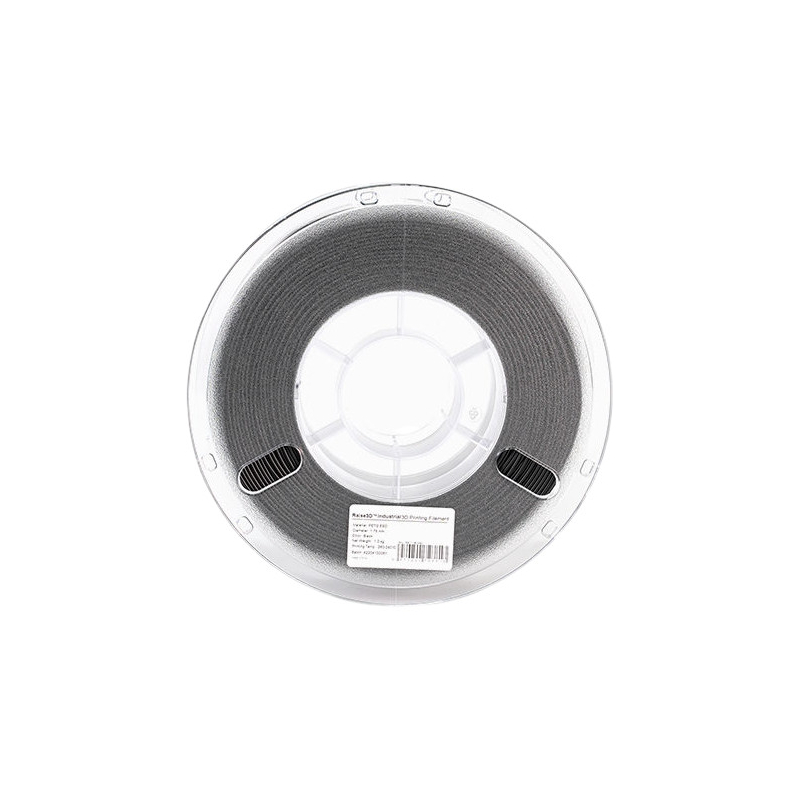

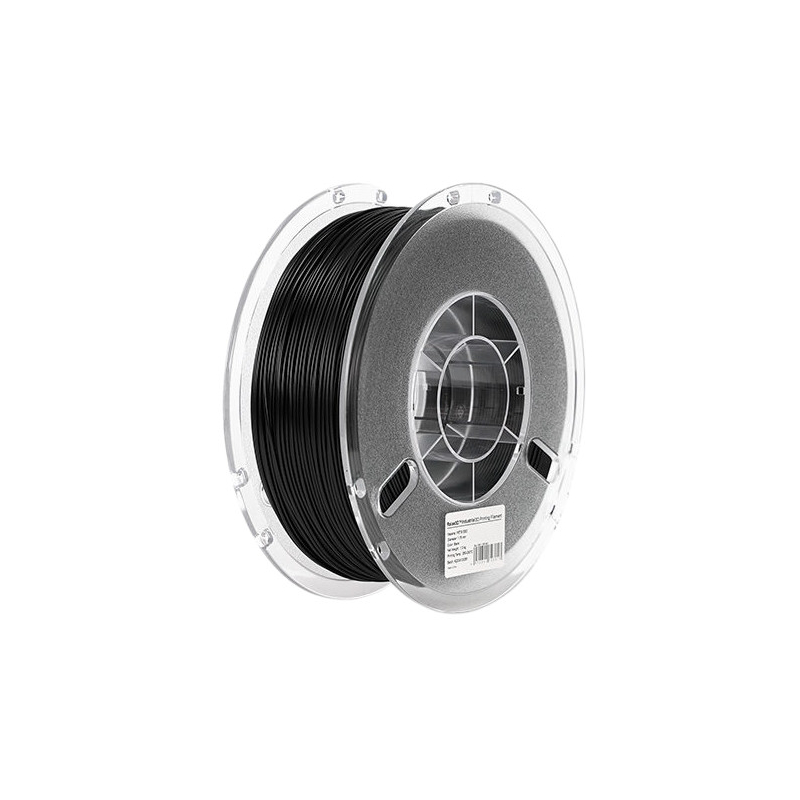

PETG ESD Black Raise3D Industriel - 1.75mm - 1Kg

Name: PETG ESD Black Raise3D Industriel - 1.75mm - 1Kg
Brand: Raise3D
SKU: [S]5.11.19014A01
Price: 119.99 EUR
Availability: InStock

Ref. [S]5.11.19014A01

The Raise3D PETG-ESD filament is designed for use in critical applications requiring electrostatic discharge (ESD) protection.

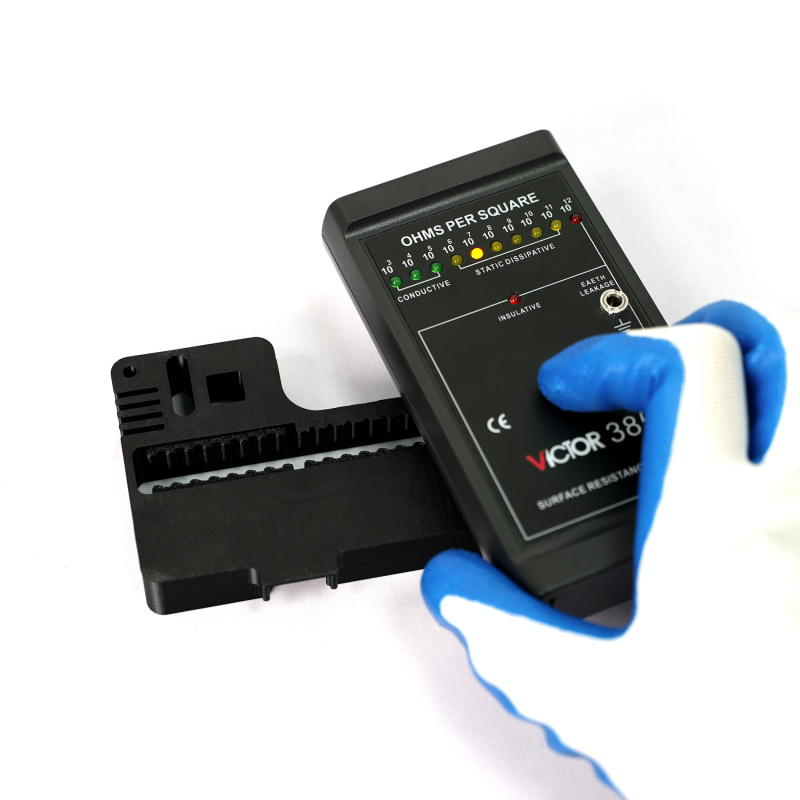

Thanks to additives in the base material (ABS, PETG, or PC), the surface resistance of the printed part falls within the range of ESD-safe or dissipative materials (10^5 to 10^12 Ω/sq).

€99.99 ^{excl. VAT}

In Stock Free shipping

From 2, only €96.99 / unit. 3%

From 5, only €94.99 / unit. 5%

From 10, only €91.99 / unit. 8%

Quantity

Raise3D PETG-ESD Filament

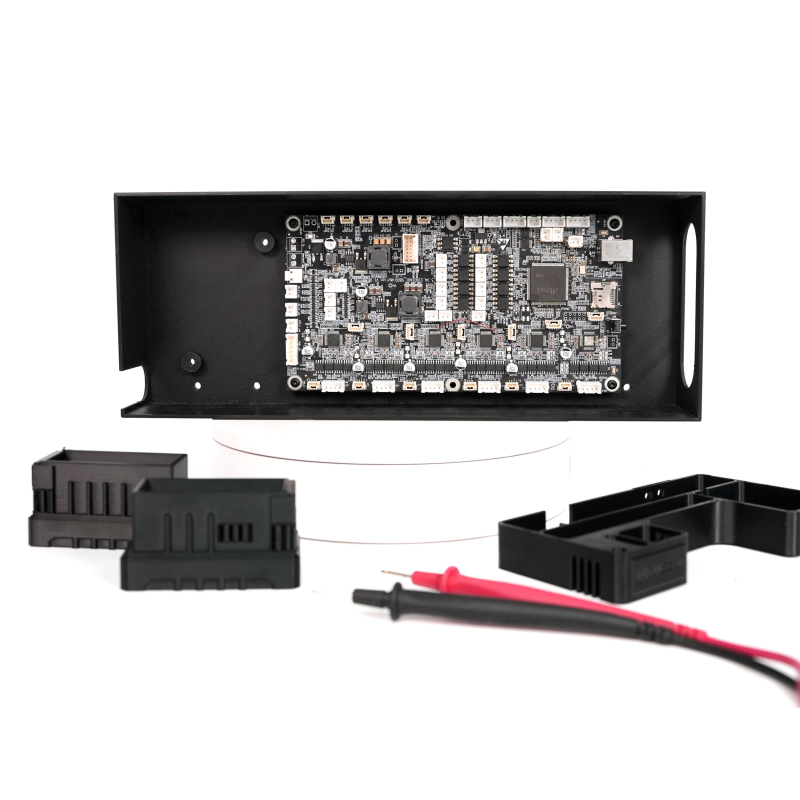

The industrial Raise3D PETG ESD filament is an electrostatic dissipative PETG-based 3D printing material filled with carbon nanotubes. Its excellent printability, chemical resistance, and electrostatic dissipation properties make this ESD filament ideal for applications in automotive, aerospace, general manufacturing, and electronics sectors. The industrial PETG ESD filament is perfect for applications such as enclosures, trims, fixtures, and mounts where ESD protection is required.

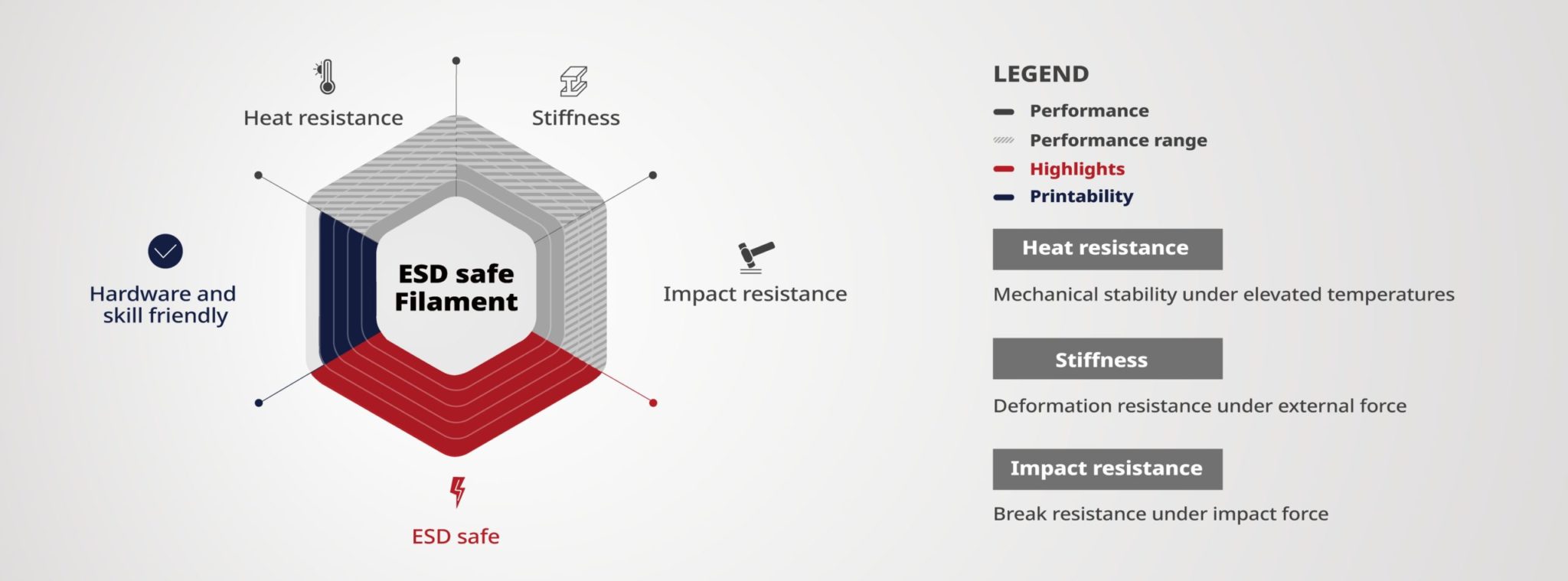

Raise3D PETG ESD Black Industrial: Key Advantages

Consistent and reliable surface resistance
Excellent surface finish
Outstanding chemical resistance
Good impact resistance

raise3d petg esd filament 3d

Usage Recommendations for Raise3D PETG-ESD

Although this Raise3D PETG-ESD Black was developed by Raise3D, it can be used on other open 3D printers accepting 1.75mm diameter filaments.

We recommend setting your printer to an extrusion temperature between 260 and 280°C to print Raise3D PETG ESD under optimal conditions.

A printing speed between 20 and 80mm/s and a heated bed temperature between 70 and 80°C are also recommended. It is advisable to dry this filament at 60°C for 6 to 12 hours before use.

For better adhesion to the print bed, using Raft or Brim is recommended, with a bed temperature set at 80°C.

This filament is compatible with Raise3D PVA+.

🎯 We collaborate with businesses.
📦 Stock in Europe
🚚 Ships within 24 hours
🔐 Secure payments
🔙 14 days to change your deww
📱 Need advices ? Contact technical support

Technical information - PETG ESD 282.6k

Safety data sheet - PETG ESD 110.58k

Specifications for PETG ESD Black Raise3D Industriel - 1.75mm - 1Kg

Technology / Product

Technology: FDM
Material: PETG
Visual Appearance: Satin
Bio-based: No
Application: Production, Functional part
Level of difficulty: Intermediate
Type of product: 3D Filament
Colour: Black
Net weight: 1 kg

Technical values

Glass transition temperature: 79 °C
Tensile modulus: 1986 Mpa
Flexural modulus: 1662 Mpa
Maximum elastic elongation: 6.1 ± 0.6 %

Extrusion

Filament diameter: 1.75 mm
Type of consumable: Non-proprietary filament (open system)
Min. plateau temperature: 70 °C
Max. tray temperature: 80 °C
Min. extrusion temperature: 260 °C
Max. extrusion temperature: 280 °C
Min. speed: 20 mm/s
Max. speed: 80 mm/s
Minimum nozzle diameter: 0.4 mm
Bowden compatibility: Yes
Warping sensitivity: Average
AMS compatible: No

Specific equipment

Filtration: Yes

Installation / Prerequisites

Type: Filament on spool
Coil material: Plastic
