Elegoo Saturn 3 12K

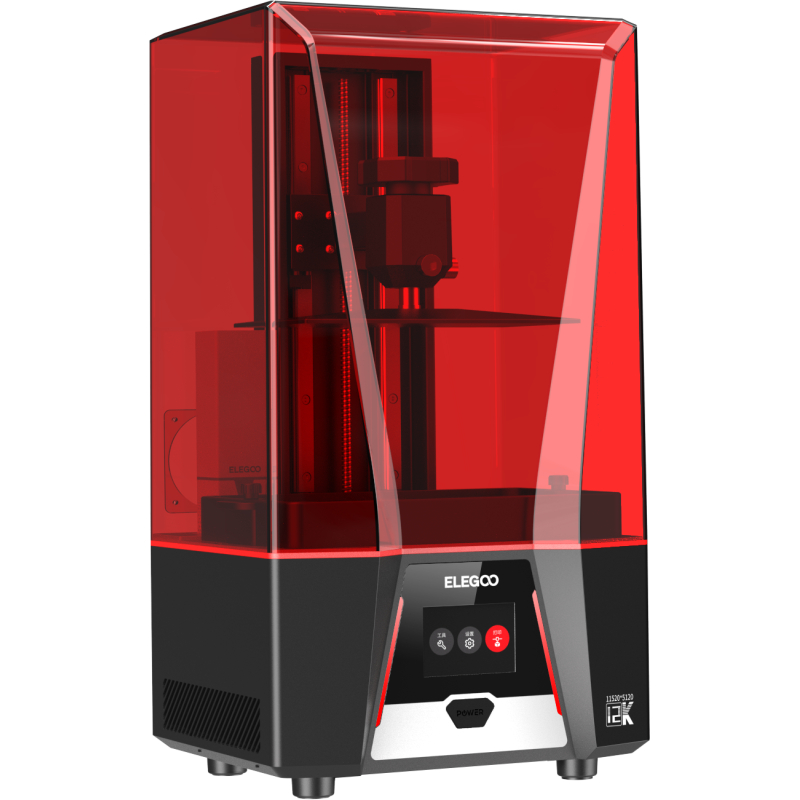

Elegoo Saturn 3 12K - The Affordable Ultra-Precision

The Saturn, followed by the Saturn 2, two very popular 3D printers, are now available in an improved version and more precise: the Saturn 3! The Elegoo Saturn 3 is equipped with a 10-inch 12K monochrome LCD screen (VS 8K for the Saturn 2), offering high resolution for even larger and more precise prints. Thanks to its large print volume, this MSLA 3D printer provides ample space for large-format prints.

This resin 3D printer is ideal for printing parts that require high detail levels. It is especially suitable for printing figurines, dental models, and dies, for example.

Advantages of the Elegoo Saturn 3

The ELEGOO Saturn 3 is a resin 3D printer that provides an excellent introduction to professional resin 3D printing. Let's explore the features of this printer in more detail to better understand its capabilities.

10-inch 12K Monochrome LCD Screen

The 10" 12K monochrome LCD screen of the Saturn 3 offers high print speeds without compromising detail, even for large print volumes. With a resolution of 11,520 x 5,120, all the subtle details of the 3D object are perfectly visible. Additionally, the sophisticated cooling system ensures extended LCD screen lifespan. For added protection against shocks, a hardened (9H) protective film is preinstalled on the screen.

Large Printing Volume

With its generous printing volume of 219 x 123 x 250 mm and its large 10-inch monochrome LCD screen, the ELEGOO Saturn 3 offers the ability to print larger prototypes and achieve higher curing efficiency. This allows you to print larger models or several smaller models in a single printing session. This feature helps optimize productivity and explore broader creative possibilities.

High Stability

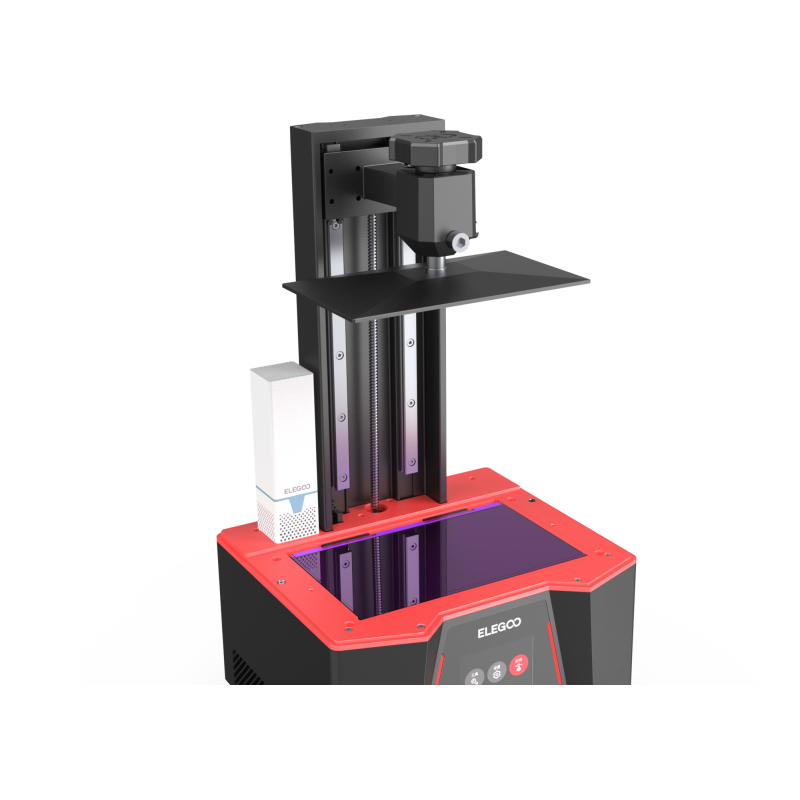

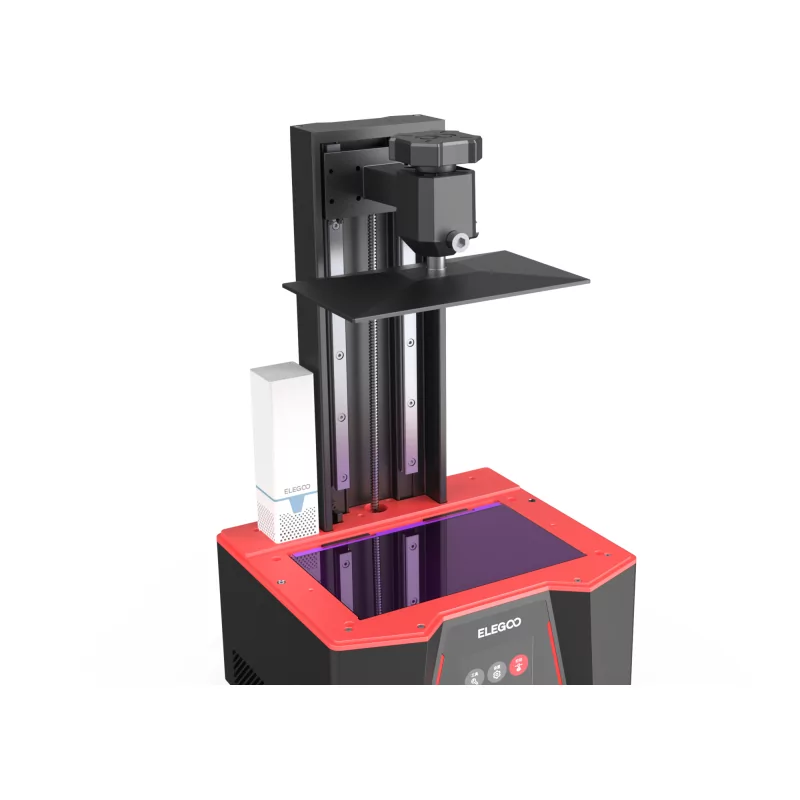

The Saturn 3 is equipped with two linear guides along the Z-axis, ensuring high stability and smooth movement for the printing platform. This design ensures high precision and reliability during printing. Additionally, this MSLA 3D printer offers impressive resolution along the Z-axis, reaching up to 0.00125 mm. This high precision allows for the creation of objects with fine details and a high-quality finish.

Collimating Fresnel Light Source

The Saturn 3 is equipped with a Fresnel collimating light source consisting of 64 highly integrated UV LEDs. These LEDs work in synchronization with the Fresnel lens in the FCL system to produce an even light beam at a wavelength of 405 nm. This setup guarantees exceptional printing precision and results in a smoother surface finish on the printed models. With this advanced feature, even the most delicate details of your creations will be reproduced with great precision.

Odor-free printing environment

The Saturn 3 is equipped with an air filtration system that includes an activated carbon filter. This filter is designed to absorb most of the resin odors generated during the printing process. Thanks to this feature, the printer offers a fresh, odor-free printing environment, improving your comfort and allowing you to work in a pleasant space. This is especially important when using the printer in enclosed or shared spaces.

Screen protection with tempered glass

The Saturn 3 comes with scratch-resistant tempered glass with a hardness of 9H, which is replaceable. This glass fits perfectly on the printer's screen, providing effective protection against potential scratches. Not only does it protect the screen from damage, but it also helps preserve the print details by providing a smooth, transparent surface. In case of wear or scratches on the glass, it can be easily replaced, extending the lifespan of your printer and maintaining optimal print quality.

Metal tray with PFA film

The PFA (Polymer Film Assist) technology makes it easier to remove printed models from the ELEGOO Saturn 3, reducing the release tension. Thanks to this technology, models detach more easily from the print bed, simplifying the post-processing process. The reduced release tension helps minimize the risk of warping or damage when removing the models, ensuring more reliable results and better print quality.

Resins Compatible with the Elegoo Saturn 3

We recommend using 8K resins from the Elegoo brand or those from the Forshape brand. For example, the Forshape 8K Gray Resin is of very high quality and very affordable, allowing prints with a very high level of detail.

While using a standard resin is still possible, it will not provide the highest level of detail.

Our Opinion on the Elegoo Saturn 3

If you’re looking for a 3D resin printer with 12K resolution, the Elegoo Saturn 3 is definitely an excellent choice. In addition to the features mentioned earlier, it benefits from high-quality support and readily available spare parts. This means you can rely on a reliable after-sales service and easily find the necessary replacement parts if needed. With these added advantages, the Elegoo Saturn 3 offers a more complete and satisfying user experience.
