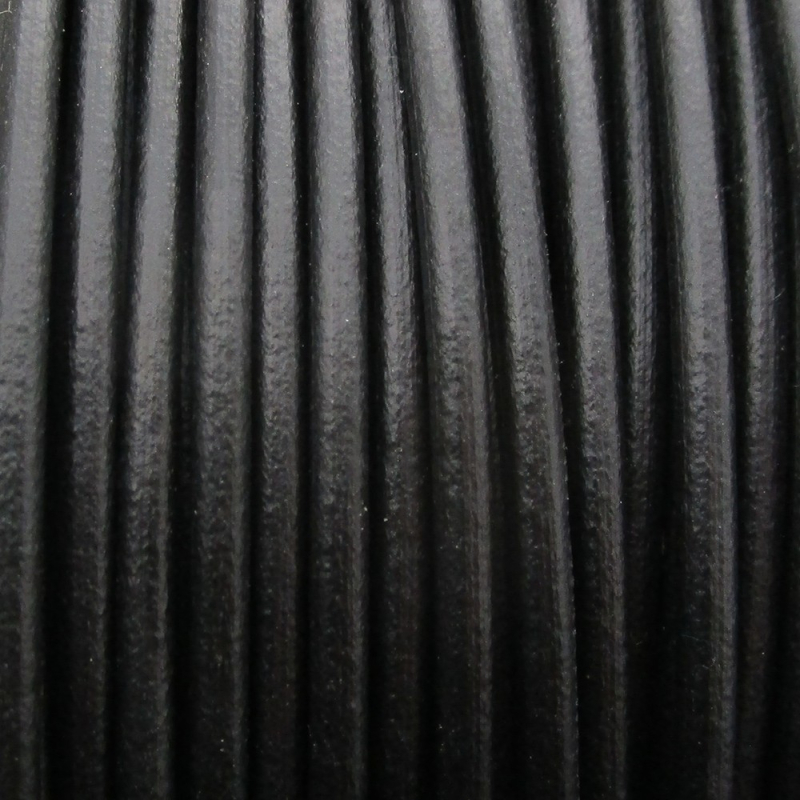

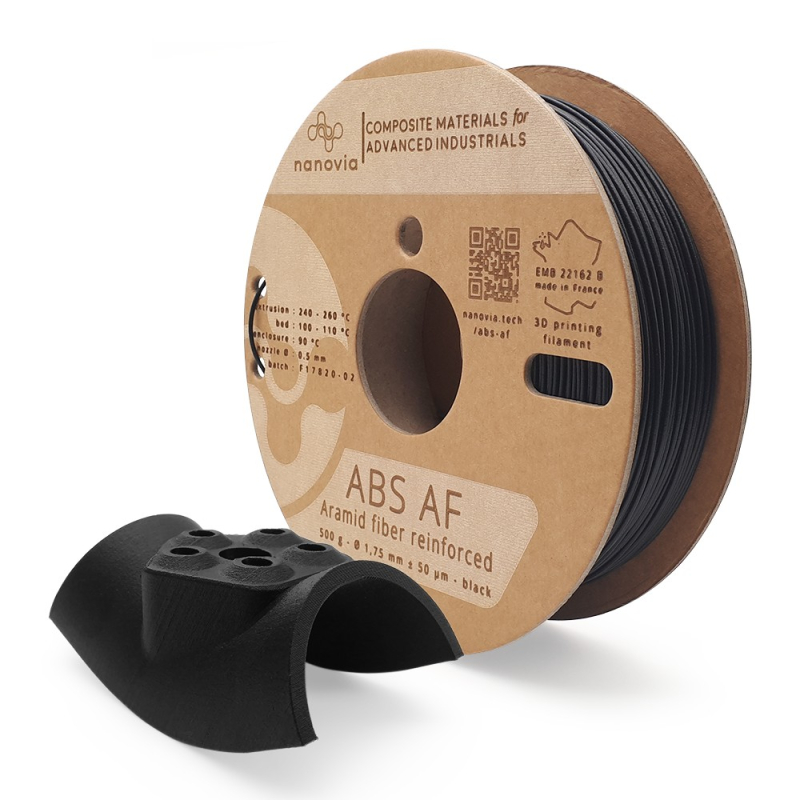

ABS AF Nanovia (aramid fiber reinforced) – 1.75mm – 500 g
Ref. naabsaf1050bk
Nanovia ABS AF is a technical filament reinforced with aramid fibers (Kevlar), perfect for 3D printing functional parts and tooling.
- High impact resistance
- Easier to print than standard ABS
- 500 g – 1.75 mm
€48.15 excl. VAT
Our experts are at your service to answer your questions and provide advice at info@polyfab3d.com.
Delivery within 48/72 hours
Order before 1pm. Same day shipping
Free delivery
Free delivery near you from €69.90
Premium support
Our teams are on hand to answer all your questions
Over 3500 products
A wide choice of products from the biggest brands
Nanovia ABS AF – Kevlar-Reinforced ABS Filament
Nanovia ABS AF is a technical-grade filament combining ABS with aramid fibers (Kevlar®), making it ideal for functional parts, tools, and industrial components. It offers excellent impact resistance, stable printing, and easy processing even on open 3D printers.
Main Benefits
- Kevlar reinforced: Enhanced durability against friction and impact.
- Excellent printability: Minimal warping, strong layer adhesion.
- Low abrasiveness: Use with hardened nozzle ≥ 0.5 mm; less wear than carbon/glass fiber filaments.
- Outdoor-ready: Paint finishing recommended for UV protection.
Recommended Settings
- Nozzle: 0.5 mm hardened
- Extrusion temperature: 240 °C
- Bed temperature: 100 °C
- Bed adhesion: Use Magigoo or equivalent adhesive
Storage & Safety
- Store dry with desiccant or in a drybox.
- Dry at 60 °C for 4 hours before use if exposed to air.
- Print in a ventilated or enclosed setup for safety.
- 🎯 We collaborate with businesses.
- 📦 Stock in Europe
- 🚚 Ships within 24 hours
- 🔐 Secure payments
- 🔙 14 days to change your deww
- 📱 Need advices ? Contact technical support
Specifications for ABS AF Nanovia (aramid fiber reinforced) – 1.75mm – 500 g
Technology / Product
- Technology
- FDM
- Material
- ABS
- Visual Appearance
- Opaque, Mat, Smooth alcohol
- Made in France
- Yes
- Diameter
- 1.75 mm
- Sensitivity to humidity
- Low
- Application
- Prototyping, Production, Functional part
- Odour
- Yes
- Harmful
- Yes
- Level of difficulty
- Intermediate
- Brand
- Nanovia
- Type of product
- 3D Filament
- Net weight
- 500 g
Technical values
- Glass transition temperature
- 101 °C
- Deflection temperature under load (1.8 MPa)
- 90 °C
- Charpy
- 5.2 kJ/m² of energy
- Resistors
- Mechanical engineering
- Composite
- Kevlar
- Tensile modulus
- 2400 Mpa
- Maximum elongation at break
- 7.5 %
- Density
- 1.05 g/cm3
- Shore hardness
- 77 D
Extrusion
- Nozzle type
- Tempered steel, Ruby
- Type of consumable
- Non-proprietary filament (open system)
- Min. plateau temperature
- 90 °C
- Max. tray temperature
- 110 °C
- Min. extrusion temperature
- 250 °C
- Max. extrusion temperature
- 270 °C
- Min. speed
- 50 mm/s
- Max. speed
- 70 mm/s
- Minimum nozzle diameter
- 0.5 mm
- Bowden compatibility
- Yes
- Warping sensitivity
- Average
Specific equipment
- Closed printing enclosure
- Yes
- Filtration
- HEPA, Coal
Installation / Prerequisites
- Type
- Filament on spool
- Box supplied
- Yes
- Coil material
- Plastic
