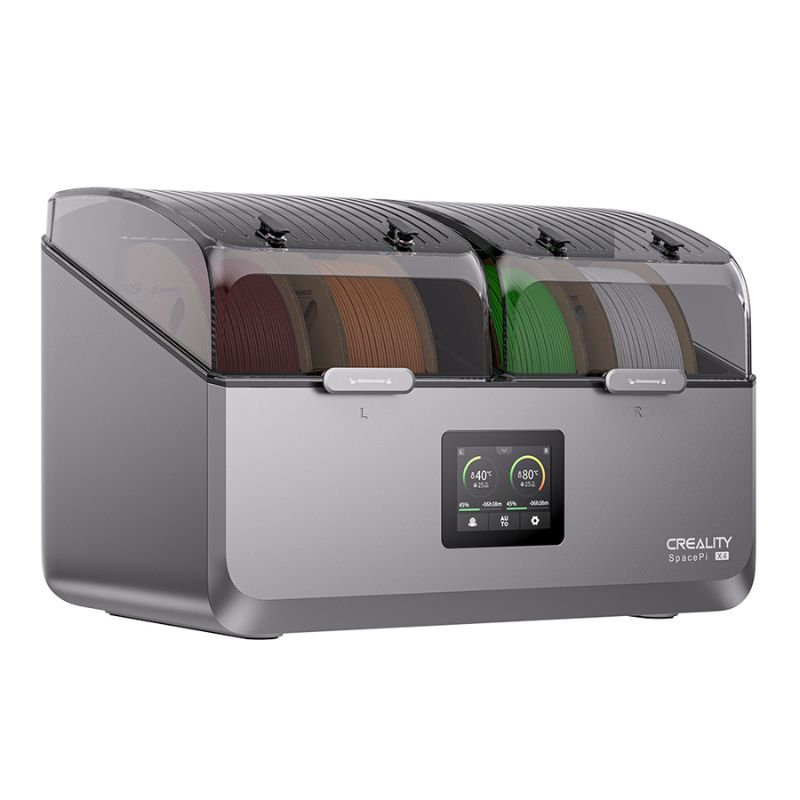

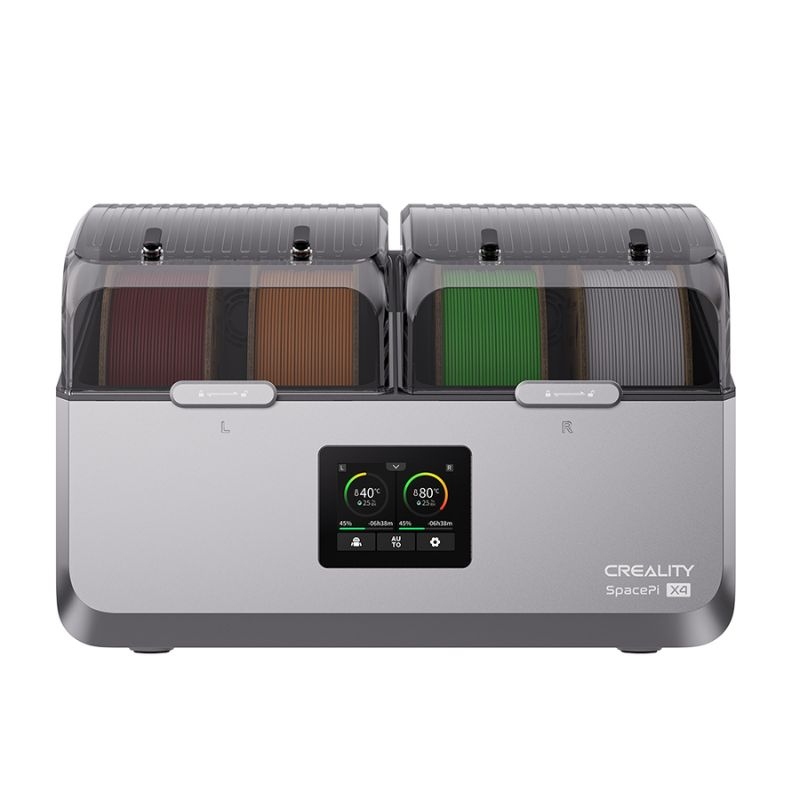

Creality Space Pi X4 Filament Dryer

Creality Space Pi X4

Humidity is the enemy of filaments in 3D printing, potentially causing defects such as stringing, clogging, or layer shifting.

The SpacePi X4 from Creality is designed to address these issues by providing an efficient and versatile drying solution. With its two independent chambers, it can dry up to four spools simultaneously, even of different materials, ensuring optimal print quality.

With advanced features such as powerful PTC heating, SpaceDry 4.0 technology, and an intuitive touch interface, the SpacePi X4 stands out as an essential tool for 3D printing enthusiasts.

Comparison with SpacePi and SpacePi Plus

The SpacePi is designed to dry a single filament spool, while the SpacePi Plus can accommodate two 1 kg spools.

The SpacePi X4 surpasses these models by offering the capacity to dry up to four spools simultaneously, thanks to its two independent chambers with separate heating circuits. Additionally, it features a 3.2-inch touchscreen and increased heating power, reaching up to 80°C, making it ideal for demanding technical filaments.

Main Features of the SpacePi X4

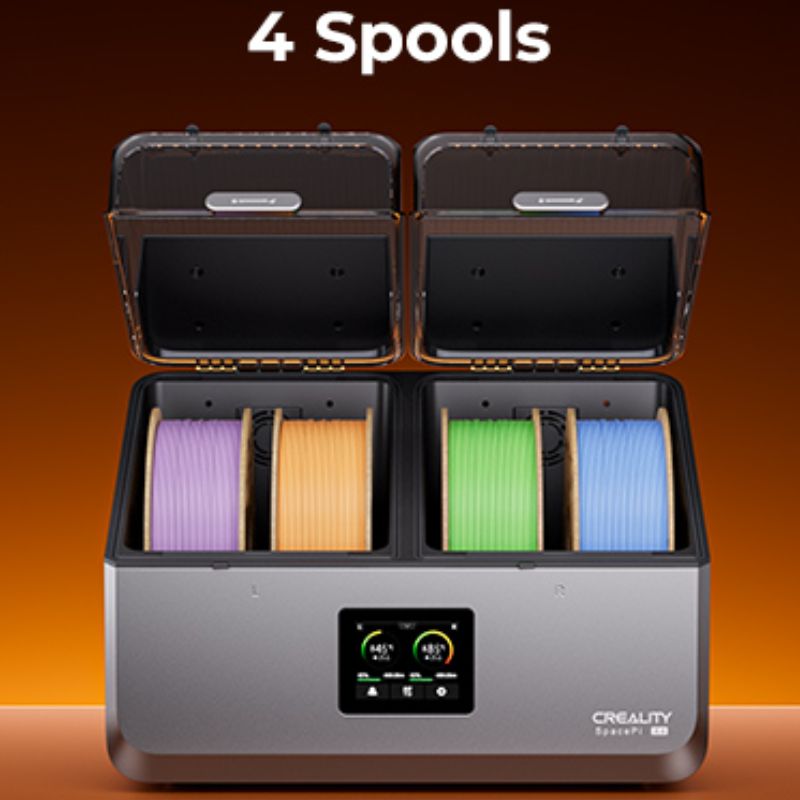

Multiple Drying Capacity

The SpacePi X4 allows drying up to four spools of filament simultaneously, facilitating multi-color or multi-material printing. Each chamber can accommodate 1 kg or 2 kg spools, with a maximum diameter of 200 mm and a width of up to 150 mm.

This multi-spool capacity optimizes workflow and reduces waiting time between prints.

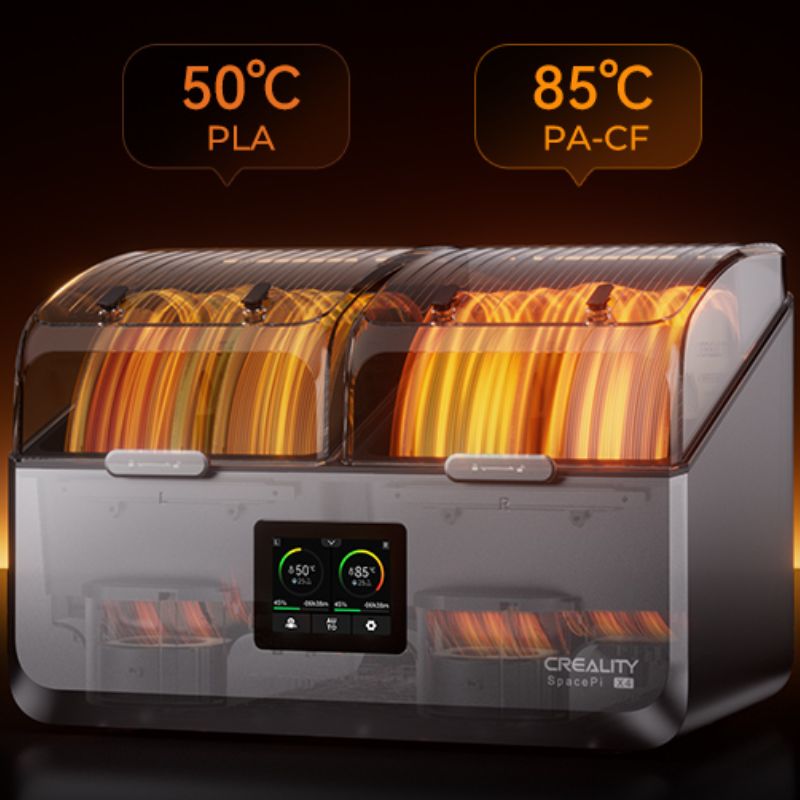

Independent Chambers with Separate Control

Equipped with two separate chambers, each with its own heating circuit, the SpacePi X4 offers the ability to dry different types of filaments at specific temperatures simultaneously.

Additionally, using a single chamber is possible and allows to reduce energy consumption of the SpacePi X4 by up to 40%.

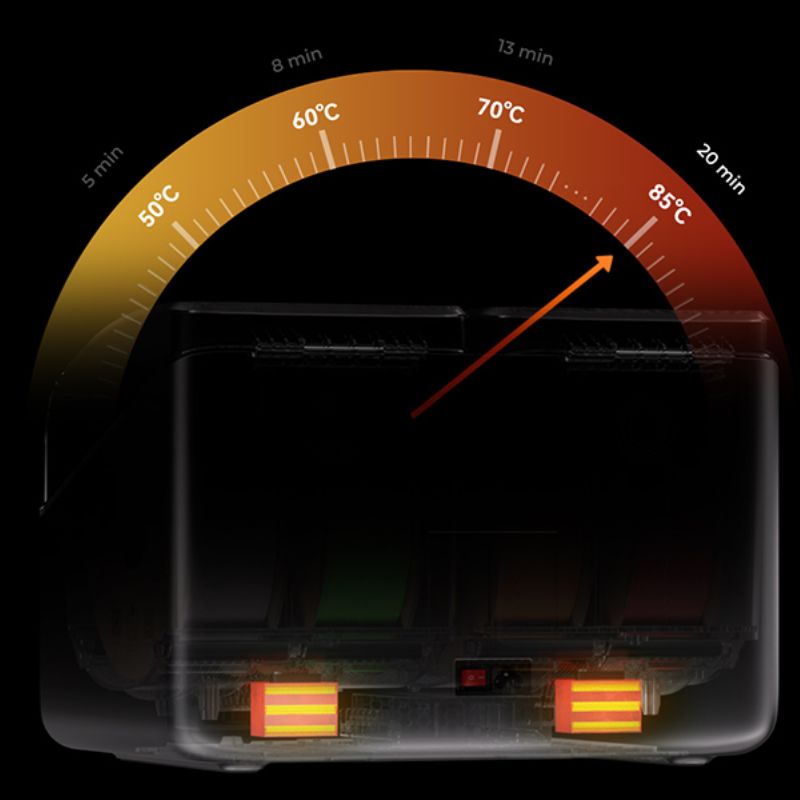

Powerful PTC Heating up to 85°C

Thanks to its 200W PTC heating element per chamber, the SpacePi X4 can reach temperatures of up to 85°C.

This makes it ideal for drying technical filaments such as PAHT, PA, or PC, which require high temperatures to effectively eliminate moisture.

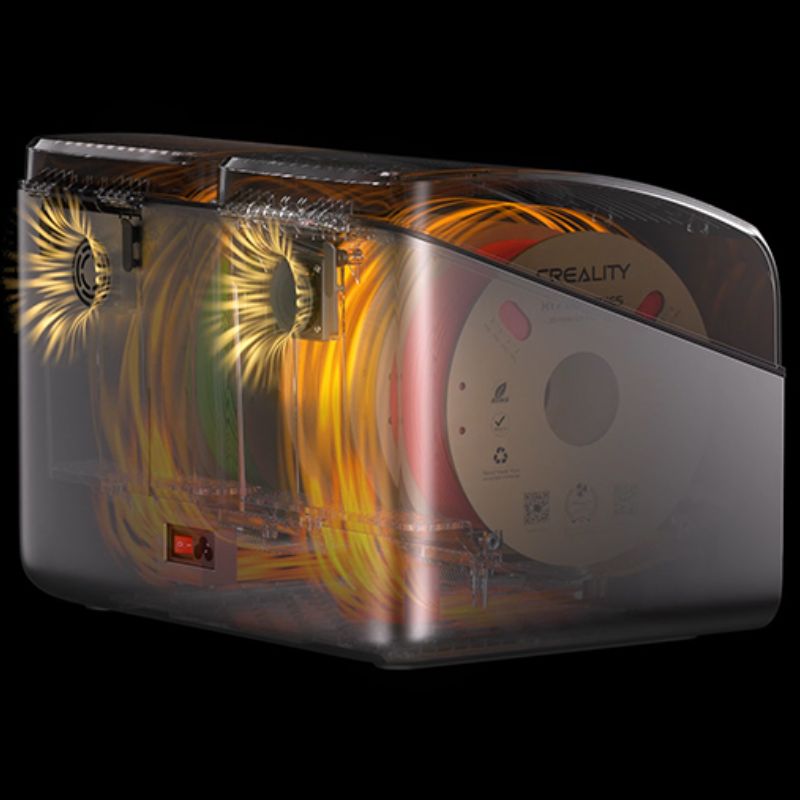

SpaceDry 4.0 Technology

The SpacePi X4 integrates SpaceDry 4.0 technology, which combines 360° hot air circulation, automatic desiccant regeneration, and active dehumidification (with fans).

This approach ensures uniform and efficient filament drying while maintaining an optimal internal atmosphere to preserve material quality.

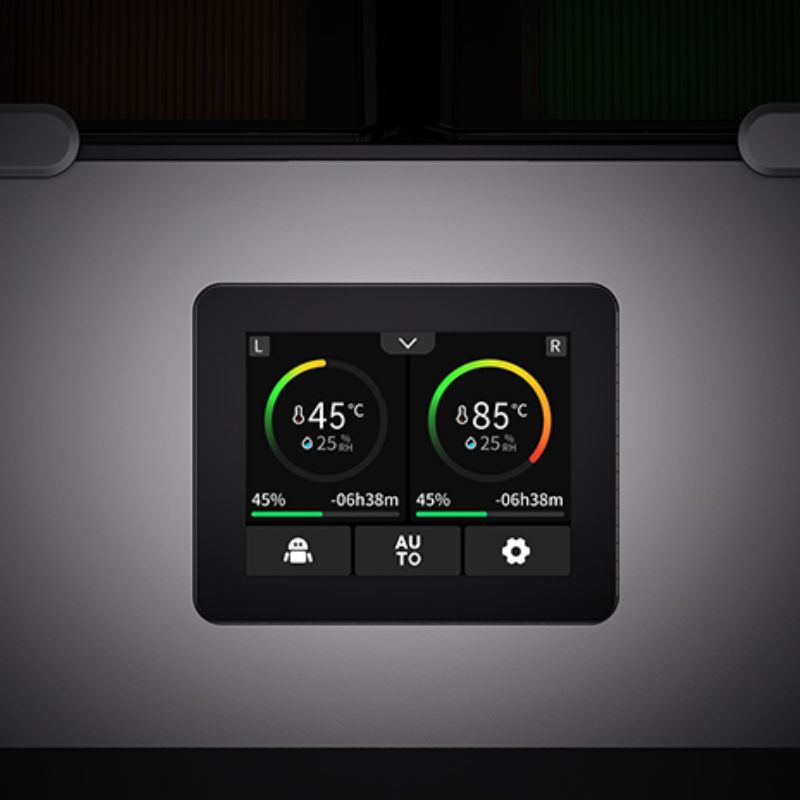

Intuitive 3.2-inch Touchscreen Interface

The device features a 3.2-inch color touchscreen, offering an easy-to-use interface to adjust and monitor drying parameters.

Users can easily adjust the temperature, drying time, and monitor internal humidity and temperature in real-time, ensuring precise control of the process.

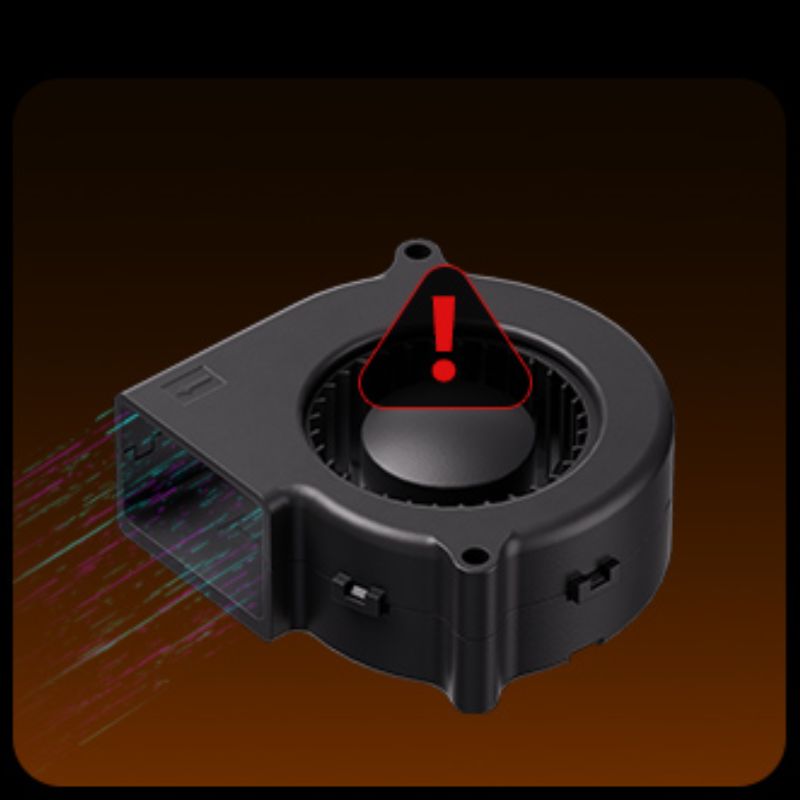

Advanced Security Features

To ensure safe use, the SpacePi X4 is equipped with multiple protection devices, including smart self-diagnostics, automatic shutdown in case of abnormal fan speed, a PTC fuse with automatic reset in case of overheating, and an NTC sensor to monitor the airflow temperature.

These features guarantee a reliable and safe use of the device.

Smart Management Features

Thanks to the Active Silent feature, the fans reduce their speed when the ideal temperature is reached, reducing the noise level of the Space Pi 4X. When filament drying is complete, a buzzer alerts the user. Additionally, a light in each chamber indicates that the drying process is ongoing.

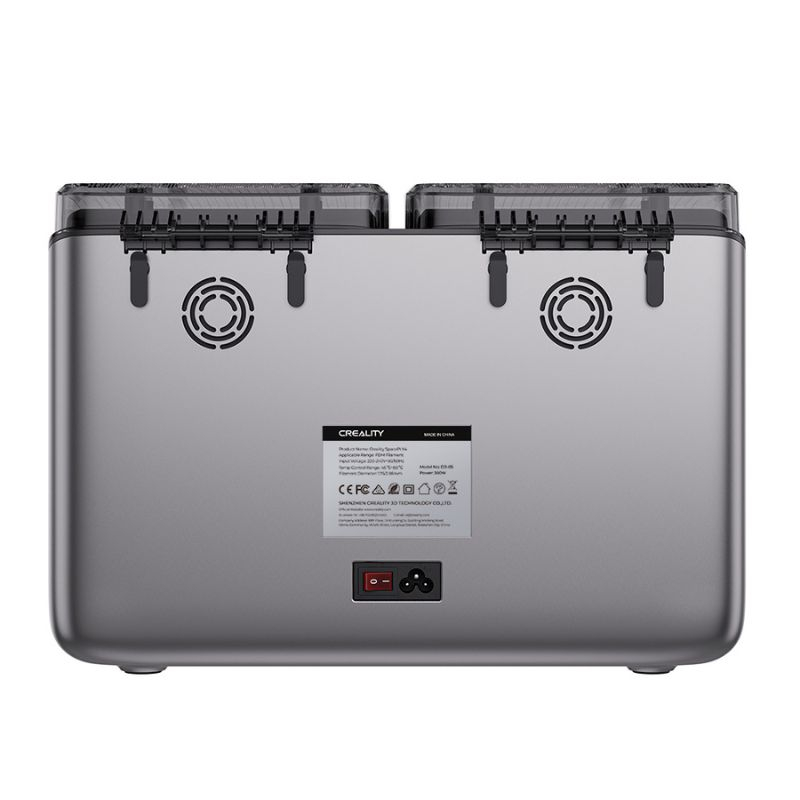

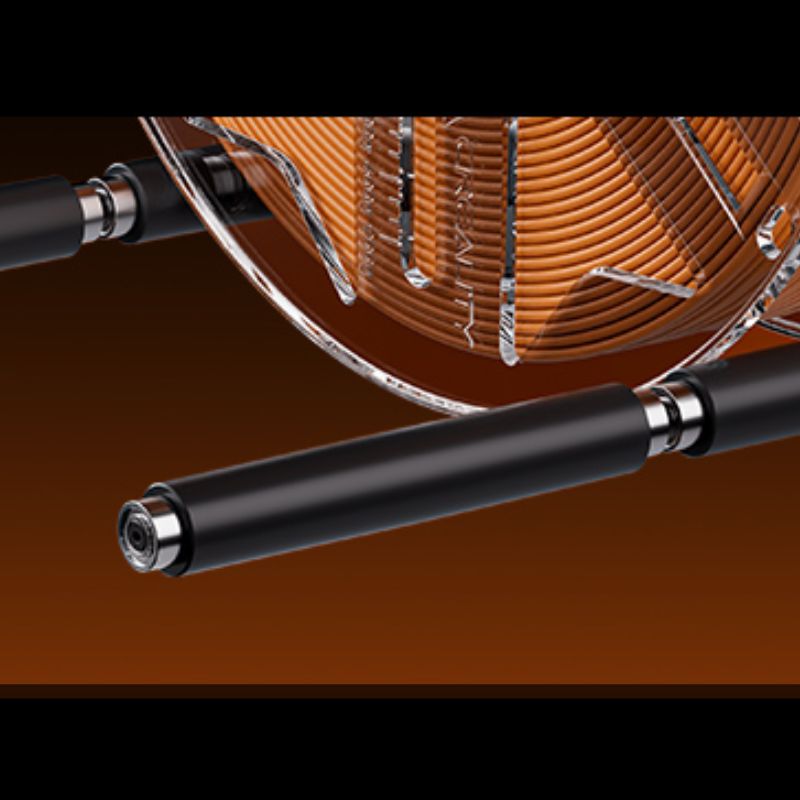

The Space Pi for 4 spools is designed to be reliable and sturdy, with filament outlets on the top and back, a sliding door system, anti-heat rollers for spools, and a waterproof design.

Compatibility and Recommendation with the Space Pi X4

The Creality Space Pi X4 is compatible with most filaments on the market. It can also accommodate spools of any weight, as long as their dimensions do not exceed a diameter of 200mm and a width of 150mm.

Drying Recommendations:

Our Opinion on the Pi Filament Dryer

Whether you are a 3D printing enthusiast or a demanding professional, the SpacePi X4 is a strategic investment to optimize your prints and make the most out of your materials.

The Creality SpacePi X4 is an advanced solution to effectively eliminate moisture and restore the optimal properties of printing materials. With an internal temperature reaching up to 85°C, it allows for quick drying of technical filaments such as PA-CF, PAHT, or PPA, reducing drying time by up to 50% compared to traditional methods.
