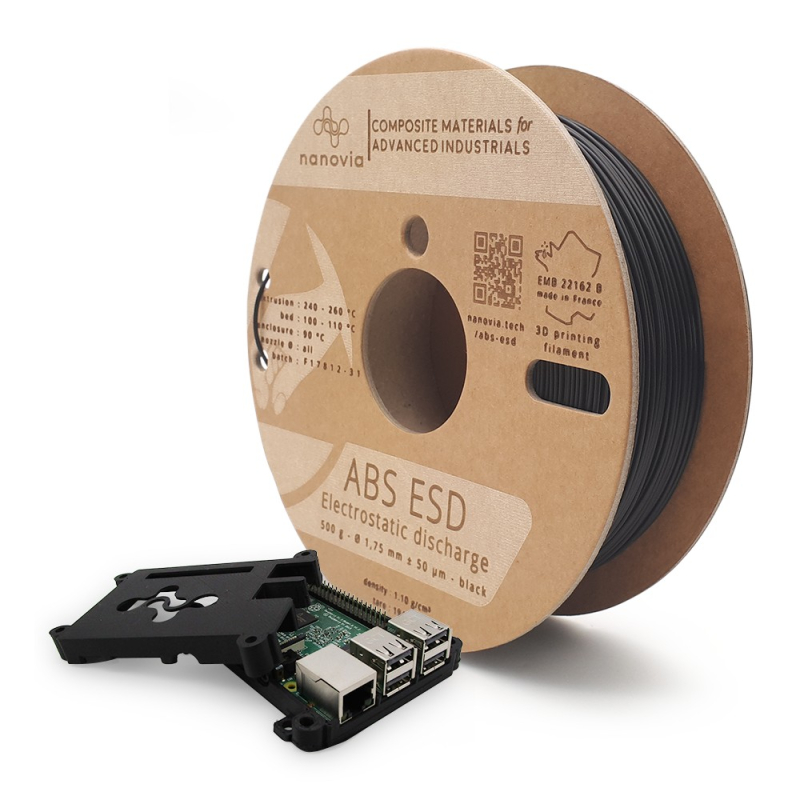

ABS ESD Nanovia (anti électricité statique) - 1.75mm - 500 g

ABS ESD Nanovia (anti électricité statique) - 1.75mm - 500 g (2)

ABS ESD Nanovia (anti static electricity) - 2.85mm - 500 g

Name: ABS ESD Nanovia (anti static electricity) - 2.85mm - 500 g
Brand: Nanovia
SKU: naabsed2050bk
Price: 59.4 EUR
Availability: InStock

Ref. naabsed2050bk

Nanovia ABS ESD filament is specially formulated with a blend of ABS and carbon black to protect your equipment sensitive to electrostatic discharges.

This Nanovia ABS ESD filament is ideal for use in electronics or electrical applications thanks to its properties.

€49.50 ^{excl. VAT}

In Stock Free shipping

From 2, only €48.02 / unit. 3%

From 5, only €47.03 / unit. 5%

From 10, only €45.54 / unit. 8%

Quantity

Using Nanovia ABS ESD Filament

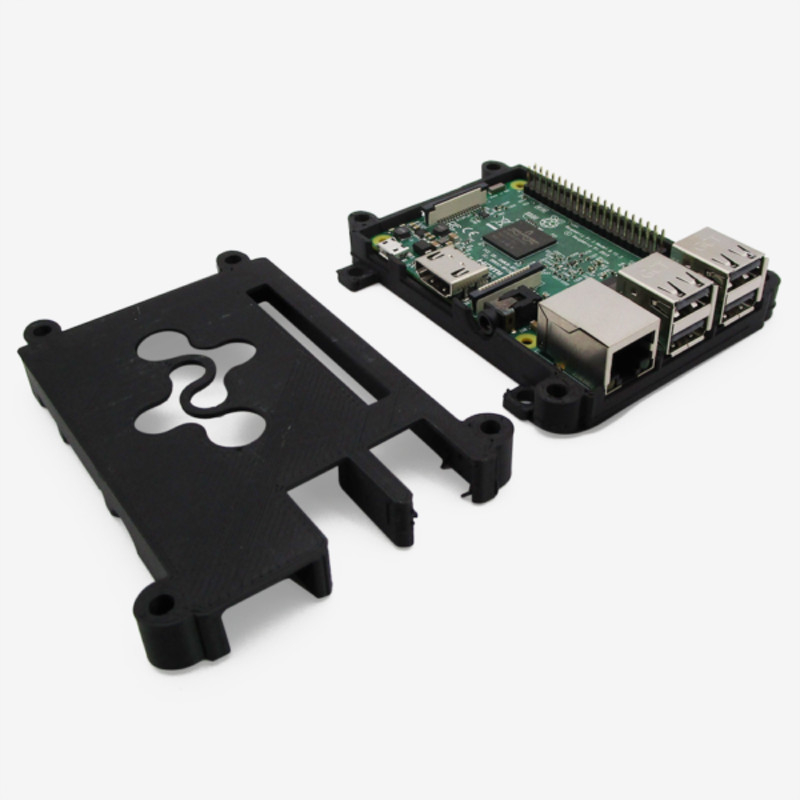

ABS ESD filament is a base material of ABS enriched with conductive carbon black, giving it its ESD (ElectroStatic Discharge) properties. This composite filament offers excellent printing characteristics with limited shrinkage and thus good bed adhesion. ESD ABS is used in applications requiring strong protection against electrostatic discharge. Some electronic parts or electrical connectors can be manufactured with this filament.

Another advantage of this ABS ESD filament is that it is less prone to warping than standard ABS while remaining mechanically and thermally resistant.

Nanovia ABS ESD: Key Advantages

Protection against electrostatic discharge: ABS ESD filament is known for its volume resistivity properties, suitable for sensitive environments.

Mechanical resistance: ABS filament is known for its general mechanical strength, which also applies to this ESD version.

Good thermal resistance: With a glass transition temperature of 100°C, this ABS ESD filament is suitable for demanding environments.

Our Recommendations for Using ABS ESD

This ABS-based material requires the same attention as standard ABS. However, it is less sensitive to warping, which is the most limiting factor when printing ABS without a heated enclosure.

We recommend using a suitable adhesive, a closed chamber, a bed temperature of 90°C, and a steel nozzle to benefit from the full performance of this carbon-based composite ABS.

As ABS and aramid fibers are UV-sensitive, consider painting for outdoor use.

🎯 We collaborate with businesses.
📦 Stock in Europe
🚚 Ships within 24 hours
🔐 Secure payments
🔙 14 days to change your deww
📱 Need advices ? Contact technical support

Specifications for ABS ESD Nanovia (anti static electricity) - 2.85mm - 500 g

Technology / Product

Technology: FDM
Material: ABS
Visual Appearance: Opaque, Smooth alcohol
Made in France: Yes
Diameter: 2.85 mm
Sensitivity to humidity: Low
Application: Prototyping, Production, Functional part
Odour: Yes
Harmful: Yes
Level of difficulty: Intermediate
Brand: Nanovia
Type of product: 3D Filament
Colour: Black
Net weight: 500 g

Technical values

Glass transition temperature: 100 °C
Deflection temperature under load (1.8 MPa): 88 °C
Charpy: 18 kJ/m² of energy
Specific properties: ESD / Conductive
Resistors: Mechanical engineering
Tensile modulus: 1900 Mpa
Tensile yield strength: 43 MPa
Maximum elongation at break: 10 %
Density: 1.1

Extrusion

Nozzle type: Stainless steel
Type of consumable: Non-proprietary filament (open system)
Min. plateau temperature: 90 °C
Max. tray temperature: 100 °C
Min. extrusion temperature: 250 °C
Max. extrusion temperature: 270 °C
Min. speed: 50 mm/s
Max. speed: 70 mm/s
Minimum nozzle diameter: 0.4 mm
Bowden compatibility: Yes
Warping sensitivity: Strong
AMS compatible: No

Specific equipment

Closed printing enclosure: Yes
Filtration: HEPA, Coal

Installation / Prerequisites

Type: Filament on spool
Box supplied: Yes
Coil material: Plastic
