Polymaker Fiberon™ PA612-ESD Black - 1.75mm - 500g

Ref. FG08001

Polymaker Fiberon™ PA612‑ESD filament is a technical material based on PA612 nylon, formulated with a specific blend of carbon fibers and carbon nanotubes to provide effective electrostatic discharge (ESD) protection.

It is designed for the production of components sensitive to static electricity in sectors such as electronics, robotics, or industrial automation. Excellent mechanical properties and good moisture resistance.

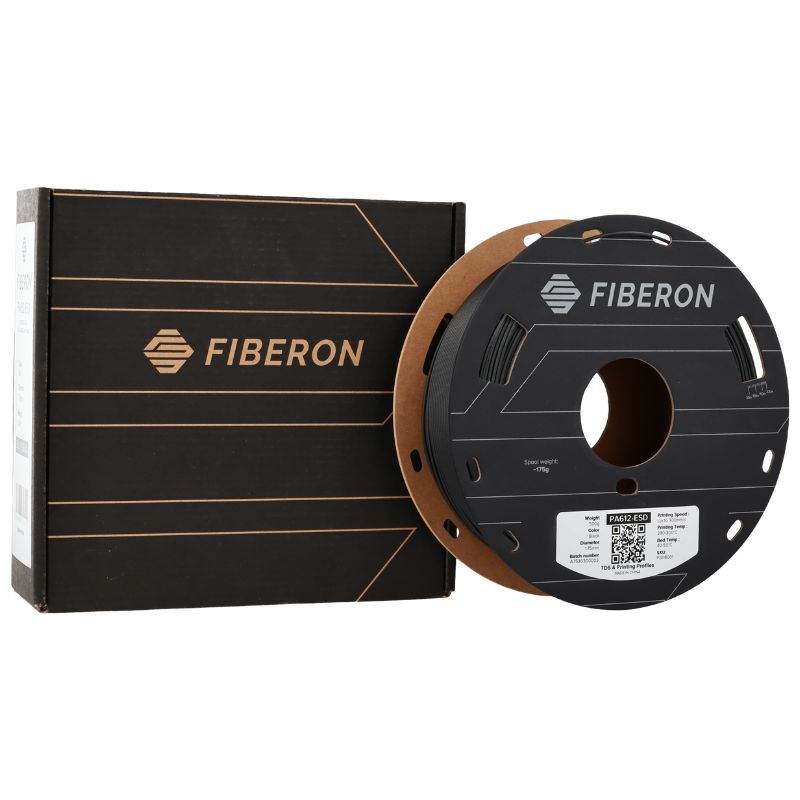

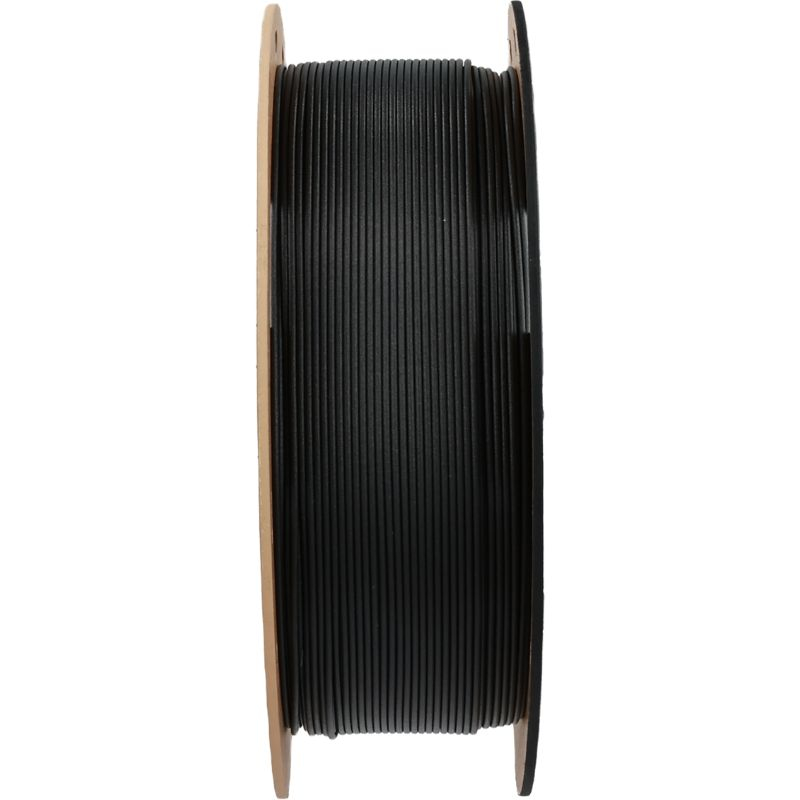

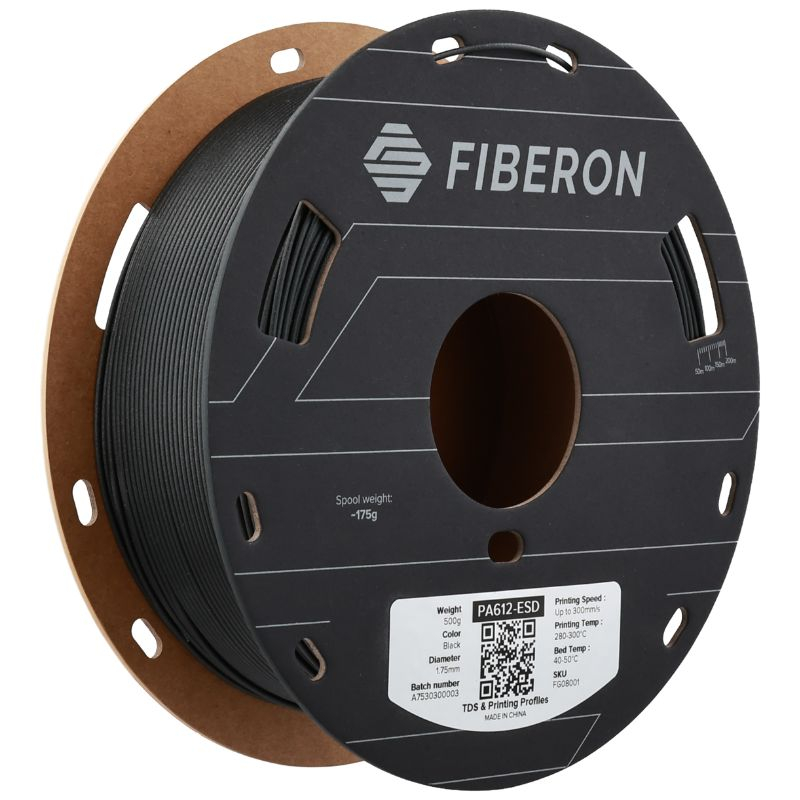

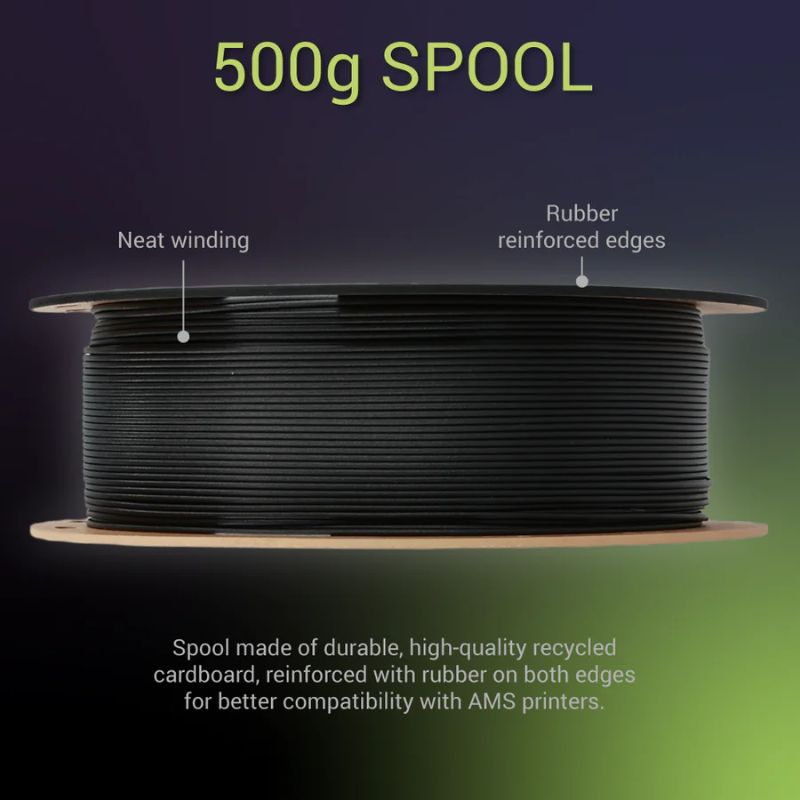

500g spool, 1.75mm diameter filament.

🔖 Special offer

-15.00% instant discount with the code : POLY15

€54.16 excl. VAT
Out of stock Free shipping

💰 Your purchases with 0% tax!

Get an instant quote

Our experts are at your service to answer your questions and provide advice at info@polyfab3d.com.

Delivery within 48/72 hours

Order before 1pm. Same day shipping

Free delivery

Free delivery near you from €69.90

Premium support

Our teams are on hand to answer all your questions

Over 3500 products

A wide choice of products from the biggest brands

Polymaker Fiberon™ PA612‑ESD Black - 1.75mm - 500g

The Polymaker Fiberon™ PA612‑ESD filament combines a PA6/PA12 nylon matrix with carbon fiber reinforcement and conductive additives to provide both high mechanical strength and permanent ESD protection.

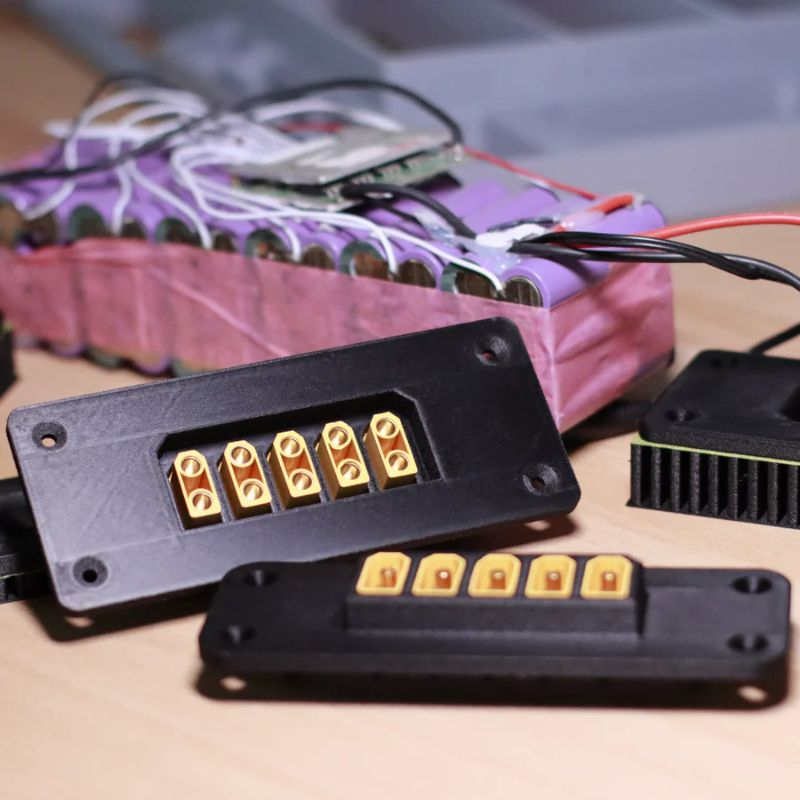

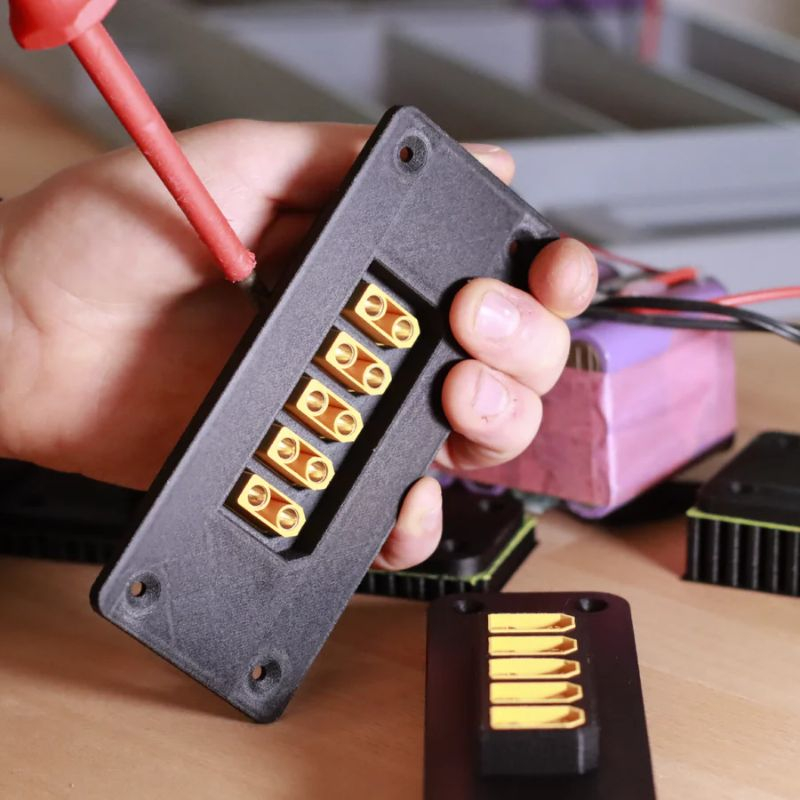

This filament is ideal for printing electronic enclosures, production jigs, or automated machine components used in environments sensitive to electrostatic discharge.

Thanks to its advanced formulation, it ensures reliable charge dissipation while retaining the benefits of PA612: low moisture absorption, good dimensional stability, and excellent printability. This industrial-grade material is designed for demanding applications where electrostatic safety and mechanical performance go hand in hand.

Advantages of Polymaker Fiberon™ PA612‑ESD

  • Active ESD formulation: built-in electrostatic protection using carbon nanotubes, no post-treatment needed.
  • High mechanical performance: tensile strength, stiffness, and durability for complex structural parts.
  • High heat resistance: Fiberon PA612-ESD features a heat deflection temperature of 157°C (at 0.45 MPa).
  • Excellent dimensional stability: low warping for accurate and repeatable prints.
  • Compatible with PolySupport for PA: facilitates printing technical geometries with rigid supports.

Printing Recommendations

  • Extrusion temperature: 280–300 °C for optimal melting of polymers and conductive additives.
  • Bed temperature: 40–50 °C for good adhesion.
  • Recommended nozzle: hardened steel or ruby nozzle required due to abrasive fibers; all-metal hotend necessary above 280 °C.
  • Print speed: up to 300 mm/s depending on the printer and cooling.
  • Storage: store in a dry environment (< 20% RH); if humid, dry at 100 °C for 10 h (oven) or 18 h on level 3 with PolyDryer.
  • Post-print annealing: anneal at 100 °C for 10 hours to improve dimensional stability and mechanical performance.
  • 🎯 We collaborate with businesses.
  • 📦 Stock in Europe
  • 🚚 Ships within 24 hours
  • 🔐 Secure payments
  • 🔙 14 days to change your deww
  • 📱 Need advices ? Contact technical support

A question? Need help? Contact us, it's a pleasure to help you.

✉️ Contact us

Our team is available from Monday to Friday, from 10 am to 12 pm and from 2 pm to 5 pm.

Specifications for Polymaker Fiberon™ PA612-ESD Black - 1.75mm - 500g

Technology / Product

Technology
FDM
Material
PA
Visual Appearance
Opaque
Diameter
1.75 mm
Sensitivity to humidity
Strong
Application
Prototyping, Production, Functional part
Odour
Yes
Harmful
Yes
Level of difficulty
Intermediate
Brand
Polymaker
Type of product
3D Filament
Colour
Black
Net weight
500 g

Technical values

Glass transition temperature
41.8 °C
Deflection temperature under load (0.45 MPa)
157 °C
Deflection temperature under load (1.8 MPa)
125.4 °C
Temperature VICAT
190 °C
Charpy
24 kJ/m²
Resistors
Mechanical engineering
Tensile modulus
4293 MPa
Flexural modulus
3740 MPa
Maximum elongation at break
3 %
Density
1.10 g/cm3

Extrusion

Nozzle type
Stainless steel, Ruby
Type of consumable
Non-proprietary filament (open system)
Min. plateau temperature
40 °C
Max. tray temperature
50 °C
Min. extrusion temperature
280 °C
Max. extrusion temperature
300 °C
Min. speed
30 mm/s
Max. speed
300 mm/s
Minimum nozzle diameter
0.5 mm
Bowden compatibility
Yes
Warping sensitivity
Average
Material Loader
Bambu Lab AMS, Anycubic ACE, Creality CFS, Bambu Lab AMS HT, Bambu Lab AMS Lite, Bambu Lab AMS 2 Pro, Anycubic ACE 2 Pro

Specific equipment

Closed printing enclosure
Yes
Filtration
HEPA, Coal

Installation / Prerequisites

Type
Filament on spool
Box supplied
Yes
Coil material
Cardboard
