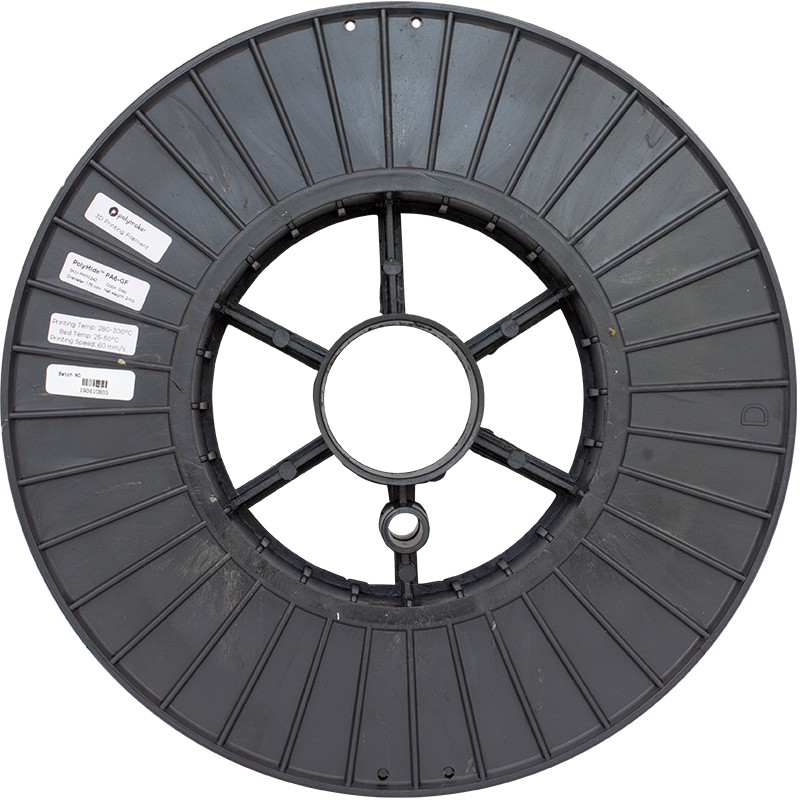

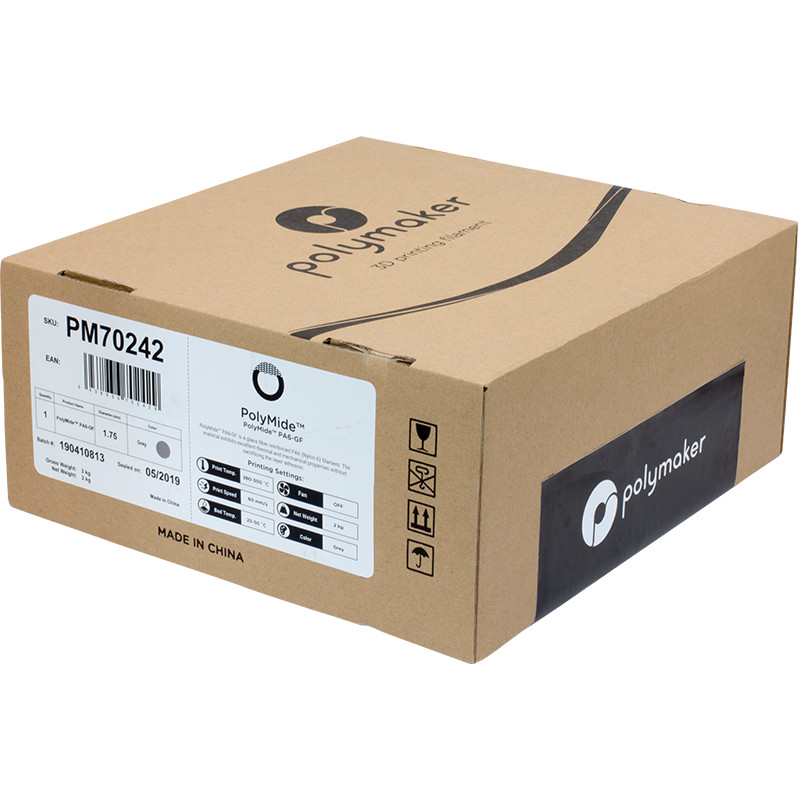

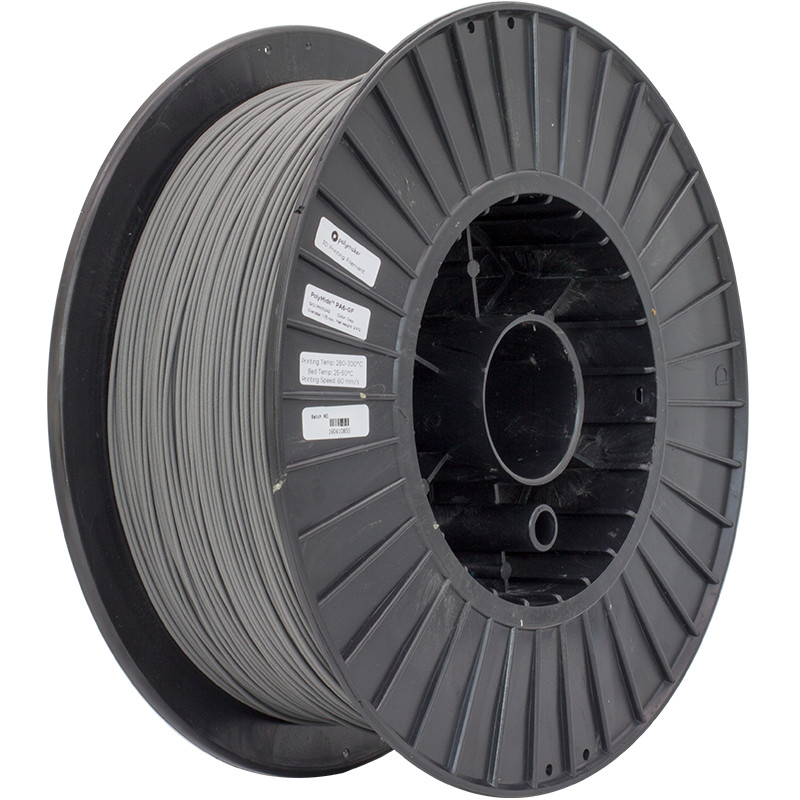

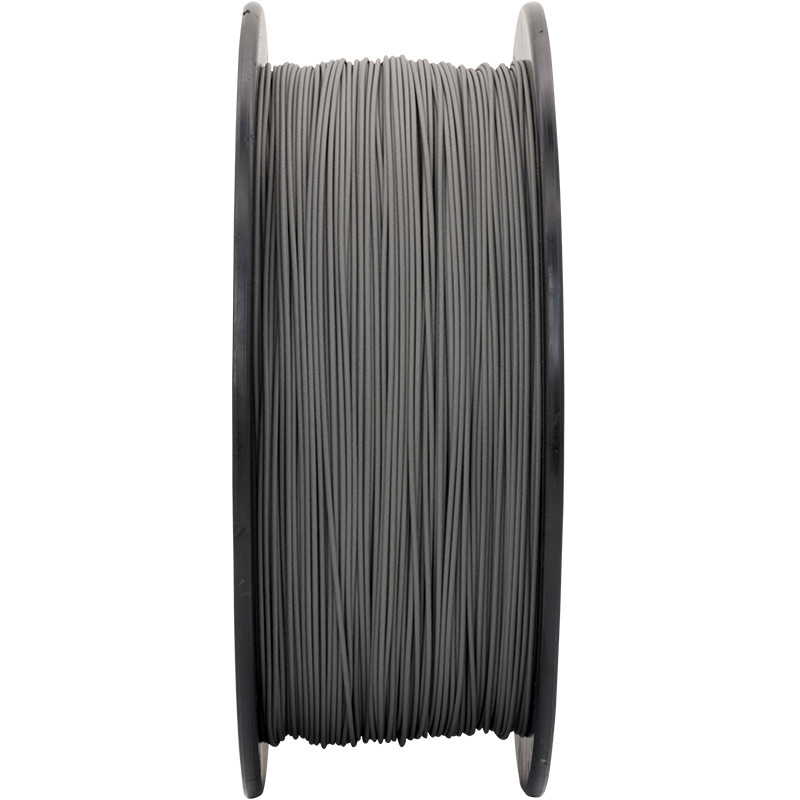

PolyMide PA6-GF Grey - 1.75mm - 2 kg
Ref. PG02003
PolyMide PA6-GF Gray from Polymaker is a PA-6 nylon reinforced with glass fiber that is highly resistant to impacts and heat (191°C). Available in 1.75mm and 2kg versions.
€105.56 excl. VAT
€131.95 excl. VAT
- 20%
Our experts are at your service to answer your questions and provide advice at info@polyfab3d.com.
Delivery within 48/72 hours
Order before 1pm. Same day shipping
Free delivery
Free delivery near you from €69.90
Premium support
Our teams are on hand to answer all your questions
Over 3500 products
A wide choice of products from the biggest brands
Usage of PolyMide PA6-GF Gray 1.75mm - 2kg
The PolyMide PA6-GF Gray 1.75mm developed by Polymaker is a 3D material very strong and impact-resistant.
Also designed to withstand high temperatures (191°C), it allows the production of functional parts such as gears with excellent durability and performance.
This glass fiber reinforced PA6-6 is widely used for 3D printing parts operating in environments where temperatures reach 190°C.
With excellent interlayer adhesion, this premium PA6-GF is easier to print than standard PA6 and maintains high dimensional accuracy.
Thanks to the Warp-Free technology developed by Polymaker, this 3D filament can also be printed without a heated chamber.
PolyMide PA6-GF Gray 1.75mm: Key Features
High temperature resistance: PolyMide PA6-GF Gray from Polymaker offers high thermal resistance (191°C).
Layer adhesion: PolyMide PA6-GF Gray provides excellent interlayer adhesion thanks to a controlled Polyamide matrix dispersion.
High strength: PolyMide PA6-GF is a filament with very high rigidity and durability (Charpy: 16.5 kJ/m2).
Our recommendations for use
3D printing with PolyMide PA6-GF Gray should be done with an extrusion temperature of 280 to 300°C, a heated bed between 25 and 50°C (max), and a print speed of 60 to 70mm/s.
Printing a glass fiber reinforced nylon is abrasive, so using an abrasion-resistant nozzle such as Solex3D with a Ruby nozzle is highly recommended. A standard nozzle can be completely damaged after printing only 100g.
To achieve the maximum properties of your 3D part, baking the part for 2h in an oven is ideal.
Using a dual extrusion 3D printer for printing complex geometries is useful. In this case, a dedicated support material like Polydissolve is recommended.
Finally, we recommend storing the filament in a dedicated box like PolyBox to avoid moisture absorption. If necessary, dry at 80°C for 12 hours in a traditional oven.
This PA6-GF Gray filament is compatible with most 3D printers on the market and is available in 1.75mm and 2.85mm as well as 2kg and 2kg versions.
- 🎯 We collaborate with businesses.
- 📦 Stock in Europe
- 🚚 Ships within 24 hours
- 🔐 Secure payments
- 🔙 14 days to change your deww
- 📱 Need advices ? Contact technical support
Specifications for PolyMide PA6-GF Grey - 1.75mm - 2 kg
Technology / Product
- Technology
- FDM
- Material
- PA
- Visual Appearance
- Opaque, Mat
- Diameter
- 1.75 mm
- Sensitivity to humidity
- Strong
- Application
- Prototyping, Functional part
- Odour
- Yes
- Harmful
- Yes
- Level of difficulty
- Intermediate
- Type of product
- 3D Filament
- Colour
- Grey
- Net weight
- 2 kg
Technical values
- Glass transition temperature
- 70 °C
- Deflection temperature under load (0.45 MPa)
- 191 °C
- Deflection temperature under load (1.8 MPa)
- 157 °C
- Charpy
- 19 kJ/m² of energy
- Resistors
- Mechanical engineering, Wear and tear
- Composite
- Glass fibre
- Percentage of fibre
- 25 %
- Tensile modulus
- 4000 Mpa
- Flexural modulus
- 4000 MPa
- Tensile yield strength
- 70 MPa
- Tensile strength
- 100MPa
- Density
- 1.2 g/cm3
Extrusion
- Nozzle type
- Tempered steel, Ruby
- Type of consumable
- Non-proprietary filament (open system)
- Min. plateau temperature
- 25 °C
- Max. tray temperature
- 50 °C
- Min. extrusion temperature
- 280 °C
- Max. extrusion temperature
- 300 °C
- Min. speed
- 60 mm/s
- Max. speed
- 60 mm/s
- Minimum nozzle diameter
- 0.5 mm
- Bowden compatibility
- Yes
- Warping sensitivity
- Average
- AMS compatible
- Yes (with adapter)
Specific equipment
- Closed printing enclosure
- Yes
- Filtration
- HEPA, Coal
Installation / Prerequisites
- Type
- Filament on spool
- Box supplied
- Yes
- Coil material
- Plastic
