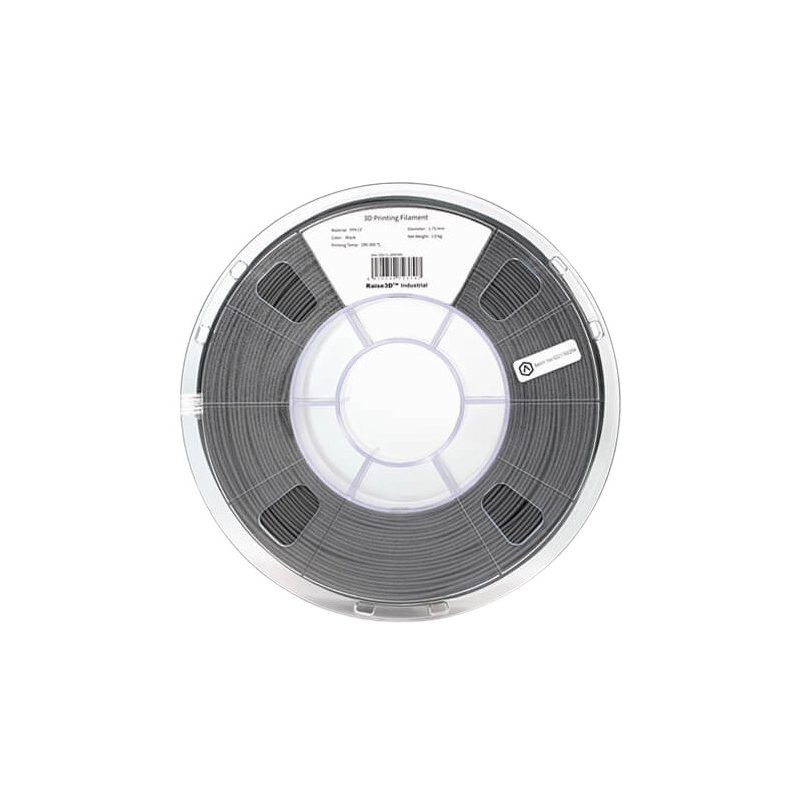

PPA CF Raise3D Industriel - 1.75mm - 1kg

Name: PPA CF Raise3D Industriel - 1.75mm - 1kg
Brand: Raise3D
SKU: [S]5.11.19007A01
Price: 287.99 EUR
Availability: InStock

Ref. [S]5.11.19007A01

The Raise3D Industrial PPA CF is a carbon fiber reinforced composite material based on PPA (polyphthalamide or high-performance/high-temperature nylon).

Thanks to well-controlled dispersion and length distribution of chopped carbon fibers (15% by weight), PPA CF has a lower density.

With low moisture absorption, high strength and stiffness, excellent wear and creep resistance, and outstanding chemical and thermal resistance (188°C), this material is ideal for automotive, aerospace, and electronics sectors.

€239.99 ^{excl. VAT}

In Stock Free shipping

From 2, only €232.79 / unit. 3%

From 5, only €227.99 / unit. 5%

From 10, only €220.79 / unit. 8%

Quantity

Raise3D Industrial PPA CF Filament

The Raise3D Industrial PPA CF filament is a PPA-based (Polyphthalamide or High-Performance Nylon) material reinforced with carbon fiber.

Raise3D Industrial PPA CF is used in advanced sectors where applications require rigidity, chemical and thermal resistance as well as wear resistance.

Less prone to moisture than standard PA, this material offers real added value compared to other fiber-filled nylons and composite nylons.

Using this carbon fiber reinforced PPA also generally results in parts with a better surface finish.

This high-quality Raise3D Industrial PPA CF was specifically designed for the Raise3D E2CF and its IdeaMaker software (profiles available on the Raise3D site), making its use straightforward.

Nevertheless, this material is compatible with other 3D printers that accept 1.75mm diameter filaments.

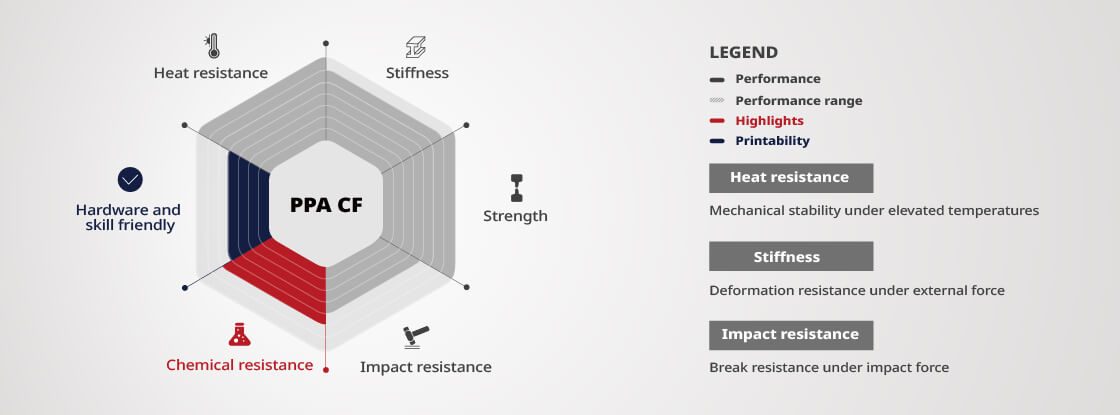

Raise3D Industrial PPA CF: Key Features

Rigidity and strength: This professional-grade material allows for very strong and durable parts.

Thermal performance: This PPA CF material can operate in high-temperature environments, resisting up to 188°C.

Chemical resistance: This high-performance material is also chemically resistant.

Performance-to-weight ratio: With well-controlled fiber positioning, this material provides excellent mechanical properties without adding excessive weight to the part.

PPA CF Raise3D

Usage Recommendations for Raise3D Industrial PPA CF

Although this Raise3D Industrial PPA CF was primarily developed for the brand, it can be used on other open 3D printers that accept 1.75mm filaments.

As with all fiber-filled abrasive materials, using a hardened steel or ruby nozzle is highly recommended.

Also, since this PPA CF is less prone to warping than standard polyamide, using a bed adhesive provides additional comfort and ensures good printing. The Magigoo PA, an adhesive specifically designed for nylons, is recommended by our experts.

The Raise3D Drying Box or another drying solution is essential to dry your material before printing. This high-performance nylon is moisture sensitive, so this step is mandatory.

We recommend setting your printer to an extrusion temperature between 290 and 310°C for optimal printing conditions with Raise3D PPA CF.

An printing speed between 30 and 120mm/s and a heated bed between 65 and 80°C are also recommended.

After printing, a post-bake phase between 80 and 100°C for 8 to 12 hours is recommended.
