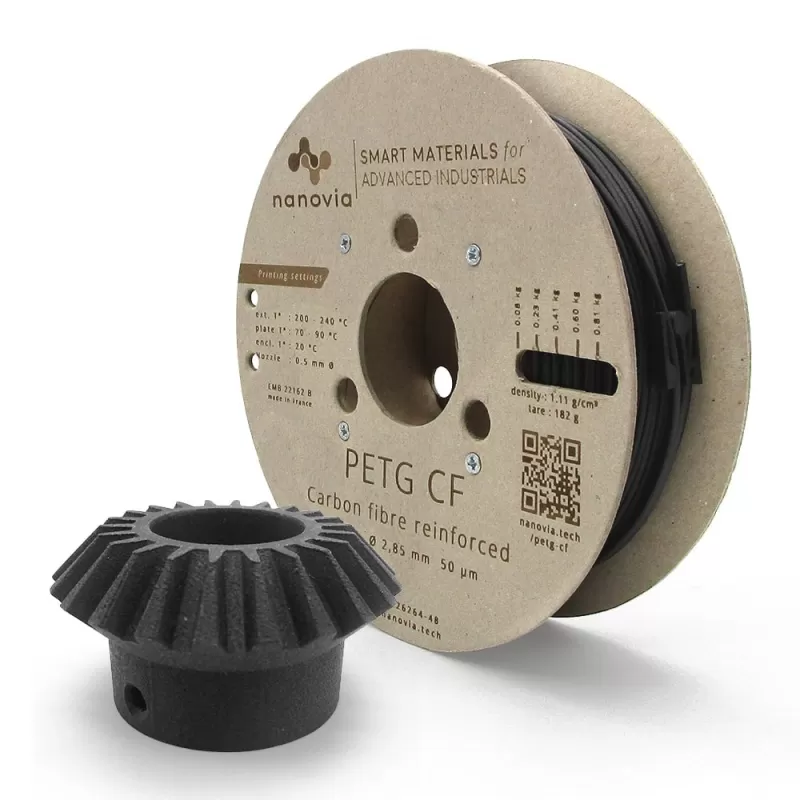

PETg CF Nanovia - 2.85 mm - 500g - bobine

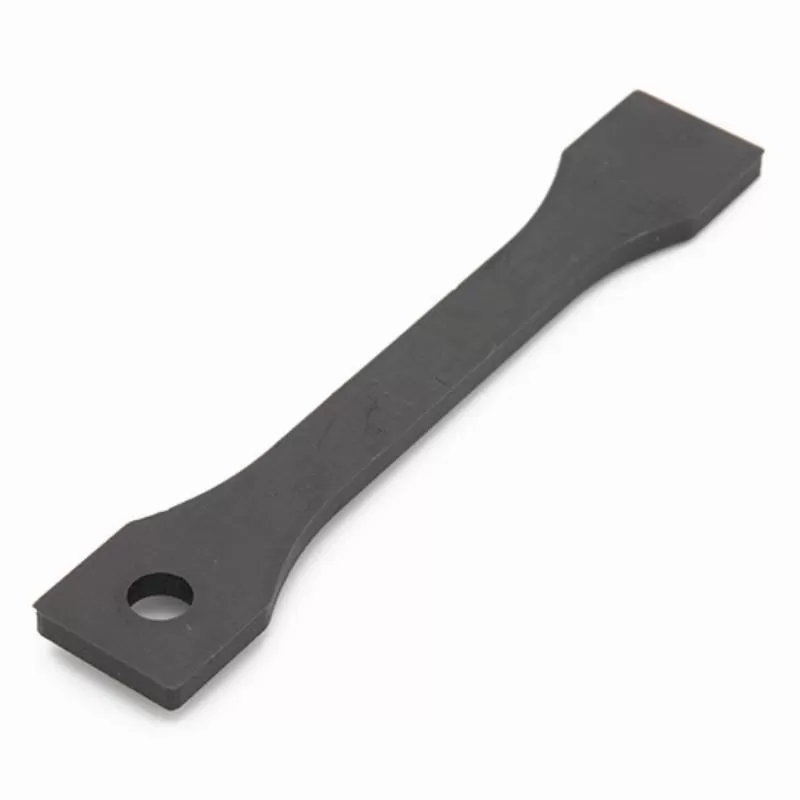

PETg CF Nanovia - 2.85 mm - 500g - éprouvette

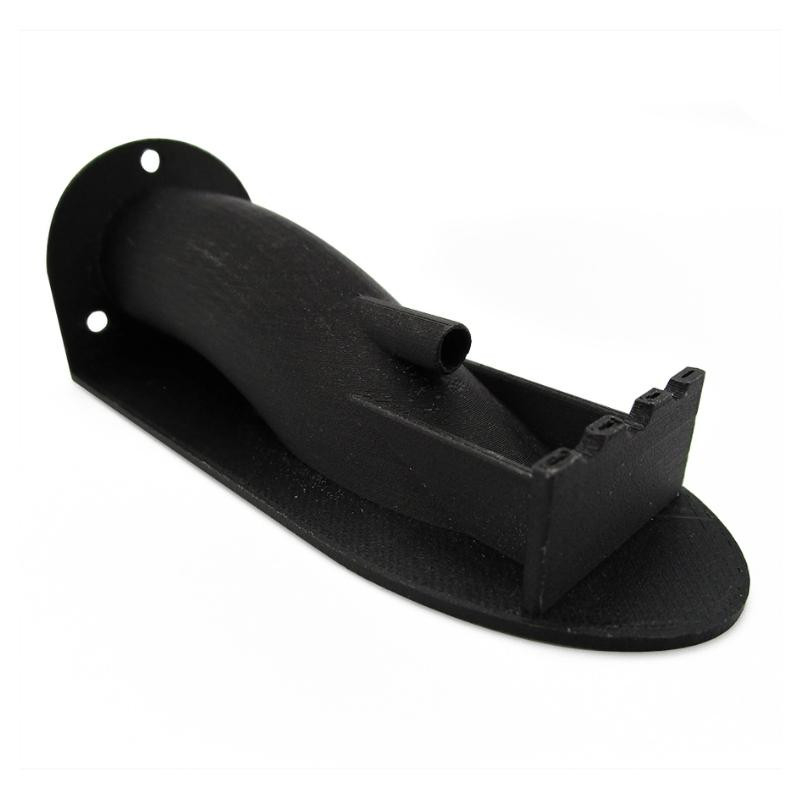

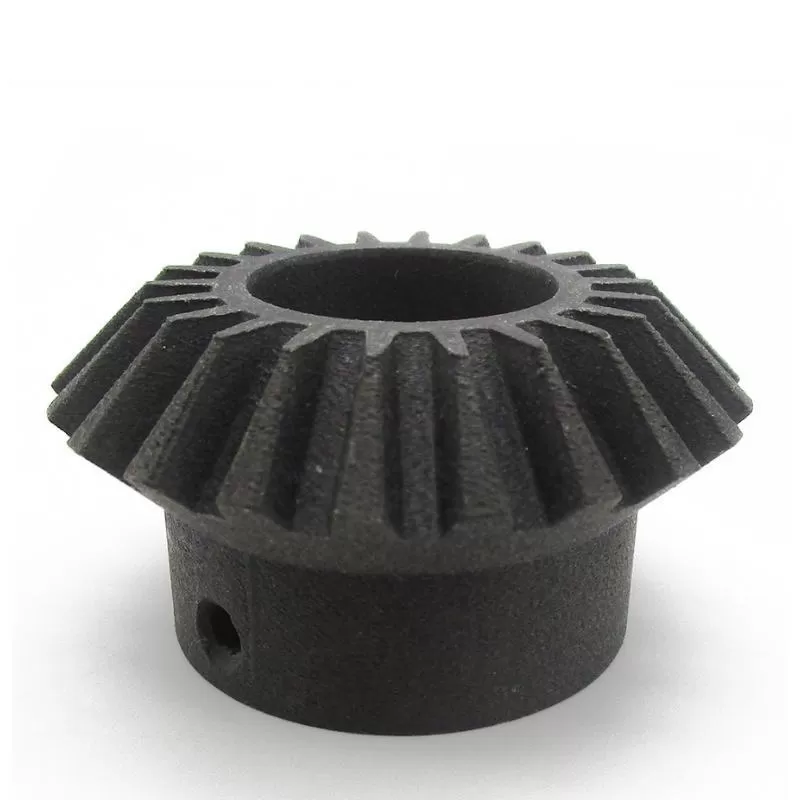

PETg CF Nanovia - 2.85 mm - 500g - pièce 3D

PETG CF Nanovia (reinforced with carbon fiber) - 2.85mm - 500g

Ref. naptgcf2050bk
5.0/5

The Nanovia PETG CF filament is a PETG-based filament reinforced with carbon fiber. It is ideal for producing mechanical and functional parts.

Printable on most FDM 3D printers, it can be used both indoors and outdoors.

€39.10 excl. VAT
Out of stock Free shipping

💰 Your purchases with 0% tax!

From 2, only €37.93 / unit. 3%

From 5, only €37.15 / unit. 5%

From 10, only €35.97 / unit. 8%

Get an instant quote

Our experts are at your service to answer your questions and provide advice at info@polyfab3d.com.

Delivery within 48/72 hours

Order before 1pm. Same day shipping

Free delivery

Free delivery near you from €69.90

Premium support

Our teams are on hand to answer all your questions

Over 3500 products

A wide choice of products from the biggest brands

The Nanovia PETG-CF is a premium 3D filament, made from a blend of PETG and carbon fibers, developed by the French manufacturer Nanovia. This technical material is ideal for printing functional parts requiring excellent mechanical strength, high dimensional stability, and great reliability.

Thanks to the carbon fiber reinforcement, Nanovia's PETG-CF offers a strong, rigid, and highly durable filament, while remaining easy to print even on standard FDM 3D printers.

Main advantages of Nanovia PETG-CF

Optimal dimensional stability: Ensures precise and consistent prints, ideal for industrial applications.

High mechanical resistance: Carbon fibers provide exceptional strength, perfect for structural or technical parts.

Easy to print: Similar to standard PETG, with reduced warping and improved bed adhesion.

Easy post-processing: Can be sanded or machined for refined prototypes or final parts.

Technical characteristics of carbon fibers

  • Median length: 251 μm
  • Fiber diameter: 7 ± 2 μm Fibers > 100 μm: 70%
  • Density: 9×10⁶ units/g of filament

Usage recommendations Warning:

This composite filament is abrasive and can quickly wear out brass nozzles (around 10 hours of printing). Use reinforced nozzles (hardened steel, ruby, etc.) and a minimum diameter of 0.5 mm.

  • 🎯 We collaborate with businesses.
  • 📦 Stock in Europe
  • 🚚 Ships within 24 hours
  • 🔐 Secure payments
  • 🔙 14 days to change your deww
  • 📱 Need advices ? Contact technical support

A question? Need help? Contact us, it's a pleasure to help you.

✉️ Contact us

Our team is available from Monday to Friday, from 10 am to 12 pm and from 2 pm to 5 pm.

Specifications for PETG CF Nanovia (reinforced with carbon fiber) - 2.85mm - 500g

Technology / Product

Technology
FDM
Material
PETG-CF
Visual Appearance
Opaque, Mat, Carbon
Made in France
Yes
Diameter
2.85 mm
Sensitivity to humidity
Low
Application
Aesthetics, Prototyping, Production, Functional part
Odour
Yes
Harmful
Yes
Level of difficulty
Novice
Brand
Nanovia
Type of product
3D Filament
Colour
Black
Net weight
500 g

Technical values

Glass transition temperature
85 °C
Deflection temperature under load (1.8 MPa)
80 °C
Charpy
20 kJ/m² of energy
Resistors
Mechanical engineering, Chemical
Composite
Carbon
Tensile modulus
4700 Mpa
Tensile yield strength
42 MPa
Maximum elongation at break
2 %
Density
1.08 g/cm3

Extrusion

Nozzle type
Steel, Ruby
Type of consumable
Non-proprietary filament (open system)
Min. plateau temperature
80 °C
Max. tray temperature
100 °C
Min. extrusion temperature
200 °C
Max. extrusion temperature
240 °C
Min. speed
20 mm/s
Max. speed
50 mm/s
Minimum nozzle diameter
0.5 mm
Bowden compatibility
Yes
Warping sensitivity
Low
Material Loader
No, Ultimaker Air Manager

Specific equipment

Closed printing enclosure
No
Filtration
HEPA, Coal

Installation / Prerequisites

Type
Filament on spool
Box supplied
Yes
Coil material
Plastic
