PETG GF UV Nanovia (glass fiber reinforced) - 2.85 mm - 500g
Ref. naptggf2050wt
The Nanovia PETG GF filament is a filament made of PETG and reinforced with glass fiber. It is perfect for producing parts for mechanical and functional use. Printable on most FDM 3D printers, it can be used both indoors and outdoors.
By combining glass fibers, anti-UV additives, and PETG, intrinsically resistant to water and temperatures up to 80 °C, Nanovia PETG GF UV is the ideal filament for parts exposed to weather conditions.
Our experts are at your service to answer your questions and provide advice at info@polyfab3d.com.
Delivery within 48/72 hours
Order before 1pm. Same day shipping
Free delivery
Free delivery near you from €69.90
Premium support
Our teams are on hand to answer all your questions
Over 3500 products
A wide choice of products from the biggest brands
Nanovia PETG-GF: High-Quality Filament
This Nanovia PETG GF 3D filament is an alloy of PETG and glass fibers, developed exclusively by the French manufacturer Nanovia. This technical material allows the printing of highly resistant and high-performance parts.
This Nanovia PETG-GF offers a robust, rigid filament that is less brittle than the CF version. Nanovia PETG GF UV does not require a 3D printer with an enclosed/heated chamber, unlike ASA, which is traditionally used for outdoor components.
Ideal for designing technical parts requiring very high mechanical strength. The Nanovia PETG-GF filament is also easily post-processable.
Nanovia PETG-GF: Key Benefits
Dimensional control: This Nanovia PETG-GF 3D filament allows functional parts to be produced with very high dimensional accuracy.
Structural part manufacturing: The high glass fiber content makes this filament very strong. This Nanovia PETG-GF 3D filament will not break and is ideal for functional or structural parts.
Ease of printing: This Nanovia PETG-GF 3D filament prints like standard PETG and is less prone to warping and lifting thanks to the added fibers.
Nanovia PETG-CF Fiber Specifications
- Median length: 251 μm
- Fiber diameter: 7 ± 2 μm
- Fibers > 100 μm: 70%
- Population: 9 × 10⁶ units / g of filament
However, this filled filament will quickly damage brass nozzles (~5h); we recommend using hardened steel nozzles.
A nozzle diameter of at least 0.5mm is also recommended to avoid clogging caused by these glass fibers.
A nozzle diameter of at least 0.5mm is also recommended to avoid clogging caused by these glass fibers.
- 🎯 We collaborate with businesses.
- 📦 Stock in Europe
- 🚚 Ships within 24 hours
- 🔐 Secure payments
- 🔙 14 days to change your deww
- 📱 Need advices ? Contact technical support
Specifications for PETG GF UV Nanovia (glass fiber reinforced) - 2.85 mm - 500g
Technology / Product
- Technology
- FDM
- Material
- PETG
- Visual Appearance
- Opaque, Mat
- Made in France
- Yes
- Diameter
- 2.85 mm
- Sensitivity to humidity
- Low
- Application
- Aesthetics, Prototyping, Production, Functional part
- Odour
- Yes
- Harmful
- Yes
- Level of difficulty
- Novice
- Brand
- Nanovia
- Type of product
- 3D Filament
- Colour
- White
- Net weight
- 500 g
Technical values
- Glass transition temperature
- 85 °C
- Deflection temperature under load (1.8 MPa)
- 80 °C
- Charpy
- 29 kJ/m² of energy
- Resistors
- Mechanical engineering, Chemical
- Composite
- Glass fibre

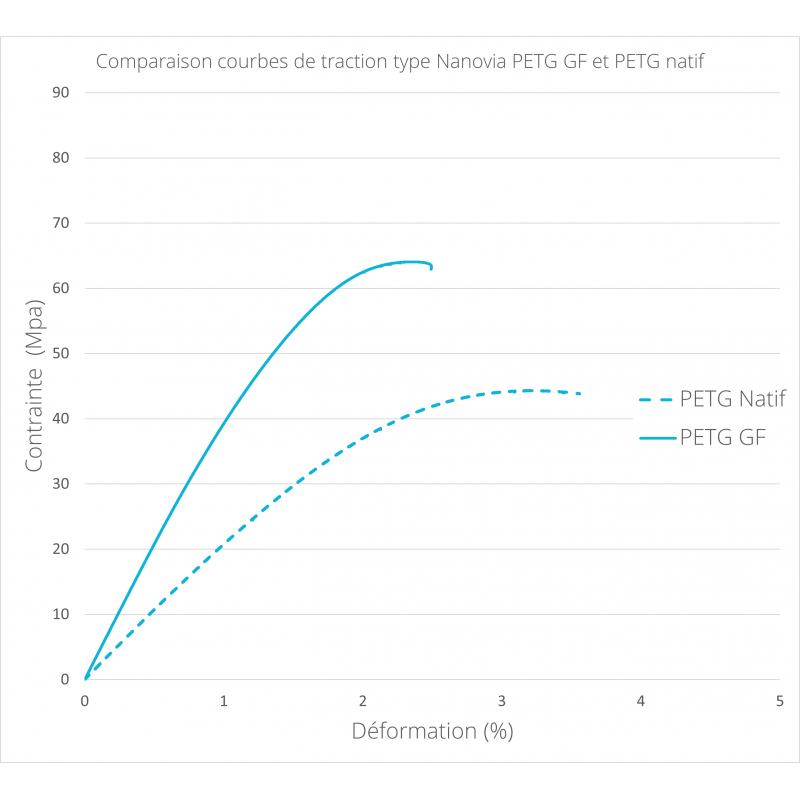

- Tensile modulus
- 4700 Mpa
- Tensile yield strength
- 42 MPa
- Maximum elongation at break
- 2 %
- Density
- 1.08 g/cm3
Extrusion
- Nozzle type
- Steel, Ruby
- Type of consumable
- Non-proprietary filament (open system)
- Min. plateau temperature
- 70 °C
- Max. tray temperature
- 80 °C
- Min. extrusion temperature
- 235 °C
- Max. extrusion temperature
- 245 °C
- Min. speed
- 20 mm/s
- Max. speed
- 50 mm/s
- Minimum nozzle diameter
- 0.5 mm
- Bowden compatibility
- Yes
- Warping sensitivity
- Low
- Material Loader
- No, Ultimaker Air Manager
Specific equipment
- Closed printing enclosure
- No
- Filtration
- HEPA, Coal
Installation / Prerequisites
- Type
- Filament on spool
- Box supplied
- Yes
- Coil material
- Plastic
