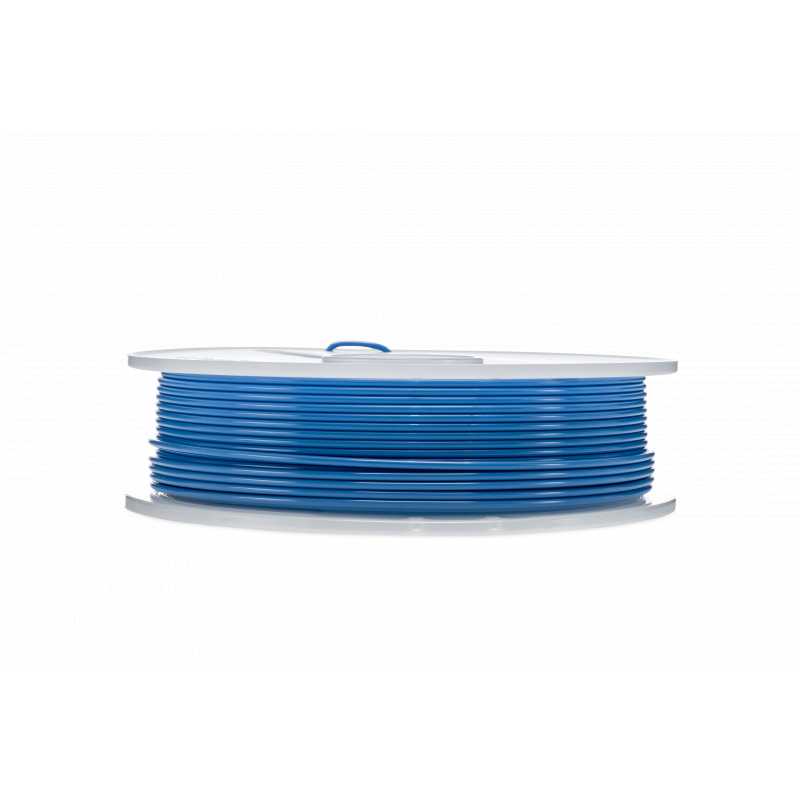

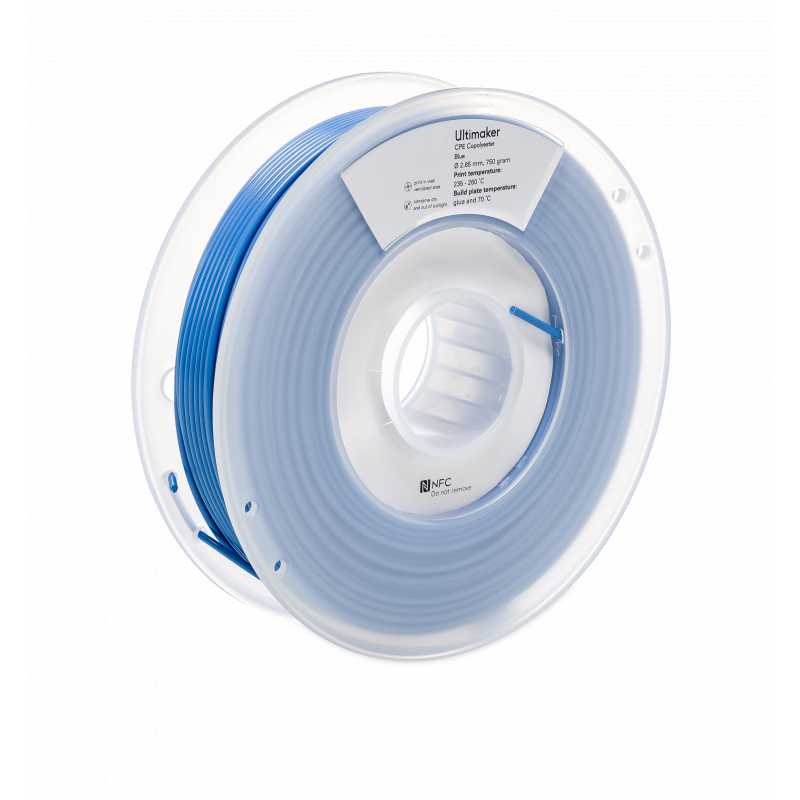

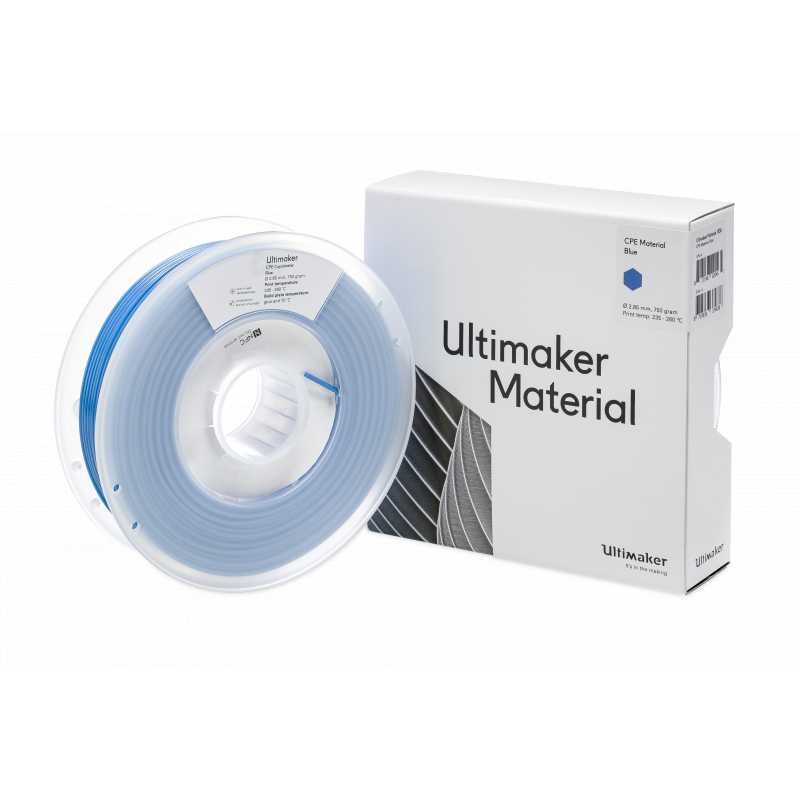

CPE Ultimaker Blue - 2.85mm - 750g

Ref. 1636

The Ultimaker CPE Blue filament (co-polyester) is an ideal choice for 3D printing functional prototypes and mechanical parts. This filament is formulated to ensure chemical resistance, high strength, and reliable dimensional stability.

Equipped with a NFC-compatible chip for your Ultimaker printer, which will automatically recognize this material.

Sold out

The product is no longer available on our website.

Delivery within 48/72 hours

Order before 1pm. Same day shipping

Free delivery

Free delivery near you from €69.90

Premium support

Our teams are on hand to answer all your questions

Over 3500 products

A wide choice of products from the biggest brands

Ultimaker CPE Blue

Ultimaker's CPE material is ideal when producing parts requiring mechanical properties and good chemical resistance while maintaining ease of printing. This Ultimaker CPE Blue filament has high flexural strength (2100 MPa) and tensile strength (38 MPa).

Similar to PET and PETG materials, Ultimaker CPE is ideal for a wide range of applications:

  • Visual and functional prototyping
  • Small series production
  • Custom components
  • Fit testing
  • Tooling

Ultimaker CPE usage and mechanical properties

Key Features of Ultimaker CPE Filament

Excellent chemical resistance: Ultimaker CPE is a perfect choice for custom mechanical parts requiring chemical resistance.

High strength and dimensional stability: Ultimaker CPE is robust and warp-resistant, ideal for functional prototypes undergoing rigorous testing before production.

High impact resistance: Ultimaker CPE can be used in various scenarios depending on performance needs. Print functional prototypes or custom final parts.

Ultimaker CPE Printing Tips

The recommended nozzle temperature for CPE is between 230 and 260°C. Exact temperature per profile can be found in Ultimaker Cura and depends on the printer, nozzle size, and profile selected. Bed temperature also varies slightly by printer and nozzle size, generally between 70 and 85°C. Applying a thin layer of adhesive (like Magigoo Original) is recommended for better adhesion.

Ultimaker CPE Blue comes with optimized settings for Ultimaker hardware, ensuring a smooth printing experience with the Material Station and a safe environment with the Air Manager.
  • 🎯 We collaborate with businesses.
  • 📦 Stock in Europe
  • 🚚 Ships within 24 hours
  • 🔐 Secure payments
  • 🔙 14 days to change your deww
  • 📱 Need advices ? Contact technical support

A question? Need help? Contact us, it's a pleasure to help you.

✉️ Contact us

Our team is available from Monday to Friday, from 10 am to 12 pm and from 2 pm to 5 pm.

Specifications for CPE Ultimaker Blue - 2.85mm - 750g

Technology / Product

Technology
FDM
Material
CPE / CPE+
Visual Appearance
Opaque, Brilliant
Bio-based
No
Diameter
2.85 mm
Sensitivity to humidity
Low
Application
Aesthetics, Prototyping, Production, Large format
Odour
No
Level of difficulty
Novice
Brand
Ultimaker
Type of product
3D Filament
Colour
Blue
Net weight
750 g

Technical values

Glass transition temperature
81 °C
Deflection temperature under load (0.45 MPa)
78 °C
Temperature VICAT
84 °C
Charpy
5.7 kJ/m² of energy
Tensile modulus
1879 Mpa
Tensile yield strength
46 MPa
Maximum elastic elongation
5
Maximum elongation at break
8 %
Density
1.27 g/cm3

Extrusion

Nozzle type
Brass
Type of consumable
Non-proprietary filament (open system)
Min. plateau temperature
70 °C
Max. tray temperature
85 °C
Min. extrusion temperature
230 °C
Max. extrusion temperature
260 °C
Min. speed
40 mm/s
Max. speed
60 mm/s
Minimum nozzle diameter
0.2 mm
Bowden compatibility
Yes
Warping sensitivity
Low
Material Loader
Ultimaker Air Manager

Specific equipment

Closed printing enclosure
No
Filtration
Without

Installation / Prerequisites

Type
Filament on spool
Box supplied
Yes
Coil material
Plastic
