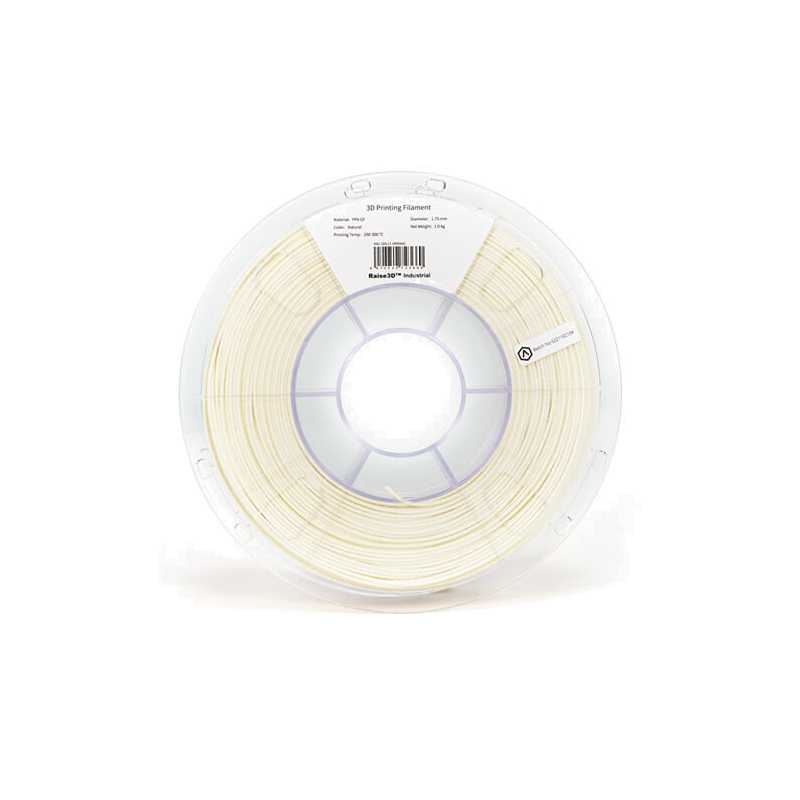

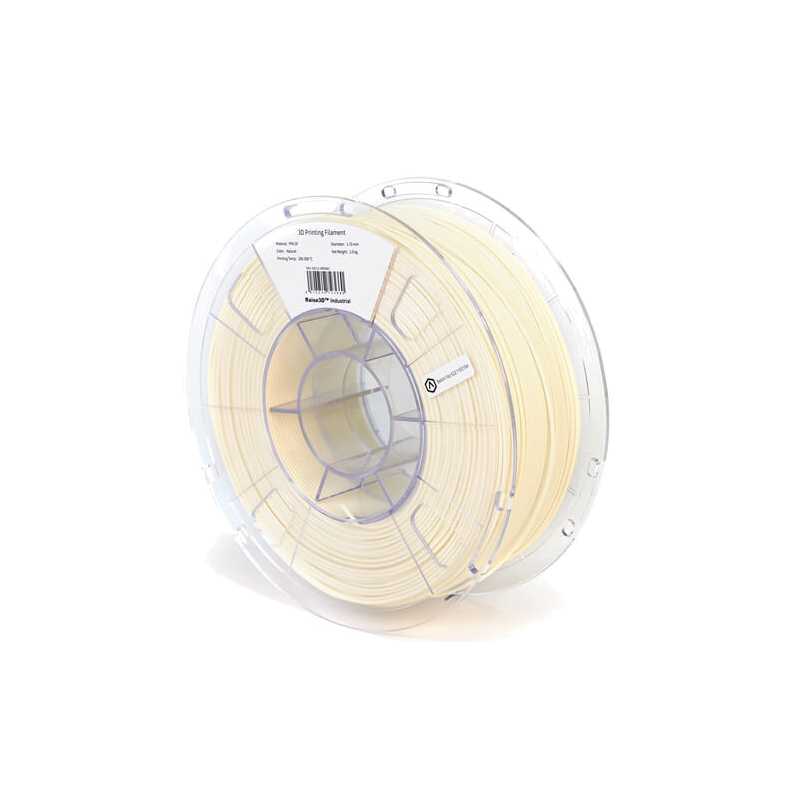

PPA GF Natural Raise3D Industriel - 1.75mm - 1Kg

Ref. [S]5.11.19003A01

The Raise3D Industrial PPA-GF filament is a glass fiber-reinforced composite material based on PPA (polyphthalamide or high-performance/high-temperature nylon).

  • High stiffness and strength
  • Excellent thermal performance
  • Low moisture absorption
  • Dimensional stability
  • Chemical resistance
  • Higher heat deflection temperatures
€219.00 excl. VAT
In Stock Free shipping

From 2, only €212.43 / unit. 3%

From 5, only €208.05 / unit. 5%

From 10, only €201.48 / unit. 8%

You may also like it

Buy essential add-ons to use with this product

3D printing toolkit
3D printing toolkit

€29.90 excl. VAT

Polydryer Polymaker
Polydryer Polymaker

€74.92 excl. VAT

Dimafix Pen (Original Stick) – 90 ml – Bed Adhesive
Dimafix Pen (Original Stick) – 90 ml – Bed Adhesive

€13.25 excl. VAT

Dimafix Spray - 400 ml - Bed Adhesive
Dimafix Spray - 400 ml - Bed Adhesive

€11.66 excl. VAT

Get an instant quote

Our experts are at your service to answer your questions and provide advice at info@polyfab3d.com.

Delivery within 48/72 hours

Order before 1pm. Same day shipping

Free delivery

Free delivery near you from €69.90

Premium support

Our teams are on hand to answer all your questions

Over 3500 products

A wide choice of products from the biggest brands

A high-temperature composite filament for end-use applications

PPA differs from aliphatic polyamides (e.g., PA6) by its higher melting point and glass transition temperatures (Tg), lower moisture absorption, and greater dimensional stability. The incorporation of short glass fibers further enhances the PPA matrix properties, making PPA-GF printed parts ideal for end-use applications in automotive, aerospace, electrical, and electronics sectors.

This filament is compatible with the Raise3D Industrial PPA support filament.

Raise3D Industrial Natural PPA-GF: Key Benefits

PPA-GF Raise3D

Usage recommendations for Raise3D Natural PPA-GF

Although this Natural PPA-GF was primarily developed for the Raise3D E2CF, it can be used on other open 3D printers compatible with 1.75mm filaments.

We recommend setting your printer to an extrusion temperature between 280 and 320°C for optimal printing with Raise3D PPA-GF.

An printing speed between 30 and 120mm/s and a heated bed between 65 and 80°C are also recommended.

  • 🎯 We collaborate with businesses.
  • 📦 Stock in Europe
  • 🚚 Ships within 24 hours
  • 🔐 Secure payments
  • 🔙 14 days to change your deww
  • 📱 Need advices ? Contact technical support

A question? Need help? Contact us, it's a pleasure to help you.

✉️ Contact us

Our team is available from Monday to Friday, from 10 am to 12 pm and from 2 pm to 5 pm.

Specifications for PPA GF Natural Raise3D Industriel - 1.75mm - 1Kg

Technology / Product

Technology
FDM
Material
PA
Bio-based
No
Sensitivity to humidity
Low
Application
Prototyping, Production, Functional part
Odour
No
Harmful
Yes
Level of difficulty
Intermediate
Type of product
3D Filament
Colour
Natural
Net weight
1 kg

Technical values

Glass transition temperature
140 °C
Tensile modulus
4700 Mpa
Flexural modulus
4000 MPa
Maximum elastic elongation
2.1 %

Extrusion

Filament diameter
1.75 mm
Nozzle type
Tempered steel, Ruby
Type of consumable
Non-proprietary filament (open system)
Min. plateau temperature
65 °C
Max. tray temperature
80 °C
Min. extrusion temperature
280 °C
Max. extrusion temperature
310 °C
Min. speed
35 mm/s
Max. speed
120 mm/s
Minimum nozzle diameter
0.4 mm
Bowden compatibility
Yes
Warping sensitivity
Average
AMS compatible
No

Specific equipment

Closed printing enclosure
Yes
Filtration
Yes

Installation / Prerequisites

Type
Filament on spool
Coil material
Plastic
