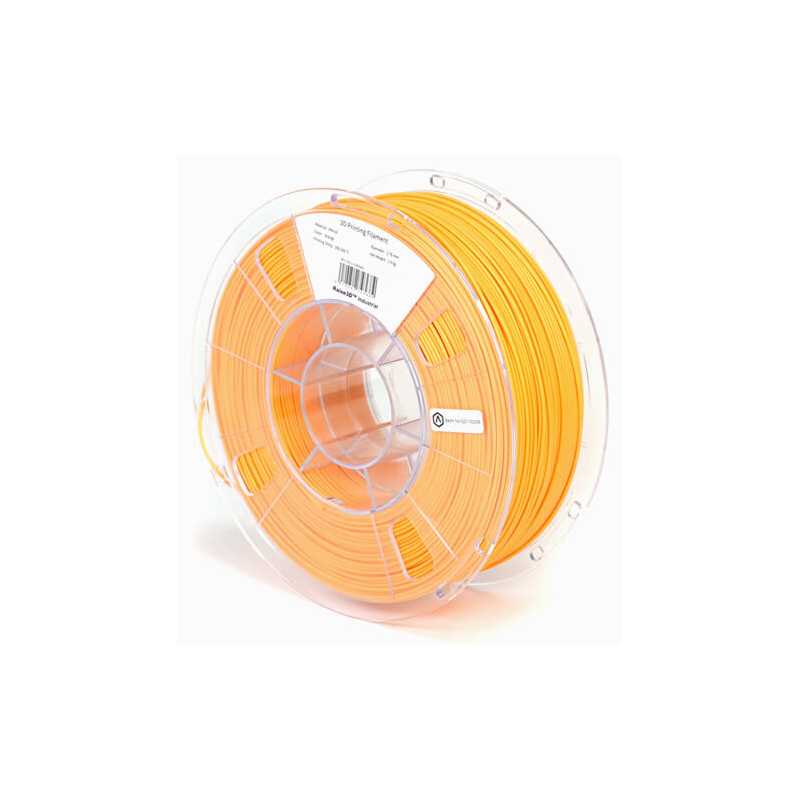

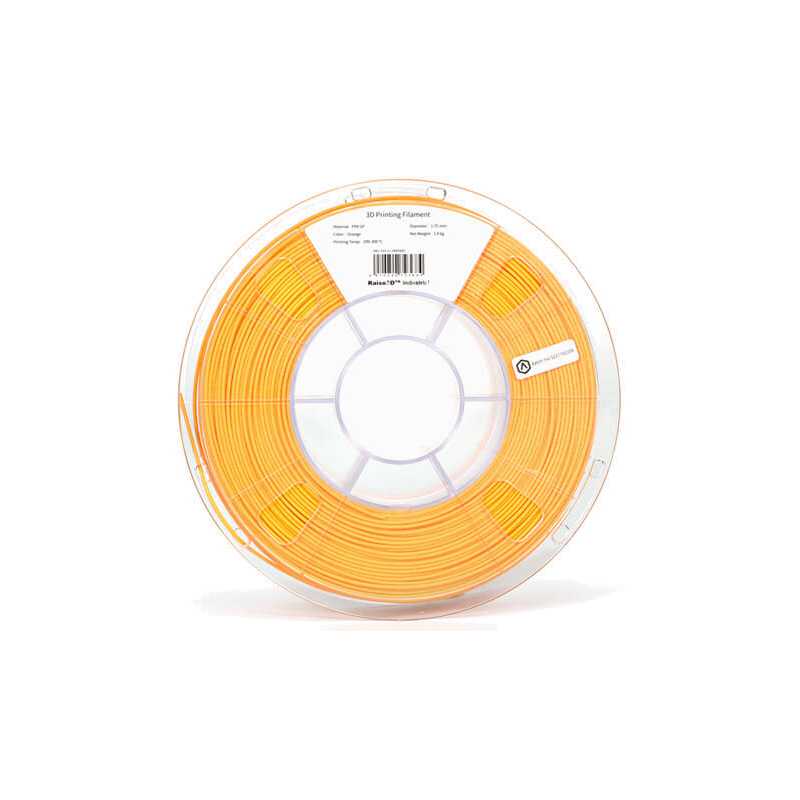

PPA GF Orange Raise3D Industriel - 1.75mm - 1Kg
Ref. [S]5.11.19005A01
The Raise3D Industrial PPA-GF filament is a glass fiber-reinforced composite material based on PPA (polyphthalamide or high-performance/high-temperature nylon).
- High stiffness and strength
- Excellent thermal performance
- Low moisture absorption
- Dimensional stability
- Chemical resistance
- Higher heat deflection temperatures
€219.00 excl. VAT
Our experts are at your service to answer your questions and provide advice at info@polyfab3d.com.
Delivery within 48/72 hours
Order before 1pm. Same day shipping
Free delivery
Free delivery near you from €69.90
Premium support
Our teams are on hand to answer all your questions
Over 3500 products
A wide choice of products from the biggest brands
A high-temperature composite filament for end-use applications
PPA differs from aliphatic polyamides (e.g., PA6) by its higher melting point and glass transition temperatures (Tg), lower moisture absorption, and greater dimensional stability. The incorporation of short glass fibers further enhances the PPA matrix properties, making PPA-GF printed parts ideal for end-use applications in automotive, aerospace, electrical, and electronics sectors.
This filament is compatible with the Raise3D Industrial PPA support filament.
Raise3D Industrial Orange PPA-GF: Key Benefits
Usage recommendations for Raise3D Orange PPA-GF
Although this Orange PPA-GF was primarily developed for the Raise3D E2CF, it can be used on other open 3D printers compatible with 1.75mm filaments.
We recommend setting your printer to an extrusion temperature between 280 and 320°C for optimal printing with Raise3D PPA-GF.
An printing speed between 30 and 120mm/s and a heated bed between 65 and 80°C are also recommended.
- 🎯 We collaborate with businesses.
- 📦 Stock in Europe
- 🚚 Ships within 24 hours
- 🔐 Secure payments
- 🔙 14 days to change your deww
- 📱 Need advices ? Contact technical support
Specifications for PPA GF Orange Raise3D Industriel - 1.75mm - 1Kg
Technology / Product
- Technology
- FDM
- Material
- PA
- Bio-based
- No
- Sensitivity to humidity
- Low
- Application
- Prototyping, Production, Functional part
- Odour
- No
- Harmful
- Yes
- Level of difficulty
- Intermediate
- Type of product
- 3D Filament
- Colour
- Orange
- Net weight
- 1 kg
Technical values
- Glass transition temperature
- 140 °C
- Tensile modulus
- 4700 Mpa
- Flexural modulus
- 4000 MPa
- Maximum elastic elongation
- 2.1 %
Extrusion
- Filament diameter
- 1.75 mm
- Nozzle type
- Tempered steel, Ruby
- Type of consumable
- Non-proprietary filament (open system)
- Min. plateau temperature
- 65 °C
- Max. tray temperature
- 80 °C
- Min. extrusion temperature
- 280 °C
- Max. extrusion temperature
- 310 °C
- Min. speed
- 35 mm/s
- Max. speed
- 120 mm/s
- Minimum nozzle diameter
- 0.4 mm
- Bowden compatibility
- Yes
- Warping sensitivity
- Average
- AMS compatible
- No
Specific equipment
- Closed printing enclosure
- Yes
- Filtration
- Yes
Installation / Prerequisites
- Type
- Filament on spool
- Coil material
- Plastic
Spare part
- Compatible printers
- Raise3D E2CF
- Also find this product PPA GF Orange Raise3D Industriel - 1.75mm - 1Kg in these categories:
- 3D Filament
- Nylon
- Nylon composites
- Composite filaments
- Mechanical use
- Glass fiber filament
- 1.75 mm
- Raise 3D
- Raise3D Filament
